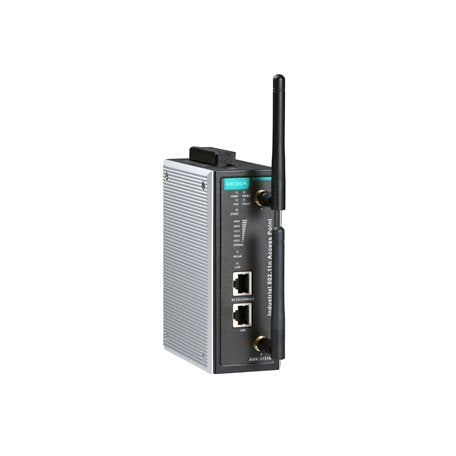

Moxa AWK-3131A-EU-T | AWK-3131A Industrial Wi-Fi 4 Access Point, EU Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-3131A-EU-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3131A-EU-T is an industrial IEEE 802.11a/b/g/n (Wi-Fi 4) access point, bridge and client for the EU band. This -T model is rated for -40 to 75°C operation, making it suited to harsh industrial environments such as factory floors, transport systems and outdoor cabinets. It provides data rates up to 300 Mbps and supports up to 60 concurrent clients.

Built for reliable deployment, the AWK-3131A-EU-T features redundant dual 12-48 VDC inputs, a Gigabit PoE-capable RJ45 port, IP30 DIN-rail housing and hazardous location certifications including Class I Div. II and ATEX Zone 2. Turbo Roaming, AeroLink Protection and AeroMag simplify roaming, link redundancy and setup in mission-critical wireless networks.

Features

- 3-in-1 operation: access point, bridge or client
- AeroMag for easy setup and deployment
- Client-based Turbo Roaming for millisecond-level roaming recovery
- AeroLink Protection for redundant wireless links between APs and clients
- Network Address Translation (NAT) support
- Integrated antenna and power isolation with 500 V insulation protection
- 5 GHz DFS channel support
- Up to 1 km line of sight on 5 GHz with an external high-gain antenna

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WLAN standards: IEEE 802.11a/b/g/n, 802.11i wireless security
- Data rates: 802.11b 1-11 Mbps; 802.11a/g 6-54 Mbps; 802.11n 6.5-300 Mbps
- EU band: 2.412-2.472 GHz (13 channels) and 5 GHz channels with DFS support
- 1 x 10/100/1000BaseT(X) RJ45 port with PoE
- Supply voltage: 12-48 VDC, redundant dual DC inputs (10-contact removable terminal block)
- 2 digital inputs and 1 digital output (relay)
- RS-232 console port (8-pin RJ45)
- Operating temperature: -40 to 75°C (-T model)
- IP30 rated, DIN-rail mounting (also wall mount)
- RP-SMA female antenna connectors
- Hazardous location certifications: Class I Div. II and ATEX Zone 2
- Supports up to 60 concurrent clients

FAQs

Q: What does the -T suffix mean on the AWK-3131A-EU-T?
A: The -T suffix denotes the wide-temperature model, rated for operation from -40 to 75°C, suited to harsh industrial environments.

Q: Which wireless standards does the AWK-3131A-EU-T support?
A: It supports IEEE 802.11a/b/g/n with data rates up to 300 Mbps, and 802.11i wireless security.

Q: Can it operate as a client or bridge as well as an access point?
A: Yes. It is a 3-in-1 device that can be configured as an access point, bridge or client.

Q: How is the AWK-3131A-EU-T powered?
A: It accepts 12-48 VDC through redundant dual DC inputs on a removable terminal block, and its Gigabit RJ45 port supports PoE.

Q: Does it carry hazardous location certifications?
A: Yes. It is certified for Class I Div. II and ATEX Zone 2 hazardous locations.

Q: How is the unit mounted and what antenna connectors does it use?
A: It is IP30 rated with DIN-rail mounting, and wall mounting is also supported. Antennas connect via RP-SMA female connectors.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
