Moxa AWK-3131A-EU | AWK-3131A Industrial Wi-Fi 4 Access Point, 802.11a/b/g/n, EU, -25 to 60C

Authorised Moxa Partner

SKU:AWK-3131A-EU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

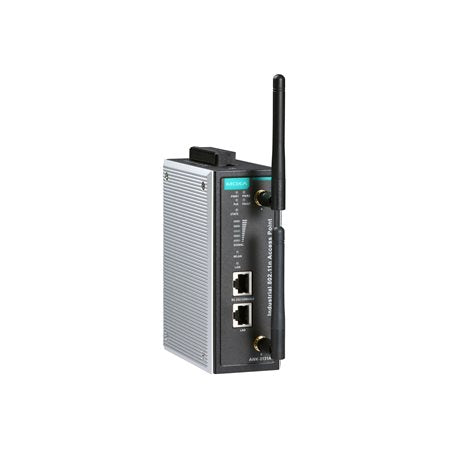

The Moxa AWK-3131A-EU is an industrial 802.11a/b/g/n access point, bridge and client for the EU frequency band, delivering up to 300 Mbps on 2.4 GHz or 5 GHz. Built for demanding sites, it carries a standard -25 to 60°C operating range, an IP30 metal housing and DIN-rail mounting, making it well suited to factory floors, transport and other industrial wireless deployments.

Power flexibility is built in, with redundant 12 to 48 VDC dual inputs or 48 VDC Power-over-Ethernet. It supports Access point, Client, Client-Router, Master, Slave and Sniffer modes, along with millisecond-level Turbo Roaming, NAT for simple network setup, 5 GHz DFS channels and integrated antenna and power isolation. Two RP-SMA antenna connectors accept the supplied 2/2 dBi omni-directional antennas.

Features

- Access point, Client, Client-Router, Master, Slave and Sniffer operation modes
- Millisecond-level client-based Turbo Roaming
- Easy network setup with Network Address Translation (NAT)
- Integrated antenna and power isolation
- 5 GHz DFS channel support
- Two redundant DC power inputs plus PoE power option
- Reverse polarity protection
- Complies with industrial standards covering operating temperature, power input voltage, surge, ESD and vibration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n, up to 300 Mbps, 2.4 GHz and 5 GHz
- EU frequency band
- Operating temperature -25 to 60°C
- 2 x RP-SMA female antenna connectors with external 2/2 dBi omni-directional antennas
- Transmitter power EU: 18 dBm (2.4 GHz), 21 dBm (5 GHz UNII-1 and UNII-2), 23 dBm (5 GHz UNII-2e)
- 10/100BaseT(X) Ethernet port
- RS-232 console port (8-pin RJ45)
- Input voltage 12 to 48 VDC redundant dual inputs, or 48 VDC PoE
- Power consumption 7.2 W (max.)
- 2 digital inputs
- IP30 metal housing
- DIN-rail mounting, wall mounting with optional kit
- Weight 860 g

FAQs

Q: Which frequency bands does the AWK-3131A-EU support?
A: It supports IEEE 802.11a/b/g/n on both 2.4 GHz and 5 GHz, with EU band channels including 5 GHz DFS channels, at up to 300 Mbps.

Q: How can the AWK-3131A-EU be powered?
A: It accepts 12 to 48 VDC through redundant dual inputs on a removable terminal block, or 48 VDC Power-over-Ethernet.

Q: What operating temperature range does this model cover?
A: The AWK-3131A-EU is rated for -25 to 60°C operation.

Q: Which operation modes are available?
A: It can operate as an Access point, Client, Client-Router, Master, Slave or Sniffer.

Q: How is the AWK-3131A-EU mounted?
A: It has an IP30 metal housing with DIN-rail mounting as standard, and wall mounting is available with an optional kit.

Q: What antennas does it use?
A: It has two RP-SMA female connectors fitted with external 2/2 dBi omni-directional antennas.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
