Moxa AWK-1165C-UN-T | AWK-1165C Wi-Fi 6 Industrial Wireless Client, 5-Port Gigabit, UN Band, -40 to

Authorised Moxa Partner

SKU:AWK-1165C-UN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

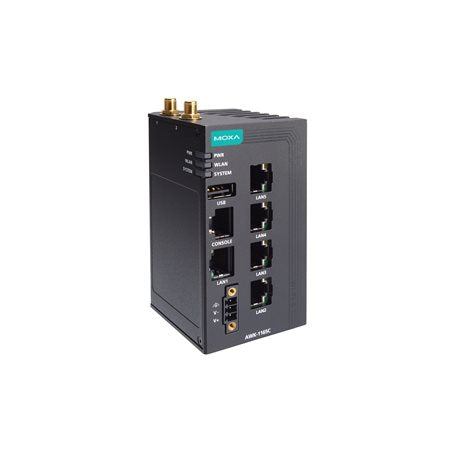

The Moxa AWK-1165C-UN-T is an industrial IEEE 802.11ax (Wi-Fi 6) wireless client with five 10/100/1000BaseT(X) Ethernet ports and selectable 2.4 GHz or 5 GHz dual-band operation. It is built for connecting industrial machines, control cabinets and automation equipment to a wireless network, with data rates up to 1,201 Mbps. This UN Band model supports configurable country and region codes, and the -T variant is rated for wide-temperature operation from -40 to 75°C.

Housed in a compact IP30 metal enclosure measuring 60 x 100 x 53 mm, the AWK-1165C-UN-T mounts on a DIN rail with optional wall mounting. WPA3 encryption, NAT, millisecond-level Client-based Turbo Roaming and built-in band pass filters help maintain secure, reliable connections in demanding industrial environments.

Features

- High-speed IEEE 802.11ax Wi-Fi for industrial applications
- WPA3 encryption for enhanced wireless security
- Network Address Translation (NAT) for easy network setup
- Millisecond-level Client-based Turbo Roaming
- Built-in 2.4 GHz and 5 GHz band pass filters for reliable connections
- Integrated antenna isolation
- Compact form factor suited to industrial machines and control cabinets

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11ax (Wi-Fi 6) wireless client
- Selectable 2.4 GHz / 5 GHz dual-band operation
- Data rates up to 1,201 Mbps
- 5 x 10/100/1000BaseT(X) Ethernet ports
- UN (Universal) band model with configurable country/region code
- IP30 metal housing
- Dimensions: 60 x 100 x 53 mm
- Weight: approx. 428.5 g
- Operating temperature: -40 to 75°C (-T model)
- DIN-rail mounting, optional wall mounting

FAQs

Q: What is the Moxa AWK-1165C-UN-T used for?
A: It is an industrial Wi-Fi 6 wireless client that connects wired Ethernet devices, such as machines, controllers and equipment in control cabinets, to a wireless network.

Q: What does the -T suffix mean on this model?
A: The -T suffix indicates the wide-temperature variant, rated for operation from -40 to 75°C.

Q: What does UN Band mean?
A: The UN (Universal) band model supports configurable country and region codes, allowing the radio to be set for the region where it is deployed.

Q: Which Wi-Fi bands does it support?
A: It supports IEEE 802.11ax with selectable 2.4 GHz or 5 GHz dual-band operation, with data rates up to 1,201 Mbps.

Q: How many Ethernet ports does it have?
A: It has five 10/100/1000BaseT(X) Gigabit Ethernet ports.

Q: How is the AWK-1165C-UN-T mounted?
A: It mounts on a DIN rail, with optional wall mounting. The IP30 metal housing measures 60 x 100 x 53 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
