Moxa AWK-1165C-UN | AWK-1165C Industrial Wi-Fi 6 Wireless Client, UN Band, 5-Port Gigabit

Authorised Moxa Partner

SKU:AWK-1165C-UN

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-1165C-UN is an industrial Wi-Fi 6 (802.11ax) wireless client with five Gigabit Ethernet ports, built for connecting wired industrial equipment to a wireless network. This UN band model supports selectable 2.4 GHz or 5 GHz operation with data rates up to 1,201 Mbps and a configurable country or region code, and it is rated for the standard -25 to 60°C operating temperature range.

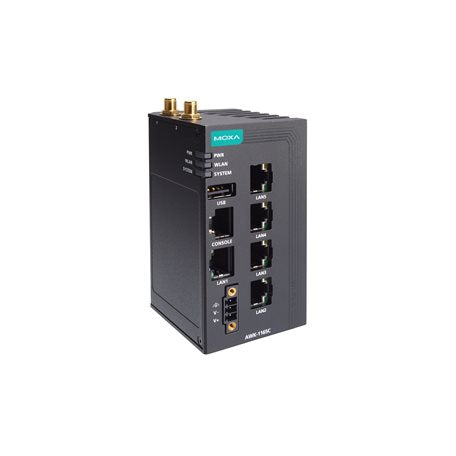

Housed in a compact IP30 metal case for DIN-rail or wall mounting, it supports Client, Client-Router, Slave and Sniffer operation modes. Features such as millisecond-level Turbo Roaming, WPA3 security, OFDMA and an integrated band pass filter help maintain reliable connections for mobile and fixed machinery in factories, warehouses and transport applications.

Features

- High-speed IEEE 802.11ax Wi-Fi
- WPA3 encryption for wireless security
- Network Address Translation (NAT) for easy network setup
- Millisecond-level client-based Turbo Roaming
- Built-in 2.4 GHz and 5 GHz band pass filter for more reliable connections
- Wi-Fi 6 OFDMA for concurrent communication with multiple clients
- Wi-Fi 6 TWT (Target Wake Time) for better scheduling
- Integrated antenna isolation
- DIN-rail mounting, with optional wall mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11ax (Wi-Fi 6), backwards compatible with 802.11a/b/g/n/ac
- Selectable dual-band 2.4 GHz / 5 GHz, data rates up to 1,201 Mbps
- 5 x 10/100/1000BaseT(X) Ethernet ports
- UN band with configurable country/region code
- 2.4 GHz: 20/40 MHz channels; 5 GHz: 20/40/80 MHz channels, 1024 QAM
- DFS channel support on 5 GHz
- Operating temperature -25 to 60°C
- IP30 rated metal housing
- Dimensions 60 x 100 x 66 mm
- Weight 516.5 g
- WLAN operation modes: Client, Client-Router, Slave, Sniffer

FAQs

Q: What does the UN band designation mean on the AWK-1165C-UN?
A: UN is the universal band model. It supports operation on either 2.4 GHz or 5 GHz and uses a configurable country or region code to set the permitted channels.

Q: What operating temperature range does this model support?
A: The AWK-1165C-UN is the standard temperature variant, rated for operation from -25 to 60°C.

Q: What WLAN operation modes are supported?
A: It supports Client, Client-Router, Slave and Sniffer modes.

Q: How many Ethernet ports does it have and at what speed?
A: It provides five 10/100/1000BaseT(X) Gigabit Ethernet ports for connecting wired devices.

Q: How is the AWK-1165C-UN mounted?
A: It is installed on a DIN-rail, with optional wall mounting. The IP30 metal housing measures 60 x 100 x 66 mm.

Q: Does it support DFS channels?
A: Yes, DFS channel support is available on the 5 GHz band.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
