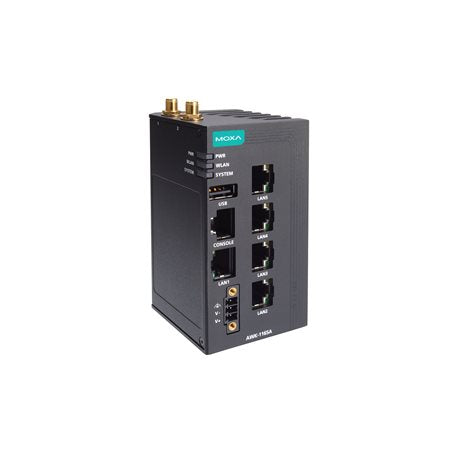

Moxa AWK-1165A-UN-T | AWK-1165A Industrial Wi-Fi 6 Access Point, UN Band, -40 to 75°C

Authorised Moxa Partner

SKU:AWK-1165A-UN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-1165A-UN-T is an industrial Wi-Fi 6 (IEEE 802.11ax) wireless access point with five 10/100/1000BaseT(X) Gigabit Ethernet ports in an IP30 housing. This UN (universal) band wide-temperature model operates from -40 to 75°C, making it suited to factory floors, outdoor cabinets and other harsh industrial environments where reliable wireless coverage is required.

Selectable 2.4 GHz or 5 GHz operation delivers data rates up to 573.5 Mbps on 2.4 GHz and 1,201 Mbps on 5 GHz, with 1024 QAM support and WPA3 encryption for secure connectivity. The country or region code is configurable, giving flexibility for deployments across different regulatory domains, and the unit supports Access Point, Master and Sniffer operation modes.

Features

- High-speed IEEE 802.11ax Wi-Fi
- WPA3 encryption for enhanced wireless network security
- Wi-Fi 6 OFDMA enables concurrent communication with multiple clients
- DFS channel support for a wider range of 5 GHz channel selection
- Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
- Integrated antenna isolation for protection against external electrical interference
- Universal (UN) model with configurable country or region code for flexible deployment
- Wide -40 to 75°C operating temperature for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11ax (Wi-Fi 6), backwards compatible with 802.11a/b/g/n/ac
- Selectable 2.4 GHz or 5 GHz dual-band operation
- Data rates up to 573.5 Mbps (2.4 GHz) and 1,201 Mbps (5 GHz)
- 2.4 GHz: 1024 QAM, 20/40 MHz channels
- 5 GHz: 1024 QAM, 20/40/80 MHz channels
- 5 x 10/100/1000BaseT(X) Ethernet ports
- UN (universal) band with configurable country or region code
- Operation modes: Access Point, Master and Sniffer
- IP30 rated housing
- Operating temperature -40 to 75°C (-T model)
- Set transmit power to 21 dBm when ambient temperature exceeds 65°C
- WPA3 encryption support
- Certifications include CE, FCC, UL Listed and E-mark E1

FAQs

Q: What does the UN band designation mean on the AWK-1165A-UN-T?
A: UN stands for universal band. The country or region code is configurable, so the same model can be deployed across different regulatory domains.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C. Transmit power should be set to 21 dBm when the ambient temperature exceeds 65°C.

Q: Which Wi-Fi bands and speeds does it support?
A: It supports selectable 2.4 GHz or 5 GHz operation under IEEE 802.11ax, with data rates up to 573.5 Mbps on 2.4 GHz and 1,201 Mbps on 5 GHz.

Q: How many Ethernet ports does it have?
A: It has five 10/100/1000BaseT(X) Gigabit Ethernet ports.

Q: Which operation modes are supported?
A: The AWK-1165A-UN-T supports Access Point, Master and Sniffer operation modes.

Q: What wireless security does it support?
A: It supports WPA3 encryption for enhanced wireless network security.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
