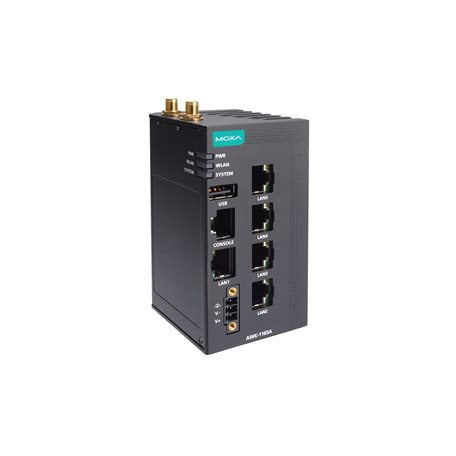

Moxa AWK-1165A-UN | AWK-1165A Industrial Wi-Fi 6 AP, 5-Port Gigabit, UN, -25 to 60°C

Authorised Moxa Partner

SKU:AWK-1165A-UN

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-1165A-UN is an industrial Wi-Fi 6 (802.11ax) wireless access point with five 10/100/1000BaseT(X) Ethernet ports, built for factory floors, warehouses and other demanding sites. This UN (Universal) model supports a configurable country/region code and is rated for -25 to 60°C operation, with selectable dual-band 2.4 GHz and 5 GHz radios delivering data rates up to 1,201 Mbps.

Housed in a compact IP30 metal enclosure measuring 60 x 100 x 53 mm, the AWK-1165A-UN uses OFDMA and Spatial Reuse to serve multiple clients in high-density environments, and supports WPA3 encryption and DFS channels in AP mode. It remains backwards compatible with Wi-Fi 4 and Wi-Fi 5 clients, making it a practical upgrade for existing industrial wireless networks.

Features

- Wi-Fi 6 OFDMA and Spatial Reuse for multi-client communication in high-density environments
- WPA3 encryption for enhanced wireless security
- Backwards compatible with Wi-Fi 4 and Wi-Fi 5 clients
- Universal (UN) model with configurable country/region code for flexible deployment
- WMM for QoS
- Five Ethernet ports for simplified network integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11ax (Wi-Fi 6), selectable dual-band 2.4 GHz / 5 GHz
- Data rates up to 1,201 Mbps
- 5 x 10/100/1000BaseT(X) Ethernet ports
- 2.4 GHz: 802.11ax, 1024 QAM, 20/40 MHz channel widths
- 5 GHz: 802.11ax, 1024 QAM, 20/40/80 MHz channel widths
- UN (Universal) band with configurable country/region code
- DFS channel support in AP mode
- IP30 rated metal housing
- Dimensions: 60 x 100 x 53 mm
- Operating temperature: -25 to 60°C

FAQs

Q: What does the UN designation mean on the AWK-1165A-UN?
A: UN stands for Universal. This model has a configurable country/region code, so the same unit can be set up for different regulatory regions.

Q: Which Wi-Fi standards and bands does the AWK-1165A-UN support?
A: It supports IEEE 802.11ax (Wi-Fi 6) on selectable 2.4 GHz and 5 GHz bands, with backwards compatibility for Wi-Fi 4 and Wi-Fi 5 clients.

Q: What is the operating temperature range of this model?
A: The AWK-1165A-UN is the standard-temperature model, rated for -25 to 60°C operation.

Q: How many Ethernet ports does it have and at what speed?
A: It has five 10/100/1000BaseT(X) Gigabit Ethernet ports.

Q: What is the ingress protection rating?
A: The metal housing is rated IP30, suited to installation inside cabinets or protected industrial enclosures.

Q: Does it support WPA3 security?
A: Yes, the AWK-1165A-UN supports WPA3 encryption for enhanced wireless security.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
