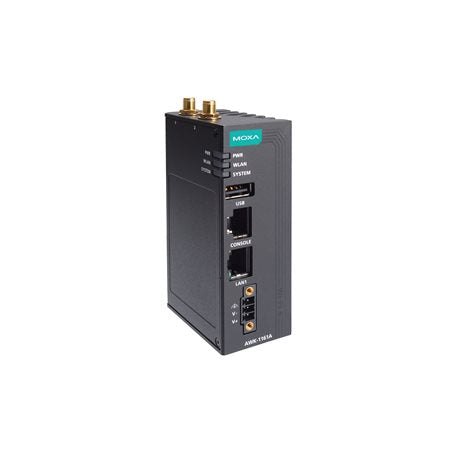

Moxa AWK-1161A-UN-T | AWK-1161A Industrial Wi-Fi 6 Access Point, UN Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-1161A-UN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-1161A-UN-T is an industrial Wi-Fi 6 (802.11ax) wireless access point with a single Gigabit Ethernet port and an IP30-rated housing. This UN band model uses a configurable country or region code for flexible deployment, and the -T variant is rated for operation from -40 to 75°C, making it suited to harsh factory floors, control cabinets and outdoor enclosures.

Selectable 2.4 GHz and 5 GHz operation delivers data rates up to 1,201 Mbps on 5 GHz, with OFDMA and Target Wake Time for efficient multi-client communication. WPA3 encryption, 802.1X/RADIUS authentication and 802.11k/v/r roaming support secure, reliable connectivity, while DIN-rail mounting (with optional wall mounting) keeps installation simple in compact industrial spaces.

Features

- High-speed IEEE 802.11ax Wi-Fi
- Selectable dual-band Wi-Fi with data rates up to 1,201 Mbps
- WPA3 encryption for enhanced wireless network security
- Universal (UN) model with configurable country or region code for flexible deployment
- Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
- Integrated antenna isolation
- Wi-Fi 6 OFDMA for concurrent communication with multiple clients
- Wi-Fi 6 TWT (Target Wake Time) for better client scheduling and battery life
- Compact form factor suited to industrial machines and control cabinets

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11ax (Wi-Fi 6), backwards compatible with 802.11a/b/g/n/ac
- 1 x 10/100/1000BaseT(X) Ethernet port
- Selectable 2.4 GHz / 5 GHz dual-band operation
- Data rates up to 573.5 Mbps (2.4 GHz) and 1,201 Mbps (5 GHz)
- 2.4 GHz: 20/40 MHz channels; 5 GHz: 20/40/80 MHz channels, 1024 QAM
- UN band with 2.4 GHz (14 channels) and 5 GHz channels; available channels depend on the selected country or region code
- DFS channel support in AP mode
- WPA/WPA2/WPA3 Personal and Enterprise (802.1X/RADIUS)
- 802.11k/v/r wireless roaming
- IP30 protection rating
- Operating temperature -40 to 75°C
- DIN-rail mounting, optional wall mounting

FAQs

Q: What does the UN band mean on the AWK-1161A-UN-T?
A: UN indicates a universal band model. The country or region code is configurable, and the available 2.4 GHz and 5 GHz channels depend on the code selected during setup.

Q: What is the operating temperature range?
A: The -T suffix denotes the wide temperature model, rated for operation from -40 to 75°C.

Q: Does the AWK-1161A-UN-T support Wi-Fi 6?
A: Yes. It supports IEEE 802.11ax with OFDMA and Target Wake Time, and is backwards compatible with 802.11a/b/g/n/ac.

Q: What wireless security options are supported?
A: It supports WPA, WPA2 and WPA3 in Personal and Enterprise modes, including 802.1X authentication with a RADIUS server.

Q: How is the access point mounted?
A: It mounts on a DIN rail, with optional wall mounting available.

Q: What is the IP rating and network interface?
A: It has an IP30 protection rating and one 10/100/1000BaseT(X) Gigabit Ethernet port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
