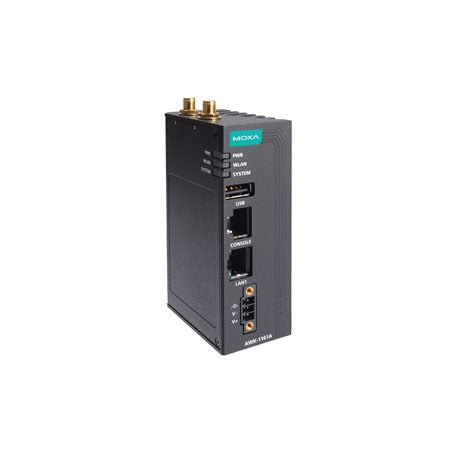

Moxa AWK-1161A-UN | AWK-1161A Industrial Wi-Fi 6 Access Point, UN Band, -25 to 60°C

Authorised Moxa Partner

SKU:AWK-1161A-UN

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-1161A-UN is an industrial Wi-Fi 6 (802.11ax) wireless access point with one Gigabit Ethernet port and an IP30 housing. This Universal (UN) band model supports a configurable country or region code and operates from -25 to 60°C, making it suited to industrial machines, control cabinets and factory floor wireless deployments.

Selectable dual-band 2.4 GHz and 5 GHz operation delivers data rates up to 573.5 Mbps and 1,201 Mbps respectively, with OFDMA, TWT and WPA3 security for efficient and secure multi-client connectivity. DIN-rail mounting and a compact form factor simplify installation in space-constrained industrial enclosures, with an optional wall mount available.

Features

- High-speed IEEE 802.11ax Wi-Fi
- Wi-Fi 6 OFDMA for concurrent multi-client communication
- Wi-Fi 6 TWT (Target Wake Time) for better scheduling and longer client battery life
- Latest WPA3 encryption for enhanced wireless security
- Universal (UN) model with configurable country or region code for flexible deployment
- Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
- Integrated antenna isolation
- DFS channel support to avoid interference with existing wireless infrastructure
- Compact form factor suited to industrial machines or control cabinets

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11ax (Wi-Fi 6), backwards compatible with 802.11a/b/g/n/ac
- 1 x 10/100/1000BaseT(X) Ethernet port
- Selectable 2.4 GHz / 5 GHz dual-band operation
- Data rates up to 573.5 Mbps (2.4 GHz) and 1,201 Mbps (5 GHz)
- 2.4 GHz: 20/40 MHz channels; 5 GHz: 20/40/80 MHz channels, 1024-QAM
- UN band: 2.412-2.472 GHz (13 channels) on 2.4 GHz, plus 5 GHz channels with DFS support
- Transmit power 21±1.5 dBm (dual chain)
- WPA/WPA2/WPA3 Personal and Enterprise (802.1X/RADIUS)
- 802.11k/v/r roaming
- IP30 rated housing
- Operating temperature -25 to 60°C
- DIN-rail mounting, optional wall mount

FAQs

Q: What does the UN designation mean on the AWK-1161A-UN?
A: UN stands for Universal. This model supports a configurable country or region code, allowing the same unit to be deployed across different regions with the correct wireless channel settings.

Q: Which Wi-Fi standards and bands does the AWK-1161A-UN support?
A: It supports IEEE 802.11ax (Wi-Fi 6) and is backwards compatible with 802.11a/b/g/n/ac. Operation is selectable between the 2.4 GHz and 5 GHz bands.

Q: What is the operating temperature range?
A: This variant is rated for -25 to 60°C operation, suitable for control cabinets and industrial machinery environments.

Q: How is the AWK-1161A-UN mounted?
A: It supports DIN-rail mounting, with an optional wall mount available. The compact IP30 housing suits installation inside industrial enclosures.

Q: What wireless security options are supported?
A: It supports WPA, WPA2 and WPA3 in both Personal and Enterprise modes, including 802.1X/RADIUS authentication, along with 802.11k/v/r roaming.

Q: How many Ethernet ports does it have?
A: It has one 10/100/1000BaseT(X) Gigabit Ethernet port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
