Moxa AWK-1137C-EU-T | AWK-1137C Industrial Wi-Fi Client, EU Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-1137C-EU-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

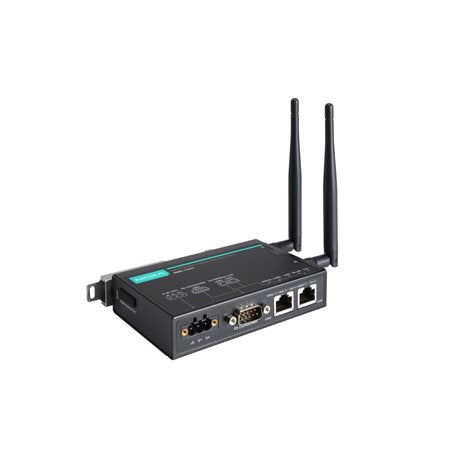

The Moxa AWK-1137C-EU-T is an industrial 802.11a/b/g/n wireless client that connects a single fixed or moving device to a WLAN. This EU-band model supports selectable 2.4 GHz and 5 GHz operation with 2x2 MIMO at up to 300 Mbps, and its -T extended temperature rating allows reliable operation from -40 to 75°C.

It provides two RJ45 10/100BaseT(X) Ethernet ports and a DB9 serial port for connecting Ethernet and serial equipment, with client-based Turbo Roaming for fast handover between access points. The compact IP30 housing mounts on a DIN rail or wall and runs from a 9-30 VDC supply.

Features

- Client-based Turbo Roaming for millisecond-level handover, AP-agnostic
- Network Address Translation (NAT) for easy network setup
- Integrated antenna and power isolation
- Anti-vibration design
- Compact size for industrial installation
- Supports 802.11i security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n (Wi-Fi 4), 2x2 MIMO, up to 300 Mbps
- Selectable dual-band: 2.4 GHz and 5 GHz, EU band
- 2 x RJ45 10/100BaseT(X) Ethernet ports
- 1 x DB9 male serial port
- 2 x RP-SMA female antenna connectors
- Power input 9-30 VDC via removable 3-contact terminal block
- Operating temperature -40 to 75°C (-T extended temperature model)
- IP30 protection rating
- DIN-rail and wall mounting
- Dimensions approx. 26 x 116 x 77 mm (H x W x D)

FAQs

Q: What is the operating temperature range of the AWK-1137C-EU-T?
A: The -T variant operates from -40 to 75°C, suiting outdoor cabinets, factory floors and other harsh industrial environments.

Q: Which frequency bands does it support?
A: It supports selectable 2.4 GHz and 5 GHz operation under IEEE 802.11a/b/g/n, configured for the EU band.

Q: Can it connect serial devices to a wireless network?
A: Yes. Alongside two RJ45 10/100BaseT(X) Ethernet ports, it has a DB9 male serial port for connecting serial equipment.

Q: How is the AWK-1137C-EU-T powered and mounted?
A: It runs from a 9-30 VDC supply through a removable 3-contact terminal block, and mounts on a DIN rail or a wall.

Q: Does it support fast roaming for moving equipment?
A: Yes. Client-based Turbo Roaming provides millisecond-level handover between access points and works with any AP.

Q: What antenna connectors does it use?
A: It has two RP-SMA female antenna connectors to support 2x2 MIMO operation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
