Moxa AWK-1137C-EU | AWK-1137C Industrial Wi-Fi Wireless Client, EU, 0-60C

Authorised Moxa Partner

SKU:AWK-1137C-EU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

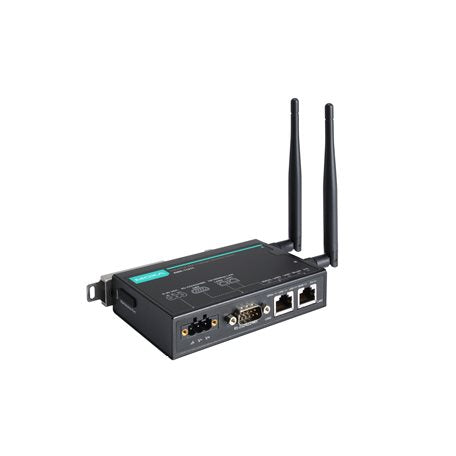

The Moxa AWK-1137C-EU is an industrial Wi-Fi 4 (802.11a/b/g/n) wireless client designed to connect a single moving device to a wireless network. This EU-band model supports selectable 2.4 GHz and 5 GHz dual-band operation with data rates up to 300 Mbps, and a standard 0 to 60°C operating temperature range.

With 2 x Ethernet LAN ports, 1 x serial port and a 9-30 VDC supply range, it suits factory automation, automated guided vehicles and other mobile industrial applications. Client-based Turbo Roaming delivers millisecond-level handover across access points, and WPA/WPA2-Enterprise security protects the wireless link.

Features

- AP-agnostic millisecond-level Client-based Turbo Roaming
- Compact size for easy installation
- Easy network setup with Network Address Translation (NAT)
- Integrated antenna isolation to protect against external electrical interference
- WMM for QoS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n (Wi-Fi 4), selectable 2.4 GHz / 5 GHz dual-band
- Data rates up to 300 Mbps (802.11n: 6.5 to 300 Mbps)
- EU band: 2.412-2.472 GHz (13 ch), 5.180-5.240 GHz (4 ch), 5.260-5.320 GHz (4 ch), 5.500-5.700 GHz (11 ch)
- 2 x Ethernet LAN ports and 1 x serial port
- Supply voltage 9-30 VDC
- Operating temperature 0 to 60°C
- Modulation: DSSS, OFDM, MIMO-OFDM
- Security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise (802.1X/RADIUS, TKIP, AES)

FAQs

Q: Which frequency bands does the AWK-1137C-EU support?
A: It supports selectable dual-band operation on the EU band: 2.412-2.472 GHz, 5.180-5.240 GHz, 5.260-5.320 GHz and 5.500-5.700 GHz.

Q: What is the operating temperature range of this model?
A: The AWK-1137C-EU is the standard temperature model, rated for 0 to 60°C operation.

Q: What wireless standards and speeds does it support?
A: It supports IEEE 802.11a/b/g/n (Wi-Fi 4) with data rates up to 300 Mbps on 802.11n.

Q: What interfaces does the AWK-1137C-EU provide?
A: It has 2 x Ethernet LAN ports and 1 x serial port, so it can connect a single wired or serial device to the wireless network.

Q: What power supply does it require?
A: It operates from a 9-30 VDC supply.

Q: How does it handle roaming between access points?
A: It uses AP-agnostic Client-based Turbo Roaming, which provides millisecond-level handover for moving devices.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
