Moxa AWK-1131A-EU-T | AWK-1131A Wi-Fi 4 Industrial Access Point, EU Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-1131A-EU-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

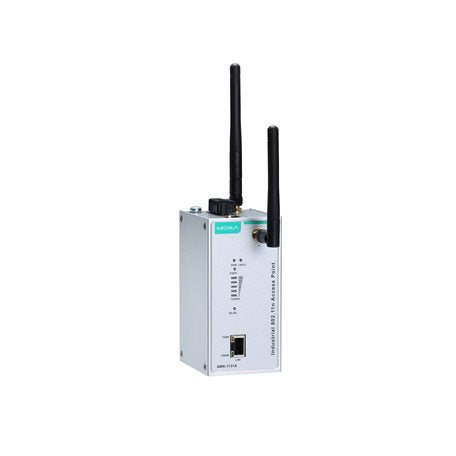

The Moxa AWK-1131A-EU-T is an industrial Wi-Fi 4 (802.11a/b/g/n) access point and client for the EU band, with a wide -40 to 75C operating temperature range. It delivers data rates up to 300 Mbps over selectable 2.4 GHz or 5 GHz dual-band operation with 2x2 MIMO, making it well suited to factories, control cabinets and other harsh industrial environments.

The compact aluminium, IP30-rated housing and redundant DC power inputs support dependable installation in space-constrained cabinets. It can operate as an access point or a client, with 5 GHz DFS channel support, Turbo Roaming for fast handover between access points, and integrated antenna and power isolation to help protect against interference. It is also backwards-compatible with existing 802.11a/b/g deployments.

Features

- 5 GHz DFS channel support to avoid wireless interference
- Turbo Roaming with sub-150 ms roaming recovery between APs in Client mode
- Integrated antenna isolation and power isolation for protection against interference
- Compact size for installation in control cabinets
- MXview Wireless network management software support
- Backwards-compatible with existing 802.11a/b/g deployments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WLAN standards: IEEE 802.11a/b/g/n, 802.11i wireless security
- Data rate up to 300 Mbps
- Selectable 2.4 GHz or 5 GHz dual-band operation
- 2x2 MIMO
- EU band: 2.412-2.472 GHz (13 channels)
- EU band: 5.180-5.240 GHz (4 channels)
- EU band: 5.260-5.320 GHz (4 channels, DFS)
- EU band: 5.500-5.700 GHz (11 channels, DFS)
- Operating temperature: -40 to 75C (-T model)
- Compact aluminium housing, IP30-rated
- Redundant DC power inputs
- Operates as access point or client

FAQs

Q: What temperature range does the AWK-1131A-EU-T support?
A: The -T model operates across a wide -40 to 75C temperature range, suited to harsh industrial environments.

Q: Which frequency bands does it use?
A: It supports selectable 2.4 GHz or 5 GHz dual-band operation, with the EU channel plan covering 2.412-2.472 GHz and 5 GHz channels including DFS ranges.

Q: Can it operate as both an access point and a client?
A: Yes. It can operate as an access point or as a wireless client, with Turbo Roaming for fast handover between access points in Client mode.

Q: What is the maximum data rate?
A: It supports data rates up to 300 Mbps using 2x2 MIMO under the 802.11n standard.

Q: Is it compatible with older Wi-Fi devices?
A: Yes. It is backwards-compatible with existing 802.11a/b/g deployments.

Q: How is it powered and mounted?
A: It has redundant DC power inputs and a compact IP30-rated aluminium housing designed for installation in control cabinets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
