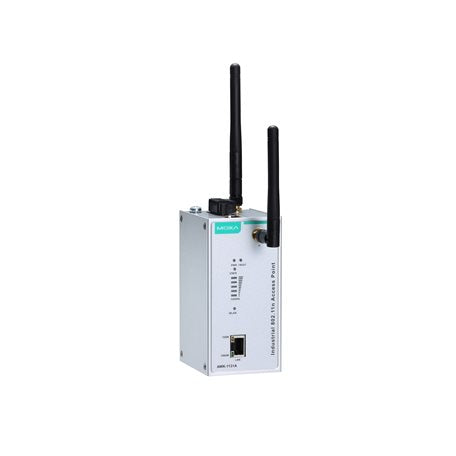

Moxa AWK-1131A-EU | AWK-1131A Industrial Wireless AP/Client, 802.11a/b/g/n, EU Band

Authorised Moxa Partner

SKU:AWK-1131A-EU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-1131A-EU is an industrial IEEE 802.11a/b/g/n dual-band wireless access point and client for rugged networks that need reliable Wi-Fi connectivity. This EU-band model supports data rates of up to 300 Mbps and operates across 0 to 60°C, making it suited to factory floors, warehouses and automated plant environments within the standard temperature range. It can be deployed as an access point, a client or a sniffer to suit bridging and wireless uplink scenarios.

A compact IP30 metal housing mounts on a DIN rail, with optional wall mounting. Redundant 12 to 48 VDC power inputs, a Gigabit Ethernet port and two RP-SMA antenna connectors with included 2/2 dBi omni-directional antennas provide flexible installation. Wireless security includes WPA/WPA2 Personal and Enterprise with 802.1X/RADIUS, alongside HTTPS, SSH and SNMPv3 for secure management.

Features

- High-speed wireless connectivity with up to 300 Mbps data rate
- MIMO technology for multiple simultaneous data streams
- Channel bonding for increased channel width
- Flexible channel selection with DFS support
- Redundant DC power inputs with reverse polarity protection
- Integrated isolation design with enhanced protection against environmental interference
- Compact IP30 metal housing for DIN-rail mounting
- Access point, client and sniffer operating modes

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Standards: IEEE 802.11a/b/g/n, 802.11i security
- Data rate: up to 300 Mbps (802.11n)
- Frequency band: EU, 2.4 GHz and 5 GHz (DFS supported)
- Operation modes: Access point, Client, Sniffer
- Ethernet: 1 x 10/100/1000BaseT(X) RJ45 port
- Antenna: 2 x RP-SMA female connectors, 2/2 dBi omni-directional antennas included
- Max transmit power (EU): 18 dBm at 2.4 GHz, up to 23 dBm at 5 GHz
- Wireless security: WEP, WPA/WPA2 Personal and Enterprise (802.1X/RADIUS, TKIP, AES)
- Management: SNMPv1/v2c/v3, HTTP/HTTPS, SSH, Telnet, LLDP, VLAN, Syslog, MXview, MXconfig
- Console port: RS-232 via 8-pin RJ45
- Power input: 12 to 48 VDC redundant, 6.96 W max
- Operating temperature: 0 to 60°C, storage -40 to 85°C
- Housing: IP30 metal, 58 x 115 x 70 mm, 307 g
- Mounting: DIN-rail, wall mount with optional kit
- MTBF: 749,476 hours (Telcordia SR332)

FAQs

Q: What operating temperature range does the AWK-1131A-EU support?
A: This model operates from 0 to 60°C. It is the standard-temperature variant, so it suits indoor industrial environments rather than extreme cold.

Q: Which frequency bands does this model use?
A: The EU-band model supports 2.4 GHz and 5 GHz operation under IEEE 802.11a/b/g/n, with DFS support on applicable 5 GHz channels.

Q: What operating modes are supported?
A: It can operate as an access point, a wireless client or a sniffer, allowing use for wireless bridging and client uplink applications.

Q: How is the unit powered?
A: It accepts 12 to 48 VDC through a removable 4-contact terminal block with redundant power inputs. It is not powered over Ethernet.

Q: Are antennas included?
A: The unit has two RP-SMA female antenna connectors and ships with 2/2 dBi omni-directional antennas.

Q: How is the AWK-1131A-EU mounted?
A: It mounts on a DIN rail as standard in its IP30 metal housing. Wall mounting is available with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
