Lenovo SE360 V2 | ThinkEdge SE360 V2 Edge Server, 2U Half-Width, Xeon D-2700

Authorised Lenovo Partner

SKU:SE360 V2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

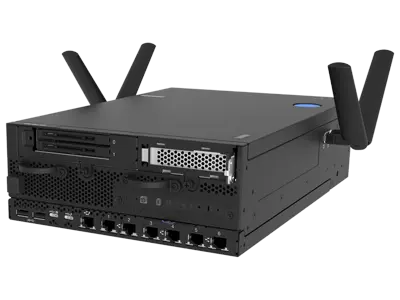

The Lenovo ThinkEdge SE360 V2 is a compact, ruggedised 2U half-width edge server built for edge AI, machine learning, smart surveillance and video analytics. Powered by a single Intel Xeon D-2700 processor with up to 16 cores, it brings data centre class compute to remote sites and harsh environments where a standard rack server will not fit or survive.

The chassis is shock and vibration resistant, supports optional front and rear dust filters, and runs on dual 300W external power supplies with DC direct or pure AC input modes. Storage options include dual front 7mm NVMe or SATA SSD bays plus internal M.2 NVMe for mirrored boot and data drives, making it a flexible platform for distributed deployments.

Features

- Ruggedised chassis, shock and vibration resistant
- Optional front and rear dust filters for dusty environments
- Targets edge AI, machine learning, smart surveillance and video analytics
- External power supplies keep the chassis compact
- Flexible DC direct or pure AC power input
- Mirrored M.2 NVMe boot storage for resilience

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U height, half width edge server (84.5mm H x 212mm W x 317.5mm D)
- Processor: 1-socket Intel Xeon D-2700, up to 16 cores
- Memory: up to 256GB in 4 slots using 64GB 3200MHz TruDDR4 DIMMs
- Storage: optional dual front 7mm NVMe or SATA SFF SSD bays
- Internal storage: M.2 NVMe, 2 x 2280 mirrored boot plus up to 8 x 2280/22110 data SSDs
- Power: dual 300W external PSUs, with DC direct and pure AC input modes
- Operating temperature: up to 55 degrees C with DC or pure AC input
- Optional wireless and Bluetooth 5 adapter

FAQs

Q: What workloads is the ThinkEdge SE360 V2 designed for?
A: It is built for edge AI, machine learning, smart surveillance and video analytics, particularly at remote or harsh-environment sites.

Q: What processor does the SE360 V2 use?
A: It uses a single-socket Intel Xeon D-2700 processor with up to 16 cores.

Q: How much memory does it support?
A: Up to 256GB across 4 memory slots using 64GB 3200MHz TruDDR4 DIMMs.

Q: What storage options are available?
A: Optional dual front 7mm NVMe or SATA SFF SSD bays, plus internal M.2 NVMe with 2 x 2280 mirrored boot drives and up to 8 x 2280/22110 data SSDs.

Q: How is the SE360 V2 powered?
A: It uses dual 300W external power supplies and supports both DC direct and pure AC input modes.

Q: Can it operate in hot environments?
A: Yes, it supports operating temperatures up to 55 degrees C with DC or pure AC input.
