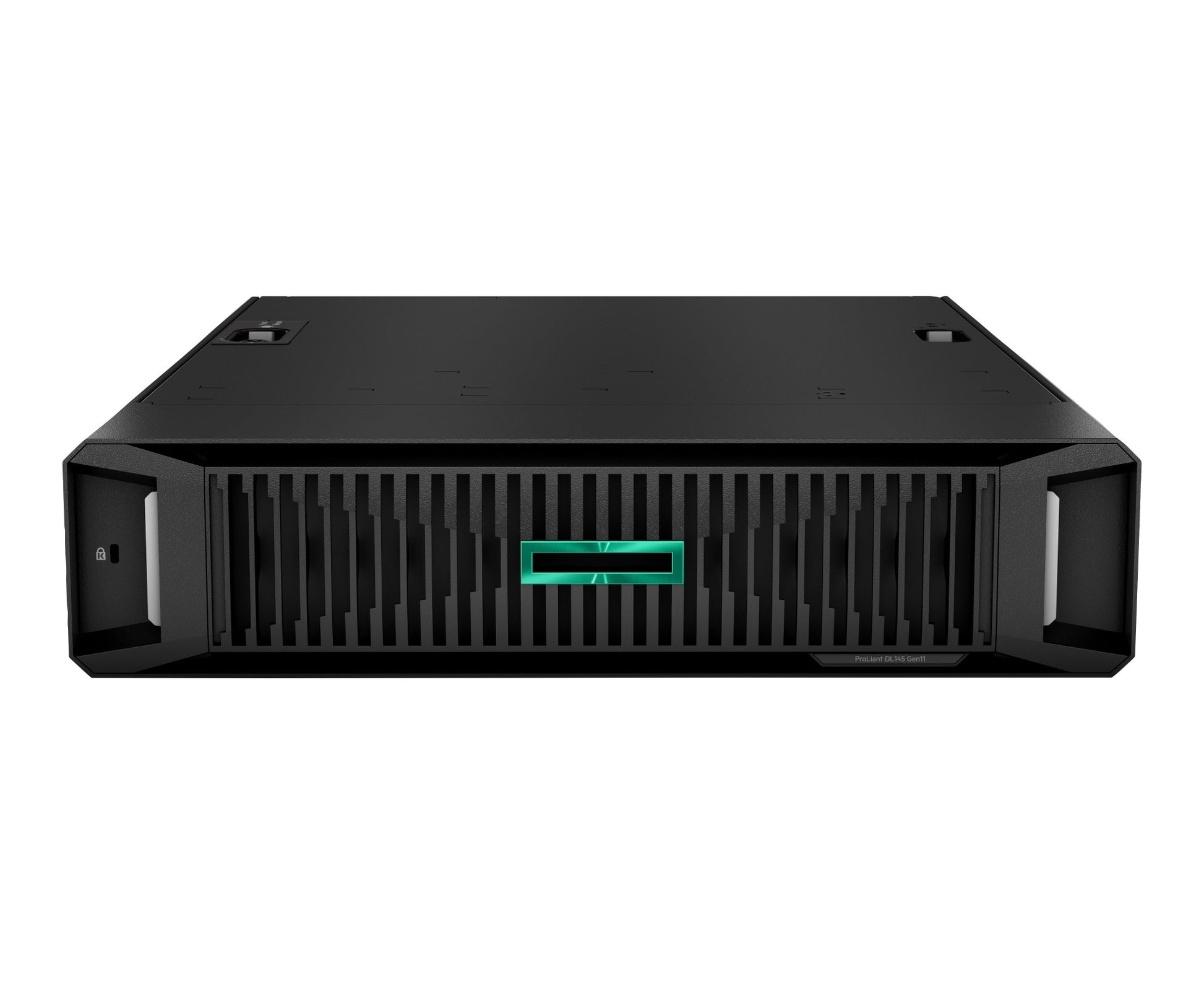

HPE P89120-375 | ProLiant DL145 Gen11 2U Server, EPYC 8024P 8c, 32GB, 2SFF

Name: HPE P89120-375 | ProLiant DL145 Gen11 2U Server, EPYC 8024P 8c, 32GB, 2SFF
Brand: HPE
SKU: P89120-375
Price: 10174.4 AUD
Availability: BackOrder

Authorised HPE Partner

SKU:P89120-375

Stock Status: Enquire

$10,174.40 inc. GST

$9,249.45 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The HPE ProLiant DL145 Gen11 is a compact, front-cabled 2U edge server built around a single 8-core AMD EPYC 8024P processor running at 2.4GHz. This configuration ships with 32GB of DDR5-4800 registered memory, a 2x SFF drive cage, an NS204i-u NVMe boot device, a Broadcom BCM5719 4-port 1GbE adapter and dual 700W Platinum power supplies.

Designed for branch offices, retail sites and edge deployments, the DL145 Gen11 supports up to three single-wide or one double-wide GPU for edge AI and graphics workloads, and can be mounted on a wall, desk or in a 2-post or 4-post rack. HPE iLO 6, Silicon Root of Trust and TPM 2.0 provide hardware-level management and security.

Features

- Compact edge-optimised chassis, 15in wide and 16in deep without bezel
- Operating temperature support up to 55 C, with a bezel and air filter designed to qualify for MIL-STD-810H
- Up to 3 single-wide or 1 double-wide GPU for edge AI and graphics workloads
- AMD EPYC 8004 series platform scaling from 8 to 64 cores
- Bezel with large air filter for dust protection
- HPE Silicon Root of Trust, iLO 6 and TPM 2.0 security
- Redundant hot-plug power supplies and fans
- Flexible mounting: wall, desk or rack

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1 x AMD EPYC 8024P, 8 cores, 2.4GHz base, 3GHz max boost, 90W, 32MB L3 cache
- Memory installed: 32GB (1 x 32GB) DDR5-4800 RDIMM, dual rank
- Memory capacity: 6 DIMM slots, up to 768GB
- Drive bays: 2 x SFF (SAS/SATA/NVMe)
- Boot device: HPE NS204i-u Gen11 NVMe hot-plug boot optimised storage device
- Network: Broadcom BCM5719 1GbE 4-port BASE-T adapter
- Expansion: 3 x PCIe 5.0 slots, 1 x OCP 3.0 PCIe 5.0 x16 slot
- GPU support: NVIDIA L4 and NVIDIA L40S
- Power: 2 x HPE 700W Flex Slot Platinum hot-plug AC power supplies, reverse airflow
- Cooling: 4 hot-plug fans with built-in redundancy
- Management: HPE iLO 6, TPM 2.0
- Form factor: 2U rack, front-cabled chassis
- Dimensions without bezel filter (H x W x D): 87.5 x 359.4 x 406.6mm
- Mounting: wall, desk, 2-post and 4-post rack

FAQs

Q: What processor and memory does this DL145 Gen11 configuration include?
A: It includes one AMD EPYC 8024P with 8 cores at 2.4GHz (up to 3GHz boost) and 32GB (1 x 32GB) of DDR5-4800 registered memory. The server has 6 DIMM slots and supports up to 768GB.

Q: Does the DL145 Gen11 support GPUs?
A: Yes. It supports up to three single-wide or one double-wide GPU, including NVIDIA L4 and NVIDIA L40S, making it suitable for edge AI and graphics workloads.

Q: How can this server be mounted?
A: The DL145 Gen11 can be mounted on a wall, on a desk, or in a 2-post or 4-post rack, which suits space-constrained edge and branch sites.

Q: Are the power supplies redundant?
A: Yes. It includes two HPE 700W Flex Slot Platinum hot-plug AC power supplies with reverse airflow, alongside four hot-plug fans with built-in redundancy.

Q: What storage and boot options does this SKU include?
A: It has a 2x SFF drive cage supporting SAS, SATA or NVMe drives, plus an HPE NS204i-u Gen11 NVMe hot-plug boot optimised storage device for the operating system.

Q: What network connectivity is installed?
A: It ships with a Broadcom BCM5719 1GbE 4-port BASE-T adapter. An OCP 3.0 PCIe 5.0 x16 slot is available for additional network cards.
