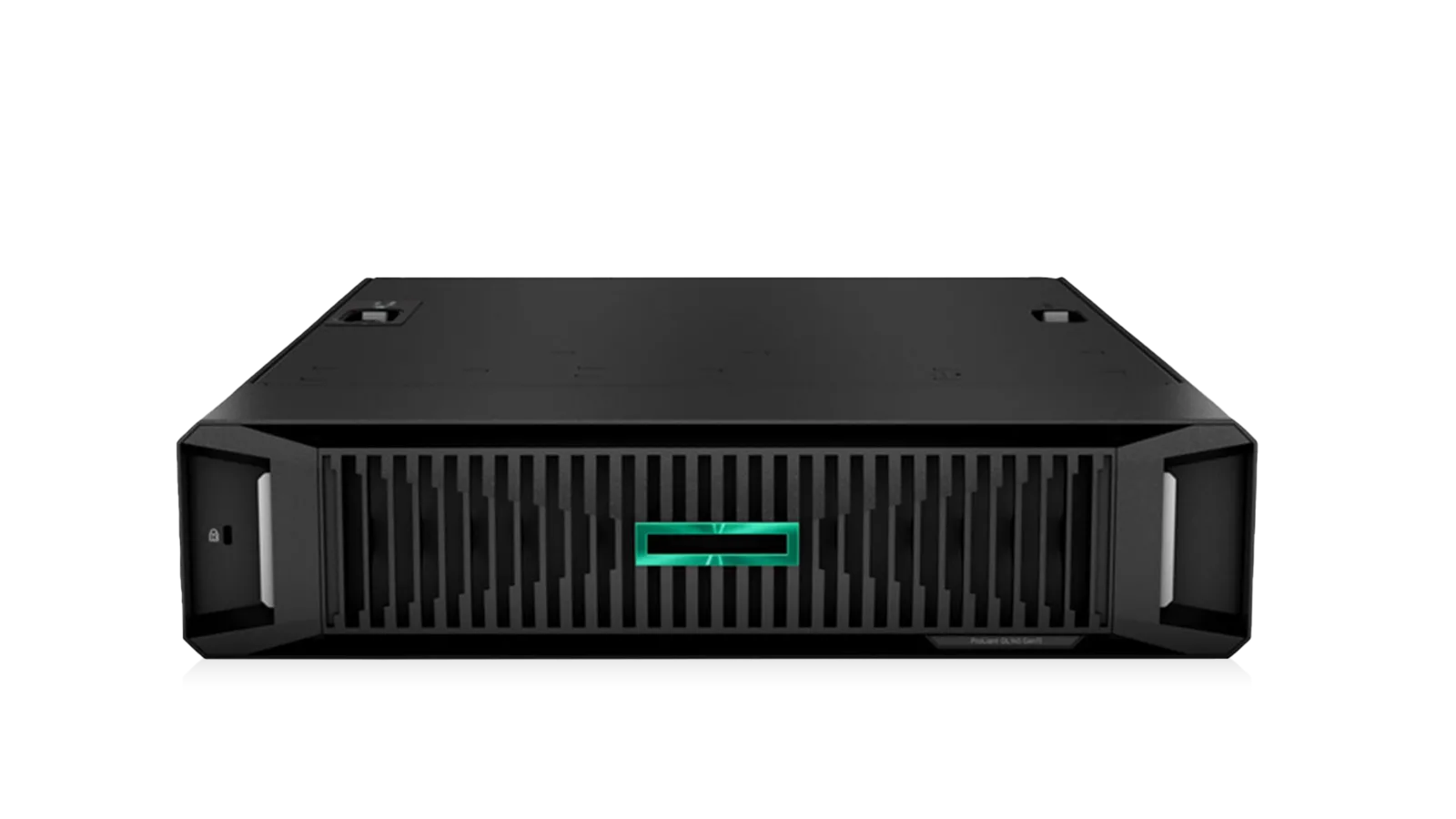

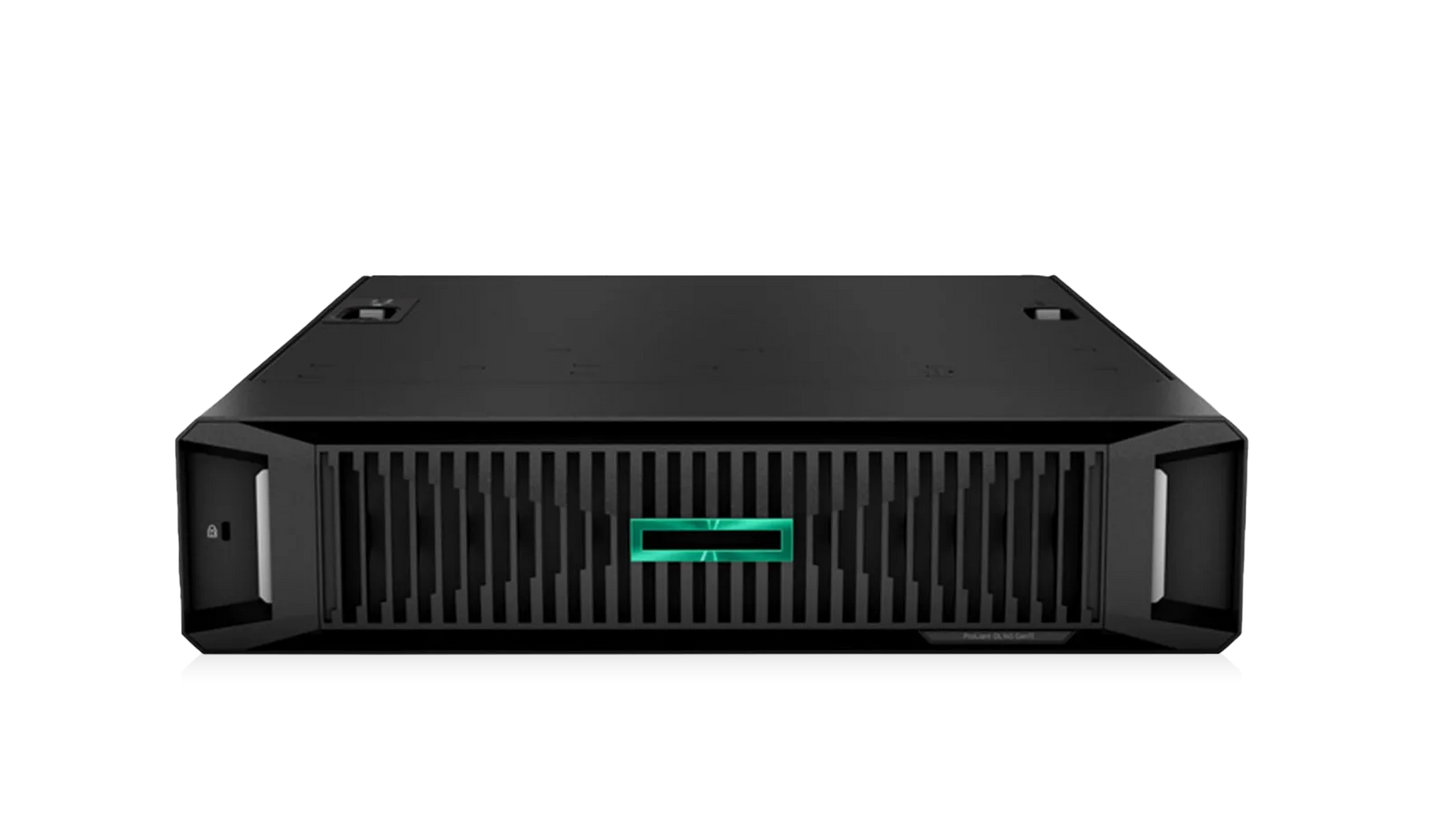

HPE DL145 Gen11 | ProLiant DL145 Gen11 2U Edge Server, AMD EPYC 8004

Authorised HPE Partner

SKU:DL145 Gen11

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL145 Gen11 is a compact 2U edge server built on AMD EPYC 8004/8005 processors, designed for edge and branch environments where space and dust protection matter. It can be rack, wall or desk mounted, and supports 8 to 84 cores, DDR5 memory and PCIe Gen 5 expansion for accelerators and network adapters.

The DL145 Gen11 provides 3 PCIe Gen 5 slots plus an OCP 3.0 PCIe Gen 5 slot for networking, with GPU support for NVIDIA L4, L40S and RTX PRO 4500. A bezel with a large air filter, chassis intrusion detection and Silicon Root of Trust security make it well suited to unattended sites outside the data centre.

Features

- Rack, wall or desk mounting
- Bezel with large air filter for dust protection
- Silicon Root of Trust, iDevID, Platform Certificates, TPM 2.0
- Chassis intrusion detection, bezel lock, Kensington lock
- Hot-pluggable NS204i-u boot device

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U compact form factor, approx. 15 in wide x 16 in deep (20 in with bezel filter)
- AMD EPYC 8004/8005 processor, 8 to 84 cores, TDP up to 225W
- DDR5 memory at 4800 or 6400 MT/s, 6 DIMM slots, up to 768 GB (using 128 GB DIMMs)
- 3 x PCIe Gen 5 slots for GPUs/accelerators and full-size cards
- 1 x OCP 3.0 PCIe Gen 5 slot for network adapters
- Up to 2 SFF or 6 EDSFF E3.S drives, up to 92.16TB storage
- Self Encrypting Drive support
- GPU support: NVIDIA L4, L40S and RTX PRO 4500
- Operating temperature -5°C to 55°C

FAQs

Q: What processors does the HPE ProLiant DL145 Gen11 support?
A: It supports AMD EPYC 8004/8005 series processors with 8 to 84 cores and a TDP of up to 225W.

Q: How much memory can the DL145 Gen11 hold?
A: It has 6 DDR5 DIMM slots running at 4800 or 6400 MT/s, supporting up to 768 GB using 128 GB DIMMs.

Q: Can the DL145 Gen11 be installed outside a rack?
A: Yes. It can be rack, wall or desk mounted, and the bezel includes a large air filter to protect against dust.

Q: Which GPUs are supported?
A: The three PCIe Gen 5 slots support NVIDIA L4, L40S and RTX PRO 4500 GPUs and accelerators.

Q: What storage options are available?
A: You can fit up to 2 SFF drives or up to 6 EDSFF E3.S drives, for up to 92.16TB of storage. Self Encrypting Drives are supported.

Q: What security features does it include?
A: It includes Silicon Root of Trust, iDevID, Platform Certificates and TPM 2.0, plus chassis intrusion detection, a bezel lock and a Kensington lock.
