Juniper QFX5230-64CD-CHAS | QFX5230-64CD 64-Port 400GbE Switch, Spare Chassis, No PSU or Fans

Authorised Juniper Partner

SKU:QFX5230-64CD-CHAS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

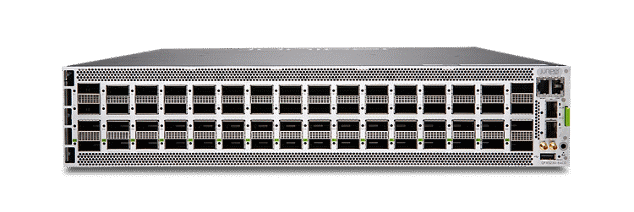

The Juniper QFX5230-64CD spare chassis is a high-radix 2U 400GbE data centre switch with 64 QSFP56-DD ports, built for spine, leaf and AI data centre fabrics. This SKU supplies the chassis only, without power supplies or fan modules, making it suited to chassis replacement and spares holdings.

Built around a Broadcom Tomahawk4 switch chip and running Junos OS Evolved, the QFX5230-64CD delivers up to 25.6 Tbps of throughput with 600 ns cut-through latency. Ports support breakout to 200GbE, 100GbE, 25GbE or 10GbE, and a wide range of QSFP56-DD transceivers is supported. Power supplies and fan modules for the populated system are ordered separately.

Features

- High-density 400GbE for data centre spine and super-spine, IP storage and DCI
- Suited to AI data centre networking
- Wide range of QSFP56-DD transceiver options with breakout support
- Runs Junos OS Evolved
- Redundant hot-pluggable power and cooling (ordered separately for this chassis SKU)

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 64 x QSFP56-DD 400GbE ports
- Breakout options: 128 x 200GbE, 256 x 100GbE, 256 x 25GbE or 256 x 10GbE
- System throughput up to 25.6/51.2 Tbps (uni/bidirectional)
- Forwarding capacity 10.53 billion packets per second
- Switch chip: Broadcom Tomahawk4
- CPU: Intel Hewitt Lake (6 core), 32GB DDR4 memory, 2x100GB storage
- Total packet buffer: 112 MB
- Latency: 600 ns (unicast, cut-through)
- 128,000 MAC addresses, 4,000 VLAN IDs, 9216 byte jumbo frames
- Form factor: 2U
- Weight: 25 kg (55 lbs) with PSUs and fans installed
- Supplied as spare chassis without PSUs or fan modules
- Power when populated: redundant 1+1 hot-pluggable 3000W AC or 2400W DC PSUs
- Cooling when populated: redundant (3x2+1)+1 hot-pluggable fan modules, AFO/AFI airflow options
- Operating system: Junos OS Evolved

FAQs

Q: Does the QFX5230-64CD-CHAS include power supplies and fans?
A: No. This SKU is the spare chassis only, supplied without power supplies and fan modules. These are ordered separately.

Q: What power and cooling options are used with this chassis?
A: The populated system uses redundant 1+1 hot-pluggable 3000W AC or 2400W DC power supplies, and redundant (3x2+1)+1 hot-pluggable fan modules with AFO or AFI airflow options.

Q: What port speeds does the QFX5230-64CD support?
A: It has 64 QSFP56-DD 400GbE ports, with breakout options to 128 x 200GbE, 256 x 100GbE, 256 x 25GbE or 256 x 10GbE.

Q: What operating system does the QFX5230-64CD run?
A: It runs Junos OS Evolved.

Q: What is the QFX5230-64CD designed for?
A: It is built for data centre spine and super-spine layers, IP storage, data centre interconnect and AI data centre fabrics.

Q: What is the switching capacity and latency?
A: System throughput is up to 25.6/51.2 Tbps (uni/bidirectional), with forwarding capacity of 10.53 billion packets per second and 600 ns cut-through unicast latency.
