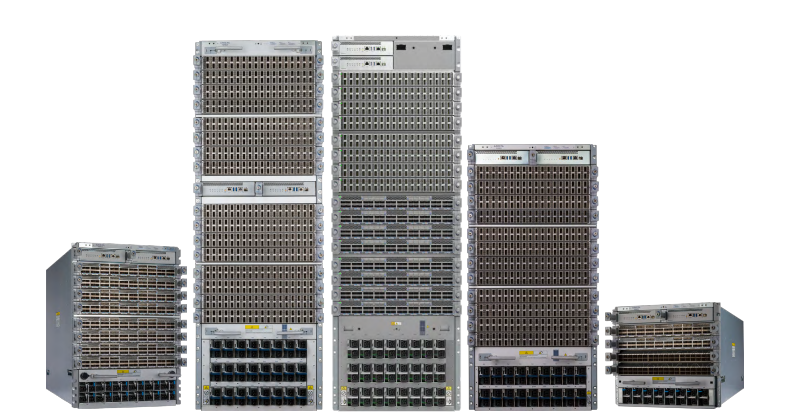

• Silver-colored arista dcs-7816l rack-mounted network switches with 16-slot chassis fabric module and ventilation slots
1 1

Arista

Arista DCS-7816L | 7816 Chassis Fabric Module, 16-Slot, Redundant

Arista DCS-7816L | 7816 Chassis Fabric Module, 16-Slot, Redundant

DCS-7816L

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista DCS-7816L is a fabric module designed for the Arista 7816 modular chassis, delivering high-speed non-blocking fabric connectivity across all line card slots in large-scale data centre deployments. Supporting graceful degradation for fabric redundancy, this module ensures continuous forwarding even during maintenance or partial failure events — a critical requirement for mission-critical spine and core switching infrastructure.

Designed as a user-serviceable component, the DCS-7816L integrates into the 7800R series ecosystem alongside compatible fabric modules such as the DCS-7808R4-FM and DCS-7804R4-FM. With a typical power draw of 562W and hot-swappable fan modules, it supports high-availability architectures in enterprise and hyperscale data centres. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- Provides high-bandwidth, non-blocking fabric interconnect across all 7816 chassis line card slots
- Graceful degradation support maintains forwarding continuity during fabric module failure or removal
- 8 hot-swappable, user-serviceable fan modules for in-service cooling maintenance
- Designed for the Arista 7800R series modular chassis ecosystem
- High availability architecture suitable for data centre spine, core, and interconnect roles
- Compatible with Arista EOS for unified management across the 7800R chassis platform

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Compatible chassis: Arista 7816 (slots 1–16), also referenced with 7808 and 7804 chassis
- Form factor: 2.5" x 21.5" x 23.70" (6.4 x 54.7 x 60.1 cm)
- Weight: 35.8 lbs (16.2 kg)
- Typical power: 562W | Maximum power: 936W
- Cooling: 8 hot-swappable user-serviceable fan modules
- Redundancy: Graceful degradation supported
- Compatible fabric modules: DCS-7808R4-FM, DCS-7804R4-FM
- User-serviceable: Yes

FAQs

Q: What chassis is the Arista DCS-7816L fabric module compatible with?
A: The DCS-7816L is designed for the Arista 7816 modular chassis, which supports up to 16 line card slots. It is part of the Arista 7800R series modular switching platform used in large-scale data centre spine and core deployments.

Q: Does the DCS-7816L support fabric redundancy?
A: Yes. The DCS-7816L supports graceful degradation, meaning the chassis continues forwarding traffic even if a fabric module experiences a fault — ensuring high availability in mission-critical environments.

Q: Are the fans on the DCS-7816L hot-swappable?
A: Yes. The DCS-7816L includes 8 user-serviceable fan modules that can be replaced without taking the system offline, supporting continuous operation during maintenance.

Q: What is the power consumption of the DCS-7816L?
A: The DCS-7816L draws 562W under typical operating conditions, with a maximum power draw of 936W. Accurate power planning is important when configuring your 7816 chassis power supply configuration.

Q: Can I purchase the Arista DCS-7816L in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking Arista data centre switching components including the DCS-7816L. Orders are dispatched across Australia.

Q: How does the DCS-7816L differ from the DCS-7808R4-FM or DCS-7804R4-FM?
A: The DCS-7808R4-FM and DCS-7804R4-FM are fabric modules for the smaller 7808 and 7804 chassis variants respectively. The DCS-7816L is specific to the larger 7816 chassis and is dimensionally larger with higher power capacity to serve all 16 line card slots.
