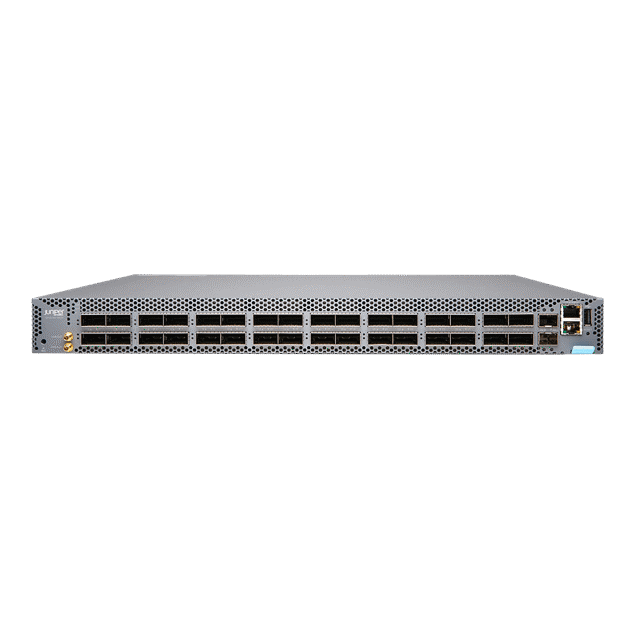

Juniper QFX5130-32CD-CHAS | QFX5130 32-Port 400GbE Data Centre Switch, Chassis Only

Juniper QFX5130-32CD-CHAS | QFX5130 32-Port 400GbE Data Centre Switch, Chassis Only

Authorised Juniper Partner

QFX5130-32CD-CHAS

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The QFX5130-32CD-CHAS is a 1U fixed-configuration data centre switch chassis from Juniper's QFX5130 line, built on a 7 nm Broadcom Trident 4 chipset. It delivers 32 high-density 400GbE QSFP56-DD ports, which also support 100GbE and 40GbE speeds, plus 2 x 10GbE SFP+ ports, making it well suited to spine, leaf and super-spine roles. This SKU is the chassis only, supplied without fan modules or power supplies.

The low-power 7 nm silicon provides higher port density with reduced power consumption, and the platform supports EVPN-VXLAN data centre fabrics under Junos OS. Fan modules and power supplies are ordered separately, allowing the airflow and power configuration to be matched to your rack design.

Features

- Low-power 7 nm process for higher density and lower power consumption
- Suited to data centre spine, leaf and super-spine roles
- Runs Junos OS
- Supports EVPN-VXLAN data centre fabrics

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x 400GbE QSFP56-DD ports (also support 100GbE and 40GbE)
- 2 x 10GbE SFP+ ports
- 1U fixed-configuration form factor
- Broadcom Trident 4 (7 nm) silicon
- Chassis only: fan modules and power supplies not included

FAQs

Q: Does the QFX5130-32CD-CHAS include fans and power supplies?
A: No. This SKU is the chassis only. Fan modules and power supplies are ordered separately.

Q: What port speeds does the QFX5130-32CD support?
A: It provides 32 QSFP56-DD ports running at 400GbE, which also support 100GbE and 40GbE speeds, plus 2 x 10GbE SFP+ ports.

Q: Where is this switch typically deployed?
A: It is designed for data centre spine, leaf and super-spine roles in high-density fabrics.

Q: Does it support EVPN-VXLAN?
A: Yes, the QFX5130 platform supports EVPN-VXLAN data centre fabrics under Junos OS.

Q: What is the form factor?
A: It is a 1U fixed-configuration switch suitable for standard rack mounting.
