Juniper QFX5120-48YM-AFO-T | QFX5120 48-Port 25G Switch, 8x 100G, MACsec, AC, AFO

Authorised Juniper Partner

SKU:QFX5120-48YM-AFO-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

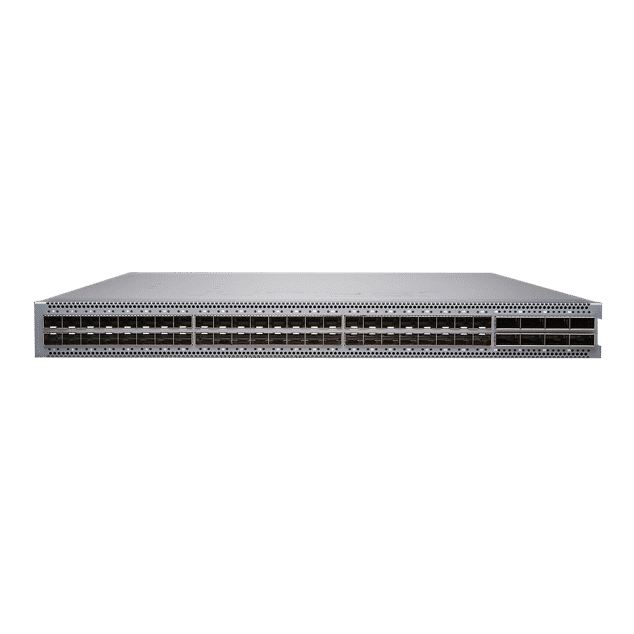

The Juniper QFX5120-48YM-AFO-T is a 1U data centre switch with 48 x 25GbE ports and 8 x 100GbE uplinks, built for high-density top-of-rack and leaf deployments. This AC-powered model supports MACsec AES-256 encryption, so link-level traffic can be secured between switches and connected devices.

This SKU uses port side intake and PSU side exhaust airflow, so it suits racks where cool air is drawn in from the port side. It is part of the QFX5120 Series and is supplied in the AC power variant for standard mains-powered data centre racks.

Features

- MACsec AES-256 link encryption
- High-density 25GbE server access with 100GbE uplinks
- Compact 1U data centre form factor
- AC power model with port side intake airflow

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 25GbE ports
- 8 x 100GbE uplinks
- 1U form factor
- AC power supply
- MACsec AES-256
- Airflow: port side intake, PSU side exhaust

FAQs

Q: What ports does the QFX5120-48YM-AFO-T provide?
A: It provides 48 x 25GbE ports for server access and 8 x 100GbE uplink ports.

Q: Does this model support MACsec?
A: Yes. This SKU supports MACsec with AES-256 encryption.

Q: What is the airflow direction on this model?
A: This SKU uses port side intake and PSU side exhaust airflow. Confirm it matches your rack cooling layout before ordering.

Q: Is this switch AC or DC powered?
A: This is the AC-powered variant.

Q: What form factor is the QFX5120-48YM-AFO-T?
A: It is a 1U rack-mount switch, suited to top-of-rack deployments.
