Juniper

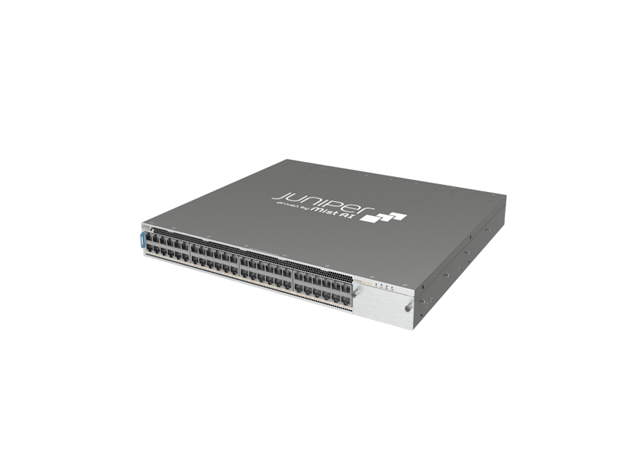

Juniper EX5200-48T | EX5200 48-Port Multigigabit Switch, MACsec, 2x100G, AC

Juniper EX5200-48T | EX5200 48-Port Multigigabit Switch, MACsec, 2x100G, AC

Authorised Juniper Partner

SKU:EX5200-48T

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The EX5200-48T is a fixed-configuration campus access and aggregation switch with 48 non-PoE multigigabit RJ-45 ports supporting 100M, 1G, 2.5G, 5G and 10G speeds. This AC-powered, front-to-back airflow model suits high-density wired access where multigigabit connectivity and MACsec encryption are required, but PoE is not.

The EX5200-48T accepts uplink modules, including 8 x 25GE SFP28 or 2 x 100G QSFP28 with MACsec, for flexible aggregation and core connectivity. Virtual Chassis capability and Mist cloud management support simplify scaling and day-to-day operations in campus deployments.

Features

- MACsec encryption on the access ports and 100G uplinks
- Multigigabit access ports on a non-PoE model
- Modular uplinks for 25GE or 100G connectivity
- Virtual Chassis support for scalable campus deployments
- Cloud (Mist) management with connectivity status LED

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: EX5200-48T
- 48 x multigigabit non-PoE RJ-45 ports
- Port speeds: 100M, 1G, 2.5G, 5G, 10G
- MACsec supported on the multigigabit ports and the 100G uplink module
- Supported uplink modules: 8 x 25GE SFP28 and 2 x 100G QSFP28 with MACsec
- Power: AC variant only
- Airflow: front-to-back
- PoE++: not supported
- Cloud (Mist) management supported
- Front-panel pin-hole reset button for factory-default/Zeroize

FAQs

Q: Does the EX5200-48T support PoE?
A: No. The EX5200-48T is a non-PoE model. Its 48 multigigabit RJ-45 ports carry data only.

Q: What port speeds do the access ports support?
A: The 48 RJ-45 access ports support 100M, 1G, 2.5G, 5G and 10G speeds.

Q: Which uplink modules can be used with the EX5200-48T?
A: It supports an 8 x 25GE SFP28 uplink module and a 2 x 100G QSFP28 uplink module with MACsec.

Q: Does the switch support MACsec encryption?
A: Yes. MACsec is supported on the multigigabit access ports and on the 100G uplink module.

Q: Is this model AC or DC powered?
A: The EX5200-48T is an AC-powered model. There is no DC variant of this model.

Q: What is the airflow direction?
A: Airflow is front-to-back only. Back-to-front airflow is not available on this model.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
