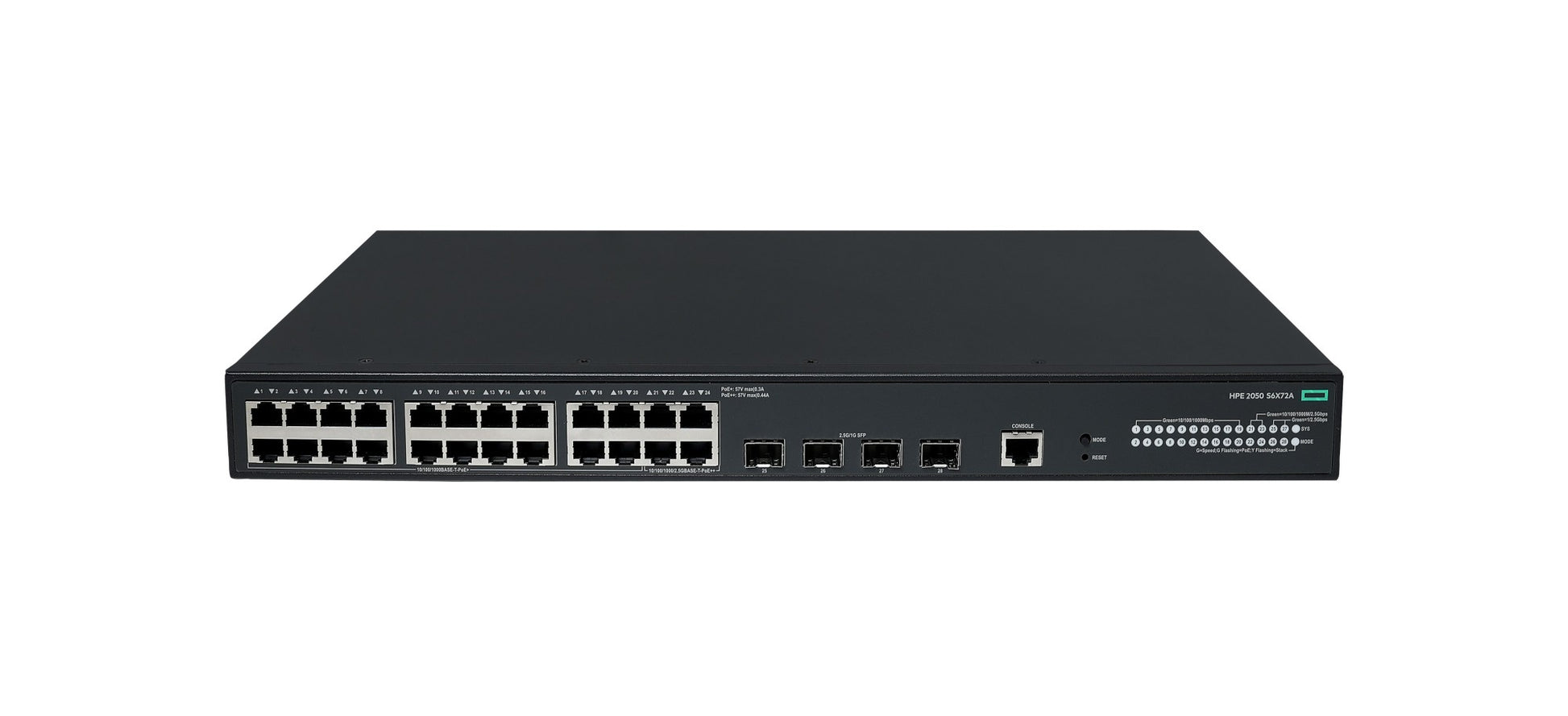

HPE S6X72A | CW 2050 24-Port Gigabit PoE+ Switch, 420W, 4x 2.5G SFP

Name: HPE S6X72A | CW 2050 24-Port Gigabit PoE+ Switch, 420W, 4x 2.5G SFP
Brand: HPE
SKU: S6X72A
Price: 1220.62 AUD
Availability: InStock

Authorised HPE Partner

SKU:S6X72A

In stock:5

$1,220.62 inc. GST

$1,109.65 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The HPE Networking CW 2050 is a fully managed Layer 2 access switch purpose-built for small and medium-sized businesses and branch offices. Delivering 24 x Gigabit PoE+ access ports with a 420W total power budget, plus four 1G/2.5G SFP uplinks, it supports Wi-Fi 7 access points, IP cameras, video phones, and IoT devices with enterprise-grade reliability. Fast PoE, Perpetual PoE, and a PoE watchdog ensure connected devices stay powered even during system reboots or outages.

Backed by 116 Gbps switching capacity and 86.3 Mpps forwarding rate, the CW 2050 delivers non-blocking performance at the access layer. Two-switch IRF stacking simplifies management and boosts resiliency, while 6 kV surge protection suits demanding deployments such as construction sites. Management is handled via Web GUI, CLI, SNMP, REST API, Aruba AirWave, or the embedded CW Dashboard at no additional cost.

Features

- 24 x Gigabit PoE+ access ports (802.3at, 35W per port) for IP phones, cameras, and IoT devices
- Four 1G/2.5G PoE++ ports delivering up to 100W per port — ideal for Wi-Fi 7 access points
- Four dedicated 1G/2.5G SFP uplinks for non-blocking connectivity to aggregation or core switches
- Fast PoE delivers power within seconds of system startup; Perpetual PoE maintains delivery during reboots
- PoE watchdog automatically removes power when a connected device becomes inactive
- Two-switch IRF stacking for high availability and simplified unified management
- Layer 3 static routing and full IPv6 support
- Industry-leading 6 kV surge protection for demanding environments including construction sites
- Embedded CW Dashboard for zero-touch deployment and centralised management — no licence required
- Management via Web GUI, CLI, SNMP, REST API, HPE IMC, and Aruba AirWave
- Multi-layer security: granular ACLs, 802.1X, MAC, Web, RADIUS, and TACACS+ authentication
- Encrypted access via SSHv2, SSL, SNMPv3, and TLS with role-based privileges and audit logging
- Secure Boot verifies digital signatures at startup to block unauthorised software

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 10/100/1000BASE-T PoE+ Access Ports (802.3at, up to 35W per port)
- 4 x 1G/2.5G SFP Uplink Ports
- 4 x 1G/2.5G PoE++ Ports (up to 100W per port)
- 420W Total PoE Power Budget
- Switching Capacity: 116 Gbps
- Forwarding Rate: 86.3 Mpps
- Up to 2-member IRF Stacking
- Layer 2 Managed with Layer 3 Static Routing
- IPv6 Support
- 1 x RJ-45 Console Port
- 6 kV Service-Port Surge Protection
- 1U Rack-mountable Form Factor

FAQs

Q: What is the total PoE power budget on the HPE CW 2050 24-port switch?
A: The CW 2050 S6X72A provides a total PoE power budget of 420W. All 24 access ports support 802.3at PoE+ at up to 35W per port, and four additional 1G/2.5G ports deliver PoE++ at up to 100W per port for high-powered devices such as Wi-Fi 7 access points.

Q: Can the HPE CW 2050 switch support Wi-Fi 7 access points?
A: Yes. The four 1G/2.5G PoE++ uplink/access ports deliver up to 100W each, providing the power and bandwidth headroom required by Wi-Fi 7 access points. The 24 standard PoE+ ports also support Wi-Fi 6 and Wi-Fi 6E APs, IP cameras, and IP phones.

Q: Does the CW 2050 switch require a separate management licence or subscription?
A: No. The CW 2050 includes an embedded CW Dashboard for simplified deployment and centralised management at no additional cost. It also supports Web GUI, CLI, SNMP, REST API, HPE IMC, and Aruba AirWave out of the box.

Q: Is the HPE CW 2050 stackable, and how many units can be stacked?
A: Yes. The CW 2050 supports up to a 2-member stack using HPE's Intelligent Resilient Fabric (IRF) technology, enabling high availability and unified management across both switches as a single logical device.

Q: What security features does the CW 2050 switch include?
A: The CW 2050 supports granular ACLs (IPv4/IPv6, VLAN, and port-based), 802.1X, MAC-based, Web, RADIUS, and TACACS+ authentication. Encrypted management is provided via SSHv2, SSL, SNMPv3, and TLS. Secure Boot verifies digital signatures at startup to prevent unauthorised firmware loading.

Q: Can I purchase the HPE S6X72A switch in Australia from IP Trading?
A: Yes. IP Trading is an Australian-owned and operated IT hardware reseller, in business since 2001. The HPE Networking CW 2050 24-port PoE+ Switch (S6X72A) is available to order directly at iptrading.com.au with local support and competitive pricing.
