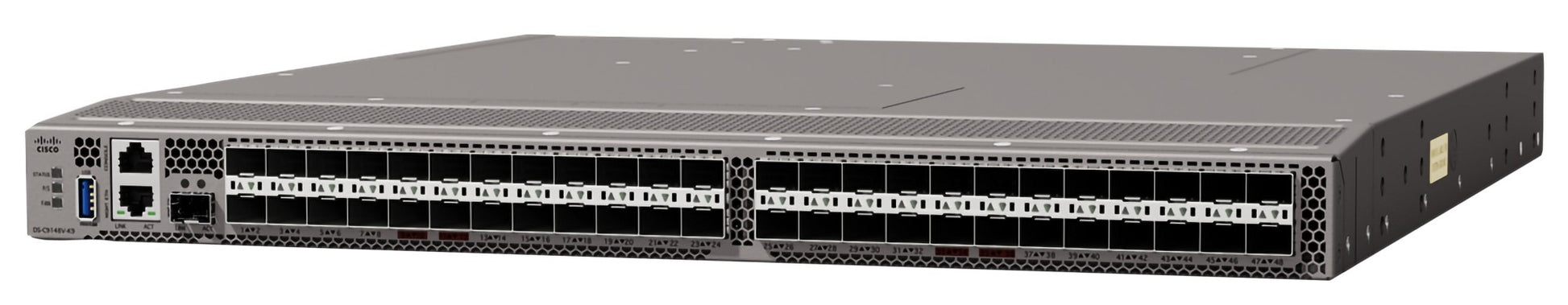

HPE S1V07A | SN6720C 64Gbps Fibre Channel Switch, 48-Port, 24 Active, No SFPs

Authorised HPE Partner

SKU:S1V07A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE SN6720C is a high-performance 64 Gbps Fibre Channel Switch designed to deliver ultra-low-latency SAN connectivity from the server rack to the storage core. With 48 total FC ports (24 ports active) and an aggregate bandwidth of 3 Tbps full-duplex, it scales seamlessly from 24 to 48 active ports in 8-port increments via license upgrade — no hardware changes required. This 1U rack-mountable switch autosenses port speeds at 8/16/32/64 Gbps and supports FC-NVMe workloads without additional hardware investment, making it ideal for enterprise SAN deployments requiring future-ready performance. Note: No SFP transceivers are included; optics must be purchased separately.

Powered by Cisco MDS 9000 NX-OS, the SN6720C delivers enterprise-grade resiliency through optional dual hot-swappable power supplies, back-to-front cooling fans, VSAN resource consolidation, NPIV, and non-disruptive in-service software upgrades (ISSU). Centralised management is supported via Nexus Dashboard Fabric Controller (NDFC), and advanced SAN analytics are available with a Premier license. REST and NX-API programmability enable rapid automation and integration into modern data centre workflows.

Features

- Consistent 64 or 32 Gbps low-latency performance across all active FC ports
- Native FC-NVMe workload support — no hardware upgrades required
- Optional dual hot-swappable power supplies and back-to-front hot-swappable fans for full redundancy
- VSAN technology for cost-effective SAN resource consolidation and high resiliency
- N-Port ID Virtualization (NPIV) for independent virtual machine SAN management
- N-Port Virtualization (NPV) and F-port channelling to scale SANs without domain ID constraints
- Slow-drain detection and isolation, hardware-based ACLs, and smart zoning
- REST and NX-API programmability for flexible SAN automation
- Intelligent diagnostics: ISL/HBA diagnostics, remote SFP diagnostics, remote port beaconing, and FEC
- Non-disruptive in-service software upgrades (ISSU) and stateful process restart
- Centralised management via Nexus Dashboard Fabric Controller (NDFC) with task-based wizards
- HPE C-Series SAN analytics for deep I/O traffic visibility (requires Premier license)
- Smart Licensing Using Policy support from Cisco NX-OS 9.2(2)

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Total FC ports: 48 (24 ports active out of box)
- Per-port line rate: 64 Gbps (autosensing 8/16/32/64 Gbps)
- Aggregate bandwidth: 3 Tbps full-duplex
- SFP+ expansion slots: 48
- SFPs included: None (purchased separately)
- Port scalability: 24 to 48 ports in 8-port increments via upgrade license
- Form factor: 1U rack-mountable
- Operating system: Cisco MDS 9000 NX-OS 9.3(1) or higher
- Weight: approx. 21.83 lb (9.9 kg)

FAQs

Q: How many ports are active on the HPE SN6720C out of the box?
A: The SN6720C ships with 24 ports active. The switch has 48 total FC ports and can be scaled to full 48-port operation in 8-port increments by purchasing port activation upgrade licenses — no hardware replacement needed.

Q: Are SFP transceivers included with the HPE S1V07A?
A: No. The S1V07A (SN6720C 24-port active variant) does not include SFP optics. All 48 SFP+ slots are present, but transceivers must be purchased separately based on your cabling infrastructure (short-wave, long-wave, etc.).

Q: Does the SN6720C support FC-NVMe workloads?
A: Yes. The SN6720C supports FC-NVMe natively. You can transition to FC-NVMe workloads without any hardware upgrades, making it a future-ready investment for next-generation storage architectures.

Q: What operating system and management tools does the SN6720C use?
A: It runs Cisco MDS 9000 NX-OS 9.3(1) or later. Centralised management is provided via Nexus Dashboard Fabric Controller (NDFC). REST APIs and NX-API are also supported for programmatic SAN automation and integration.

Q: Can I buy the HPE SN6720C (S1V07A) in Australia with local support?
A: Yes. iptrading.com.au supplies HPE SAN infrastructure including the SN6720C. We offer competitive pricing and local Australian support for enterprise and data centre deployments.

Q: What redundancy options are available on the HPE SN6720C?
A: The SN6720C supports optional dual hot-swappable power supplies and back-to-front hot-swappable cooling fans for full component redundancy. Non-disruptive in-service software upgrades (ISSU) further minimise planned downtime.
