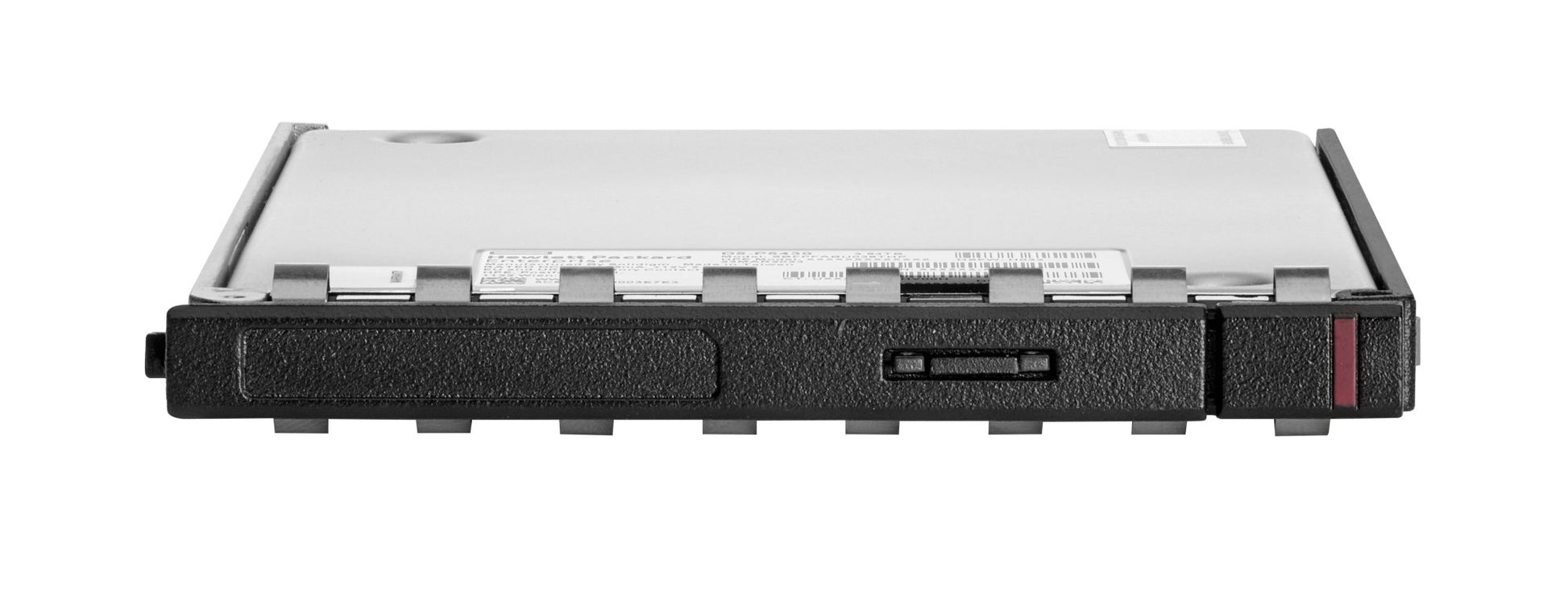

HPE P63938-B21 | P5430 15.36TB NVMe Gen4 EDSFF E3.S SSD, VRO, QLC 3D NAND

Authorised HPE Partner

SKU:P63938-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE P5430 15.36TB NVMe PCIe Gen4 EDSFF E3.S solid state drive delivers exceptional read performance for enterprise workloads including AI, cloud compute, content-delivery networks, and object-based storage. Built on Next Gen QLC 3D NAND technology, this Very Read Optimized (VRO) drive achieves up to 958,736 random read IOPS and maintains low latency under sustained read-heavy workloads — making it ideal for high-density storage deployments in HPE Compute Mainstream Platforms.

The EDSFF E3.S form factor enables remarkable storage density — up to 20 drives in 1U or 36 drives in 2U HPE servers — while hot-plug support with the E3.S Thin Carrier ensures easy serviceability without downtime. Full data-path error detection and SPDM security protocol support provide enterprise-grade reliability and data integrity.

Features

- Next Gen QLC 3D NAND technology delivers high-density 15.36TB capacity in a compact E3.S form factor
- PCIe Gen4 NVMe interface provides exceptional throughput and low latency for data-intensive applications
- Very Read Optimized (VRO) endurance profile purpose-built for read-heavy enterprise workloads
- EDSFF E3.S form factor supports up to 20 drives in 1U or 36 drives in 2U HPE servers for maximum storage density
- Hot-pluggable with E3.S Thin Carrier for easy, non-disruptive drive replacement
- Full data-path error detection ensures data accuracy and integrity across the storage pipeline
- SPDM (Security Protocol and Data Model) support provides enhanced cryptographic security
- Suited for AI, cloud compute, CDNs, analytics, databases, and object-based storage workloads
- Supported on HPE Compute Mainstream Platforms — see HPE QuickSpecs for full compatibility list
- 3-year standard warranty coverage included

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 15.36 TB
- Interface: NVMe (PCIe Gen4)
- Form Factor: EDSFF E3.S (E3S EC1)
- Workload Profile: Very Read Optimized (VRO)
- NAND Type: QLC 3D NAND
- Random Read IOPS (4KiB, Q=16): 148,022
- Max Random Read IOPS (4KiB, Q=256): 958,736
- Random Write IOPS (4KiB, Q=16): 135,419
- Max Random Write IOPS (4KiB, Q=256): 144,081
- Endurance: ≤ 0.51 DWPD (VRO)
- Lifetime Writes: 14,340 TBW
- Power Consumption: 21W
- Height: 7.7 mm
- Carrier Type: E3.S Thin Carrier
- Hot Pluggable: Yes
- Security: SPDM (Security Protocol and Data Model) support
- Warranty: 3-Year (subject to maximum usage/lifetime write limits)

FAQs

Q: What servers is the HPE P5430 15.36TB NVMe Gen4 SSD compatible with?
A: The HPE P5430 EDSFF E3.S SSD is supported on HPE Compute Mainstream Platforms. For a complete list of compatible servers, refer to the HPE QuickSpecs document for this product family. Always verify compatibility with your specific server model before purchasing.

Q: What is the EDSFF E3.S form factor and why does it matter?
A: EDSFF (Enterprise and Data Centre SSD Form Factor) E3.S is a next-generation SSD form factor designed for high-density server deployments. It enables up to 20 drives per 1U or 36 drives per 2U in compatible HPE servers — significantly higher density than traditional 2.5-inch or M.2 drives — while supporting hot-plug serviceability.

Q: What workloads is the HPE P5430 15.36TB VRO SSD best suited for?
A: This drive is optimised for Very Read Optimized (VRO) workloads where reads vastly outnumber writes. Ideal use cases include AI inference, cloud compute, content-delivery networks (CDNs), databases with heavy read queries, analytics platforms, and object-based storage where capacity and read throughput are the primary requirements.

Q: How does QLC 3D NAND compare to TLC NAND in enterprise SSDs?
A: QLC (Quad-Level Cell) 3D NAND stores four bits per cell, delivering significantly higher storage density and lower cost per gigabyte than TLC (Triple-Level Cell). The trade-off is lower write endurance, which is why QLC drives like the P5430 are purpose-built for read-heavy (VRO) workloads where write cycles are limited. For mixed or write-intensive workloads, HPE offers alternative endurance profiles.

Q: Can I purchase the HPE P5430 15.36TB NVMe SSD in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller supplying HPE server storage solutions including the P5430 EDSFF E3.S SSD. Contact our team for pricing, availability, and volume purchasing options for Australian businesses.

Q: Does the HPE P5430 support hot-plug replacement?
A: Yes. The HPE P5430 is hot-pluggable using the E3.S Thin Carrier, allowing drives to be replaced without powering down the server. This minimises downtime and supports continuous availability in enterprise and data centre environments.
