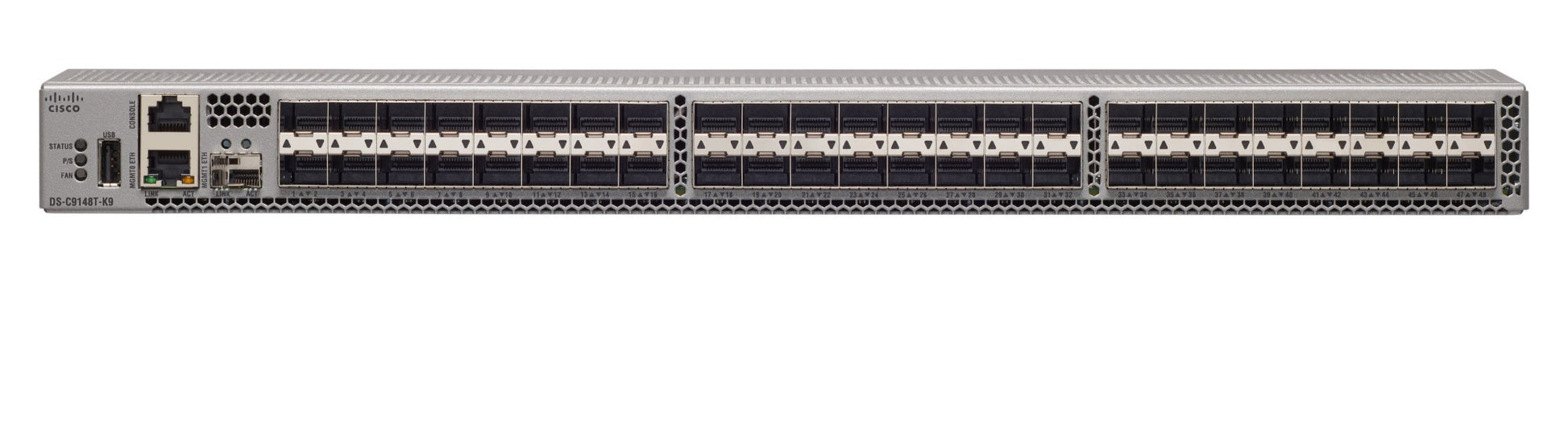

HPE R0P14A | SN6620C 48-Port 32Gb Fibre Channel Switch, 48x SW SFP+

Authorised HPE Partner

SKU:R0P14A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE SN6620C 48-Port 32Gb Fibre Channel Switch is a 1U SAN switch that connects server racks to the storage core with consistent low-latency 32Gbps performance on every port. This variant ships with all 48 ports active and populated with 48 x 32Gb SW SFP+ transceivers, so it is ready to deploy without additional port licences or optics. It is FC-NVMe ready, giving SAN environments a path to NVMe over Fibre Channel without a hardware upgrade.

The switch offers up to 1536 Gbps of aggregate bandwidth, redundant power supplies and fans, and supports 32Gb, 16Gb and 8Gb optics with autosensing 4/8/16/32 Gbps ports. Management is available through CLI, SSH, SNMP, SMI-S, REST and NX-API, with fabric-wide control via Nexus Dashboard Fabric Controller (NDFC). It interoperates with other C-series MDS-based SN6600C and SN6640C switches in core-edge deployments.

Features

- Consistent low-latency 32Gbps performance across every FC port
- FC-NVMe ready, with no hardware upgrade needed in the SAN
- Pay-as-you-grow scaling from 24 to 48 ports in 8-port increments via on-demand port activation licences
- NPIV and NPV, and F-port channelling for SAN scaling
- FC link encryption and enhanced buffer-to-buffer credits
- REST and NX-API for programmability
- Interoperates with other C-series MDS-based SN6600C/SN6640C switches in core-edge deployments

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 active 32Gb Fibre Channel ports (SFP+), autosensing 4/8/16/32 Gbps
- Up to 1536 Gbps aggregate bandwidth
- Ships with 48 x 32Gb SW SFP+ transceivers
- Supports 32Gb, 16Gb and 8Gb optics
- 1U rack-mountable form factor
- 2 redundant power supplies and 4 fans
- AC input 100-240 V, 50-60 Hz
- Management via SNMPv1/v3, SMI-S, SSH, CLI, REST/NX-API and Nexus Dashboard Fabric Controller (NDFC)
- Dimensions approx. 17.3 in W x 1.7 in H x 22.3 in D

FAQs

Q: Does this SN6620C include transceivers?
A: Yes. This variant ships with all 48 ports active and 48 x 32Gb SW SFP+ transceivers included.

Q: Is the switch FC-NVMe ready?
A: Yes. It is FC-NVMe ready, so NVMe over Fibre Channel can be used in the SAN without a hardware upgrade.

Q: Which link speeds does it support?
A: The ports autosense 4/8/16/32 Gbps, and the switch supports 32Gb, 16Gb and 8Gb optics.

Q: How is the switch managed?
A: Via CLI, SSH, SNMPv1/v3 and SMI-S, with REST and NX-API for programmability. Fabric-wide management is available through Nexus Dashboard Fabric Controller (NDFC).

Q: Can it be used with other SN6600C or SN6640C switches?
A: Yes. It interoperates with other C-series MDS-based SN6600C and SN6640C switches in core-edge deployments.

Q: Does it have redundant power?
A: Yes. It has 2 redundant power supplies and 4 fans in a 1U chassis, with AC input of 100-240 V, 50-60 Hz.
