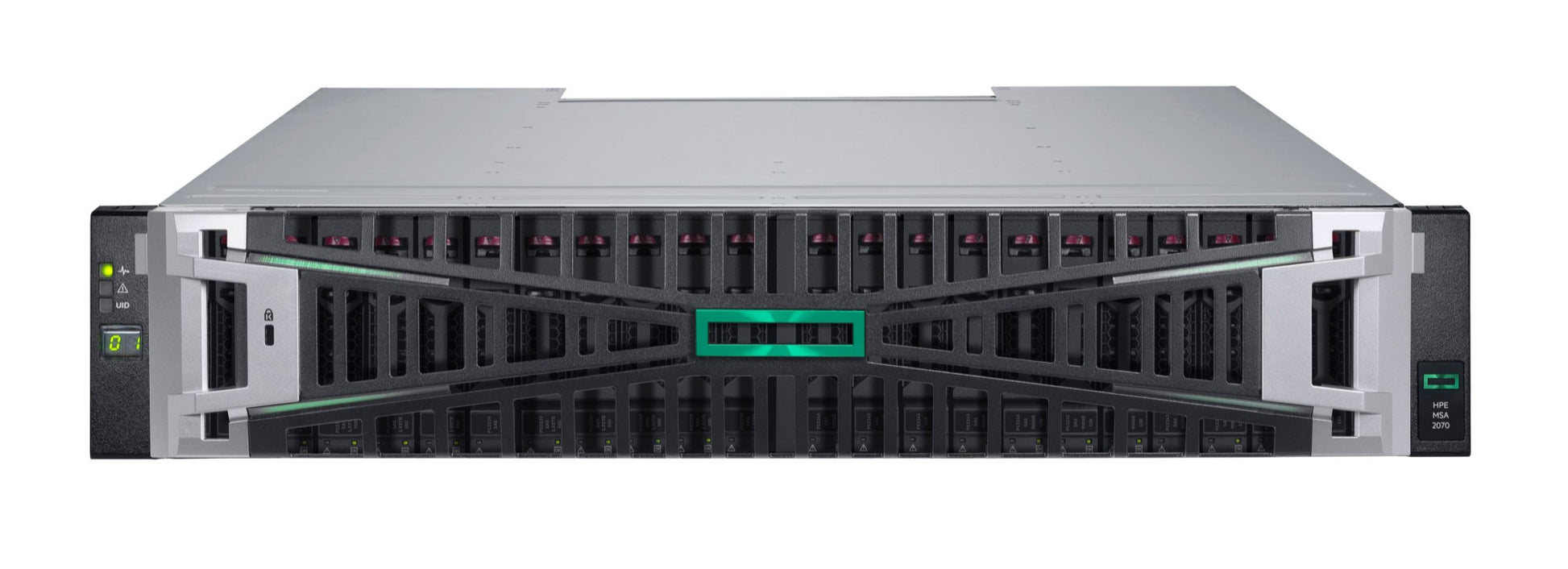

HPE S1H49A | MSA 2070 16Gb Fibre Channel SFF SAN Storage, TAA

Authorised HPE Partner

SKU:S1H49A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MSA 2070 16Gb Fibre Channel SFF SAN storage array is a TAA-compliant 2U block storage system built around 24 x 2.5-inch drive bays. It includes two controllers with eight 16Gb Fibre Channel host ports in total, 48GB of data cache and system memory per array, and two redundant 580W Flex Platinum power supplies. It suits shared storage deployments for virtualisation, databases and general business applications on an existing Fibre Channel SAN.

The array supports HDD and SSD drives, including self-encrypting drive options, and scales with up to nine 12Gb SAS expansion drive enclosures to a maximum raw capacity of 7.37 PB with all SFF drives. RAID levels 1, 5, 6, 10 and MSA-DP+ are supported, with MSA-DP+ providing integrated sparing, faster rebuilds and incremental disk group expansion. Management is available through a web-based utility, CLI and RESTful interfaces. TAA-compliant arrays must be ordered with at least six factory-integrated (CTO) MSA drives.

Features

- Next-generation MSA Gen7 shared storage with up to 2x more IOPS than the prior generation
- Supports HDD and SSD drives, including self-encrypting drive (SED) options
- Advanced MSA-DP+ RAID with integrated sparing, faster rebuilds and incremental disk group expansion
- Redundant web-based management (MSA Storage Management Utility v4), CLI and RESTful (Redfish/Swordfish) interfaces
- 64 snapshots standard, upgradeable to 512 per array with the MSA Advanced Data Services License
- Dual controllers and redundant power supplies for high availability
- TAA-compliant for US federal procurement

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U SFF array enclosure with 24 x 2.5-inch drive bays
- 2 controllers per array
- 8 x 16Gb Fibre Channel host ports per array
- 48GB data (read/write) cache and system memory per array
- Block access storage
- RAID: NRAID/RAID 0 (read cache only), 1, 5, 6, 10, MSA-DP+
- Up to 9 expansion drive enclosures over 12Gb SAS
- Up to 240 SFF drives per array (array plus 9 drive enclosures)
- Max raw capacity 737.28 TB per SFF enclosure, 7.37 PB per array (all SFF)
- Max read cache per array: 8.34 TB
- Two pools, 4 PiB addressable per pool
- SFF SSD capacities: 1.92 TB, 3.84 TB, 7.68 TB
- SFF 10K HDD capacities: 1.2 TB, 1.8 TB, 2.4 TB
- 2 x 2U Flex 580W 80+ Platinum power supplies, 100-240 V AC, 50-60 Hz
- Operating temperature: ASHRAE A3, 5 to 40 C
- Dimensions: 8.9 cm (H) x 44.5 cm (W) x 66.9 cm (D)
- Weight: 30 kg fully populated SFF controller enclosure
- TAA-compliant

FAQs

Q: What host connectivity does the MSA 2070 16Gb Fibre Channel SFF array provide?
A: It has two controllers with eight 16Gb Fibre Channel host ports in total per array, with four ports on each controller.

Q: Does this array ship with drives?
A: TAA-compliant arrays must be ordered with at least six factory-integrated (CTO) MSA drives.

Q: How can I expand capacity?
A: The array supports 0 to 9 expansion drive enclosures over 12Gb SAS, for up to 240 SFF drives and a maximum raw capacity of 7.37 PB with all SFF drives.

Q: Which drive types are supported?
A: It supports SFF SSDs (1.92 TB, 3.84 TB, 7.68 TB) and 10K SFF HDDs (1.2 TB, 1.8 TB, 2.4 TB), including self-encrypting drive options.

Q: Which RAID levels are supported?
A: NRAID/RAID 0 (read cache only), RAID 1, 5, 6, 10 and MSA-DP+, which offers integrated sparing and faster rebuilds.

Q: What is the difference between this and other MSA 2070 models?
A: This SKU is the 2U SFF model with 16Gb Fibre Channel host ports and is TAA-compliant. Other MSA 2070 variants use different host interfaces or drive form factors.
