HPE K2Q47A | Premier Flex MPO to 4x LC OM4 Fibre Breakout Cable, 15m

HPE K2Q47A | Premier Flex MPO to 4x LC OM4 Fibre Breakout Cable, 15m

Authorised HPE Partner

SKU:K2Q47A

$2,503.38 inc. GST
$2,275.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The HPE Premier Flex MPO to 4x LC OM4 multimode fibre breakout cable is a 15 m bend-insensitive assembly with a female MPO (UPC) connector on one end and four duplex LC (UPC) connectors on the other. It is built for data centre, SAN and LAN links, including Fibre Channel and 10/25GbE, letting you fan a single MPO port out to four separate duplex LC connections.

The cable uses OM4 50/125um graded-index multimode fibre with a blue LSZH/OFNR jacket and a 0.5 dB optical insertion loss. Its bend-optimised design supports a minimum recommended bend radius of 7.5 mm, which helps with tight routing in dense racks, and it supports reaches of 150 m at 10GbE and 4x25.78Gb, and 100 m at 4x28.05Gb Fibre Channel.

Features

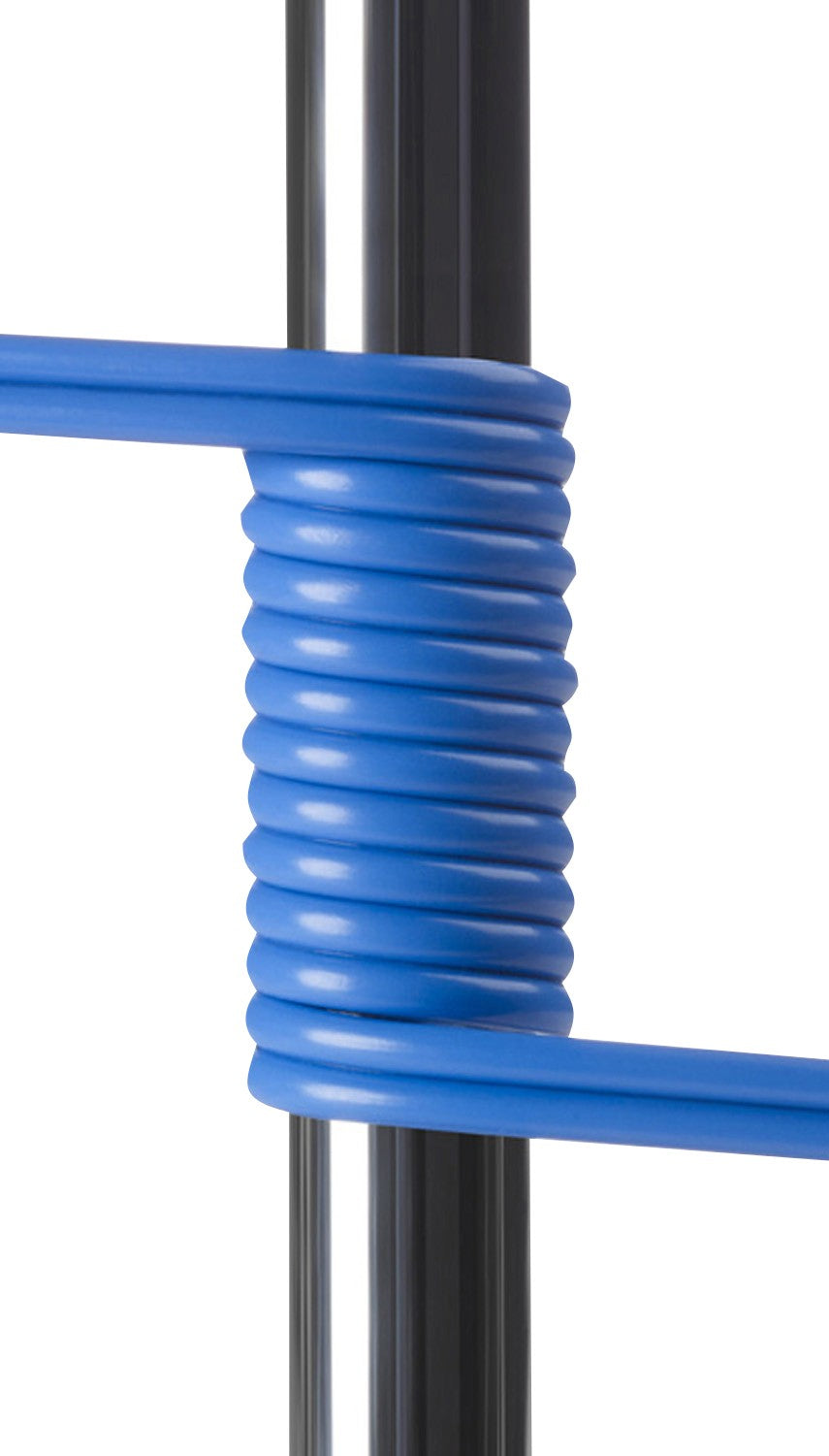

- Bend-insensitive design with up to 10 times better bend performance than existing fibre cables, according to HPE
- Suited to data centre, SAN and LAN Fibre Channel and 10GbE applications
- Improved clarity and bandwidth for longer reach, higher data rates and fewer transmission errors
- Easy installation and future-proof design
- Tested and qualified across HPE Fibre Channel and Ethernet product families

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Length: 15 m
- Connectors: MPO (female, UPC) to 4 x duplex LC (UPC) breakout
- Fibre: OM4 50/125um graded-index multimode, bendable
- Core diameter: 50um +/- 3um; cladding diameter: 125um +/- 2um
- Bandwidth: 4700 MHz-km at 850nm (laser)
- Jacket: Blue, OFNR LSZH thermoplastic
- Optical insertion loss: 0.5 dB
- Minimum recommended bend radius: 7.5 mm
- Maximum reach: 150 m at 4x10GbE and 4x25.78Gb
- Maximum reach: 100 m at 4x28.05Gb FC, 4x14.025Gb FC and 4x26.56Gb PAM4
- Compliance: RoHS compliant

FAQs

Q: What type of connectors does this cable use?
A: It has a female MPO (UPC) connector on one end and four duplex LC (UPC) connectors on the other end, making it a one-to-four breakout cable.

Q: What fibre grade is this cable?
A: It uses OM4 50/125um graded-index multimode fibre with 4700 MHz-km bandwidth at 850nm.

Q: What distances does it support?
A: Maximum reach is 150 m at 4x10GbE and 4x25.78Gb, and 100 m at 4x28.05Gb Fibre Channel, 4x14.025Gb Fibre Channel and 4x26.56Gb PAM4.

Q: Is it suitable for tight rack routing?
A: Yes. The bend-insensitive design has a minimum recommended bend radius of 7.5 mm, with under 0.2 dB loss at that radius over two turns at 850 nm.

Q: What is the cable length and jacket type?
A: This SKU is 15 m long with a blue OFNR LSZH thermoplastic jacket.

Q: What applications is it designed for?
A: It is designed for data centre, SAN and LAN links such as Fibre Channel and 10/25GbE, where a single MPO port needs to break out to four duplex LC connections.
