• HPE 721076-B21 QSFP+ to 4x10G SFP+ AOC 15m black cable with silver connectors
1 1

HPE

HPE 721076-B21 | BladeSystem c-Class QSFP+ to 4x 10G SFP+ AOC, 15m

HPE 721076-B21 | BladeSystem c-Class QSFP+ to 4x 10G SFP+ AOC, 15m

Authorised HPE Partner

721076-B21

Stock Status: Enquire

$5,113.13 inc. GST
$4,648.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

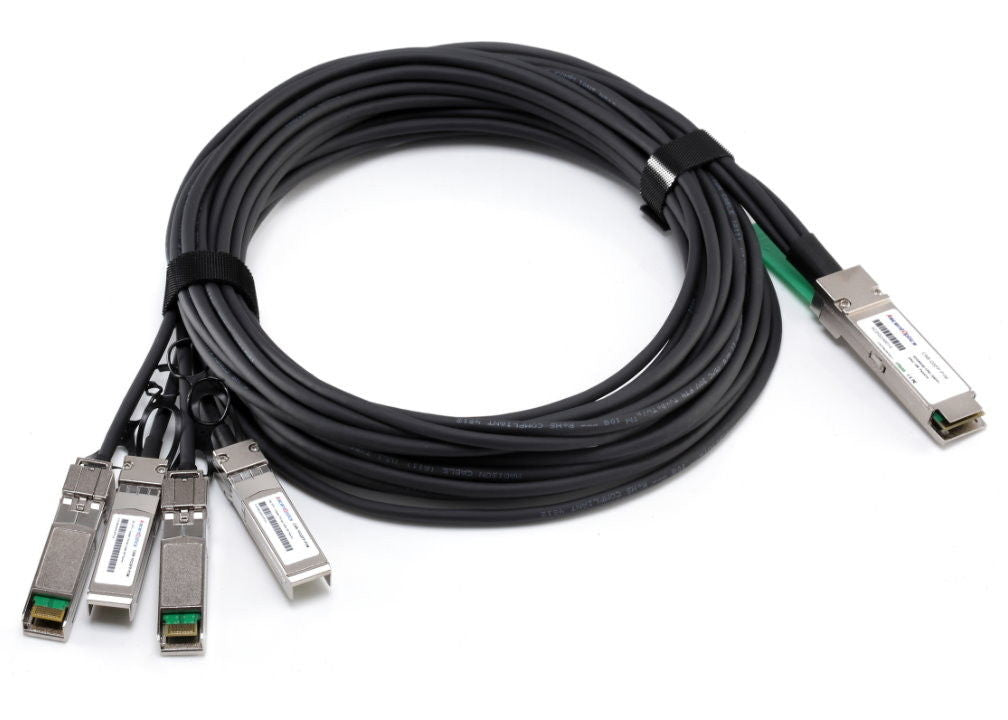

The HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ active optical cable (AOC) in a 15m length splits a single 40G QSFP+ port into four independent 10GbE SFP+ connections. This factory-terminated breakout cable suits HPE BladeSystem c-Class and FlexFabric environments where switch or interconnect module ports need to fan out to multiple 10G devices over longer distances.

The active optical design uses embedded signal conditioning, so no separate transceivers are required. With a 15m reach it covers longer rack-to-rack runs than passive copper DAC cables, while the slim fibre construction helps keep cable pathways tidy.

Features

- Breaks out a single 40G QSFP+ port into four independent 10G SFP+ links
- Active optical design with embedded signal conditioning, so no separate transceivers are needed
- Factory-terminated assembly with no field polishing
- Suited to longer runs than passive copper DAC cables

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Length: 15 m (49.21 ft)
- Connector 1: 1 x QSFP+ (40Gb/s)
- Connector 2: 4 x SFP+ (4 x 10Gb/s)
- Cable type: Active Optical Cable (fibre optic)
- Weight: 0.34 kg (0.74 lb)
- QSFP+ cable diameter: 3.4 mm; SFP+ cable diameter: 3 mm
- Minimum bend radius: 25 mm (QSFP+), 30 mm (SFP+)
- BER: 10E-15 max
- Time delay: 1.475 nsec/ft
- Compatibility: HPE BladeSystem c-Class enclosure

FAQs

Q: What does this cable connect?
A: It connects one 40G QSFP+ port to four 10G SFP+ ports, splitting the 40Gb/s link into four 10GbE connections over a 15m active optical cable.

Q: Is this compatible with HPE BladeSystem c-Class?
A: Yes, it is designed for use with HPE BladeSystem c-Class enclosures and FlexFabric environments.

Q: Do I need separate transceivers?
A: No. The optics are built into the cable ends as an active optical assembly, so no separate SFP+ or QSFP+ transceivers are required.

Q: How does this differ from a passive DAC breakout cable?
A: This is an active optical cable with embedded signal conditioning, which supports longer runs than passive copper DAC cables. This SKU is the 15m length.

Q: What is the minimum bend radius?
A: The minimum bend radius is 25 mm on the QSFP+ side and 30 mm on the SFP+ side.

Q: Is this cable TAA compliant?
A: No, this cable is not TAA compliant.
