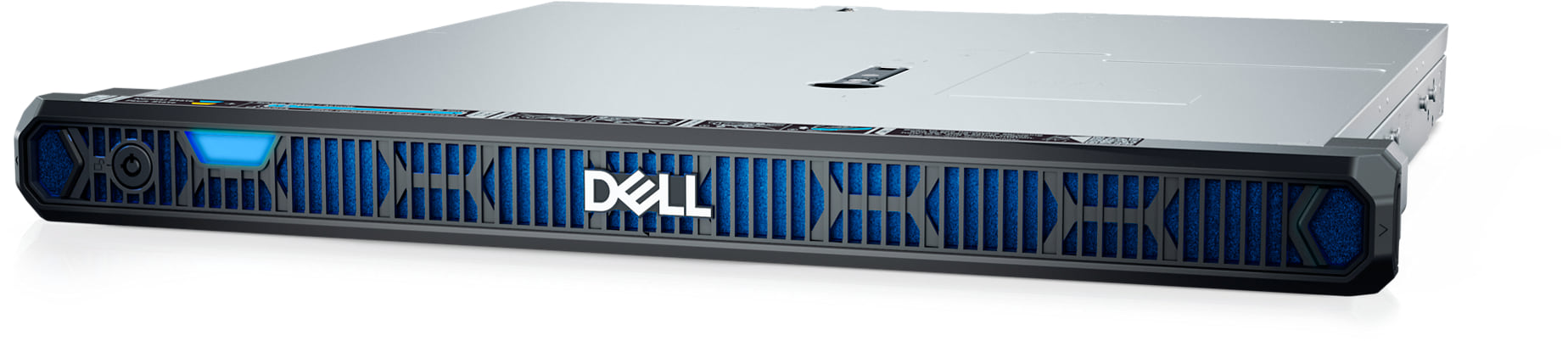

Dell XR5610 | PowerEdge XR5610 1U Rugged Edge Rack Server, Xeon

Authorised Dell Partner

SKU:XR5610

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Dell PowerEdge XR5610 is a rugged, short-depth 1U single-socket rack server built for edge deployments in telecom and 5G vRAN, retail, manufacturing, video monitoring and military or defence environments. Powered by a 4th or 5th Gen Intel Xeon Scalable or Edge-Enhanced processor with up to 32 cores, it delivers dense compute in a compact 463mm chassis designed to withstand shock, dust, vibration and extreme temperatures.

With 8 DDR5 RDIMM slots supporting up to 1TB, up to four front-accessible 2.5-inch SAS, SATA or NVMe bays, PCIe Gen5 expansion and an OCP 3.0 slot, the XR5610 is a flexible platform for vRAN, ORAN and IoT aggregation workloads. Redundant AC or DC power supplies and iDRAC9 management with Redfish API support make it well suited to remote and lights-out sites. It is the successor to the PowerEdge XR11.

Features

- Rugged, short-depth design withstands shock, dust, vibration and extreme temperatures
- Optimised for telco and 5G, vRAN and ORAN, retail, manufacturing, video monitoring and IoT aggregation
- Field-ready for military and defence applications, including remote support
- Up to 50% more memory bandwidth than the previous generation thanks to DDR5
- Embedded iDRAC9, iDRAC Direct, OpenManage Enterprise and CloudIQ for PowerEdge integration
- Advanced security features and energy-efficiency optimisations

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U short-depth rugged rack server, 463mm chassis
- Processor: 1 x 4th or 5th Gen Intel Xeon Scalable or Edge-Enhanced with vRAN Boost, up to 32 cores
- Memory: 8 x DDR5 RDIMM slots, up to 1TB, up to 5600 MT/s (5th Gen CPU)
- Storage: up to 4 x 2.5-inch SAS, SATA or NVMe SSD front bays
- Expansion: up to 2 x PCIe Gen5 slots (PCIe 4.0 with Edge-Enhanced CPU) plus 1 x OCP 3.0 slot
- Storage controllers: PERC H965i, PERC H965e, HBA355e (external HBA)
- Power: two redundant AC or DC power supply units
- Configurations: rear-accessed and front-accessed options
- Management: iDRAC9 with Redfish API, OpenManage Enterprise support

FAQs

Q: What workloads is the Dell PowerEdge XR5610 designed for?
A: It targets edge deployments including telecom and 5G vRAN or ORAN, retail, manufacturing, video monitoring, IoT aggregation and military or defence applications.

Q: What processors does the XR5610 support?
A: It supports a single 4th or 5th Gen Intel Xeon Scalable or Edge-Enhanced processor with vRAN Boost, with up to 32 cores.

Q: How much memory can the XR5610 take?
A: It has 8 DDR5 RDIMM slots supporting up to 1TB, with speeds up to 5600 MT/s when paired with a 5th Gen processor.

Q: What storage options are available?
A: Up to four 2.5-inch SAS, SATA or NVMe SSD bays are available at the front, with PERC H965i, PERC H965e and HBA355e controller options.

Q: Does it support redundant power?
A: Yes, it uses two redundant power supply units, available in AC or DC configurations to suit telco and field sites.

Q: How is the XR5610 managed remotely?
A: It includes iDRAC9 with Redfish API support and works with OpenManage Enterprise and CloudIQ for PowerEdge for remote monitoring and lifecycle management.
