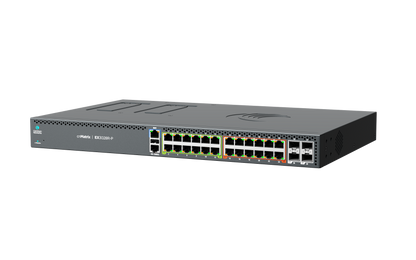

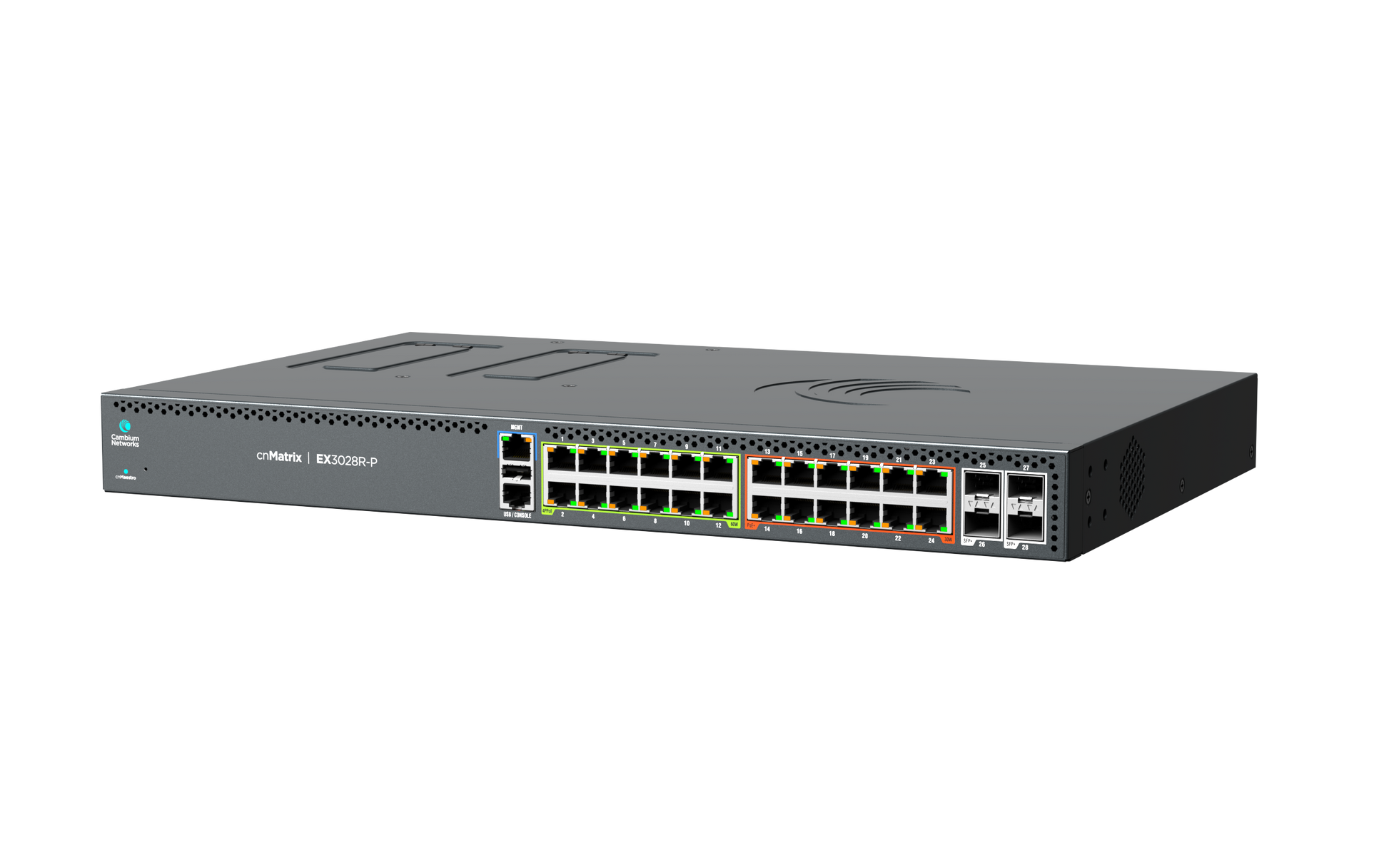

• Cambium cnMatrix EX3028R-P gray metal switch with Ethernet ports and lights

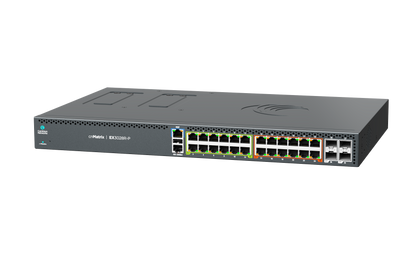

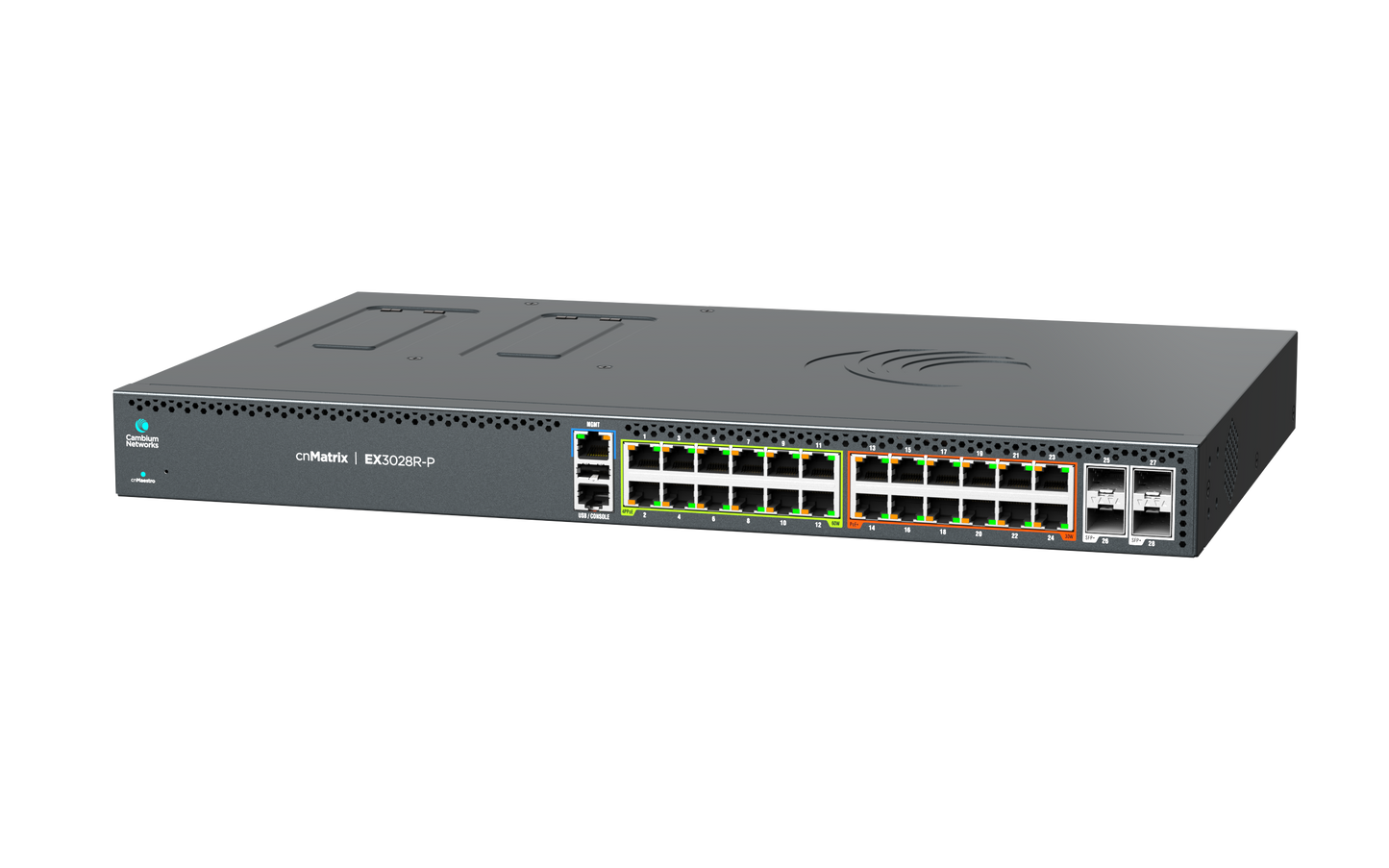

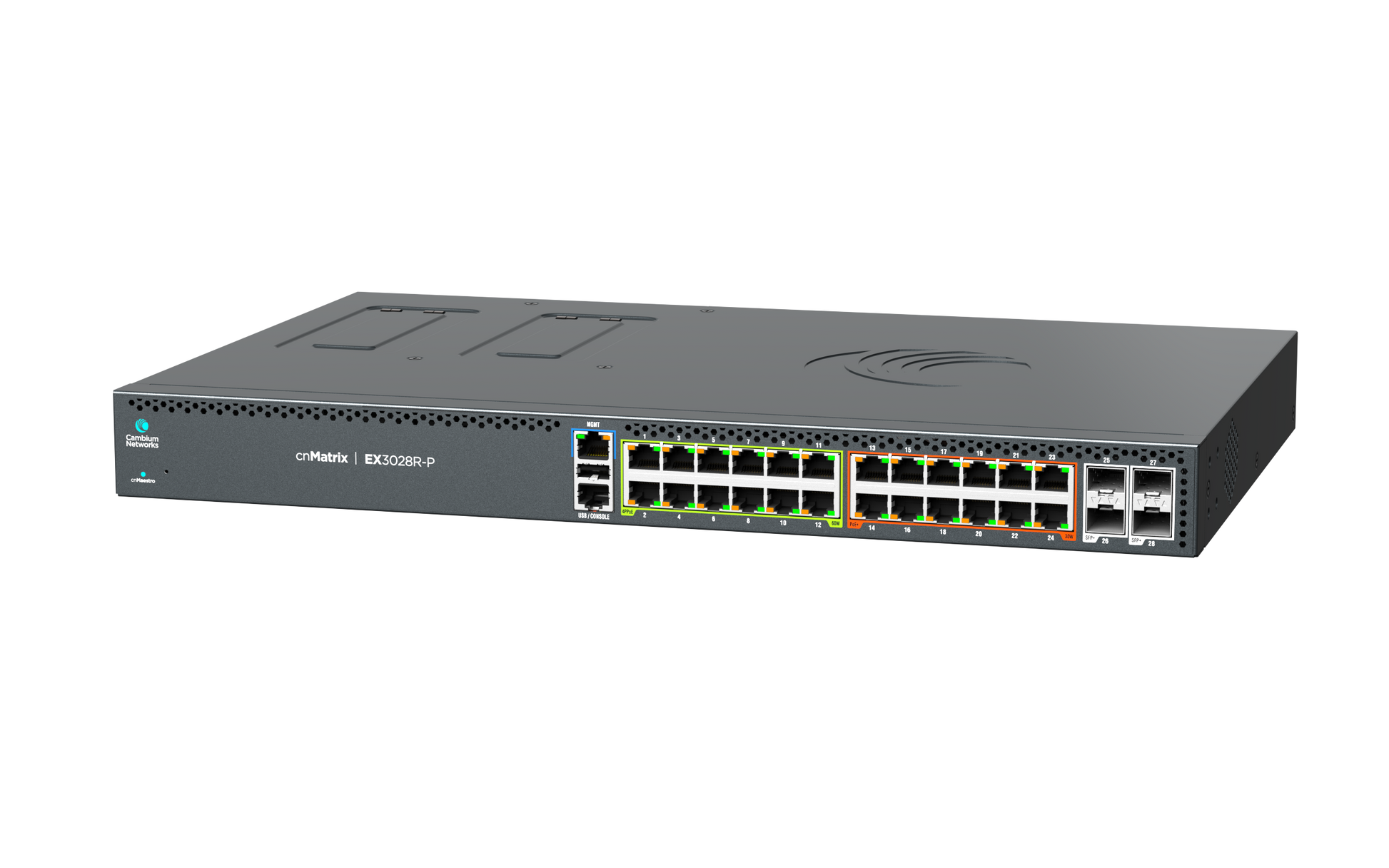

  • Cambium cnMatrix EX3028R-P dark gray switch with 24x1GbE PoE ports and 4x10G SFP+

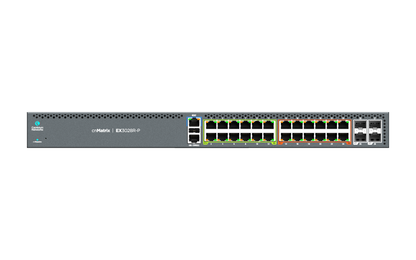

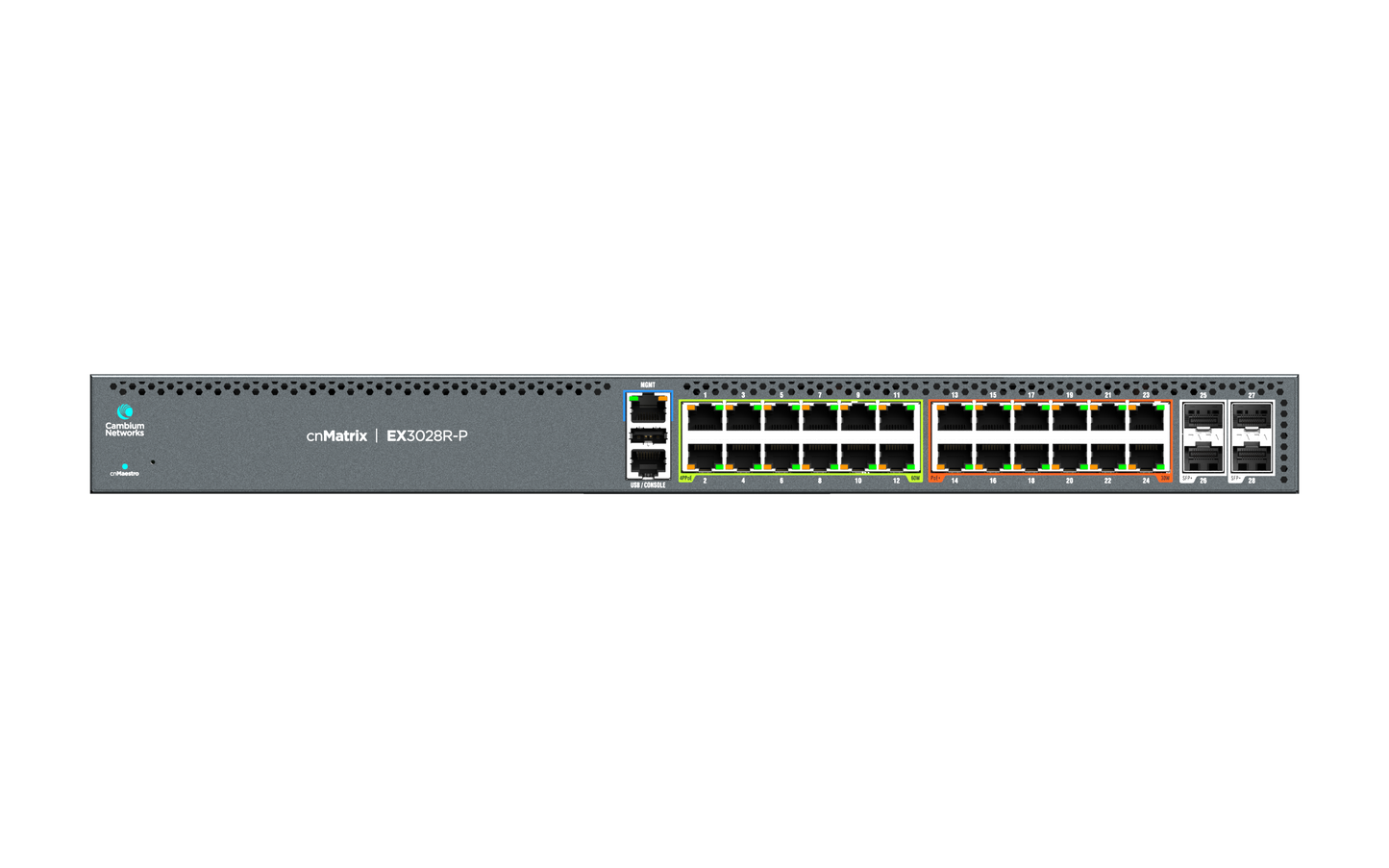

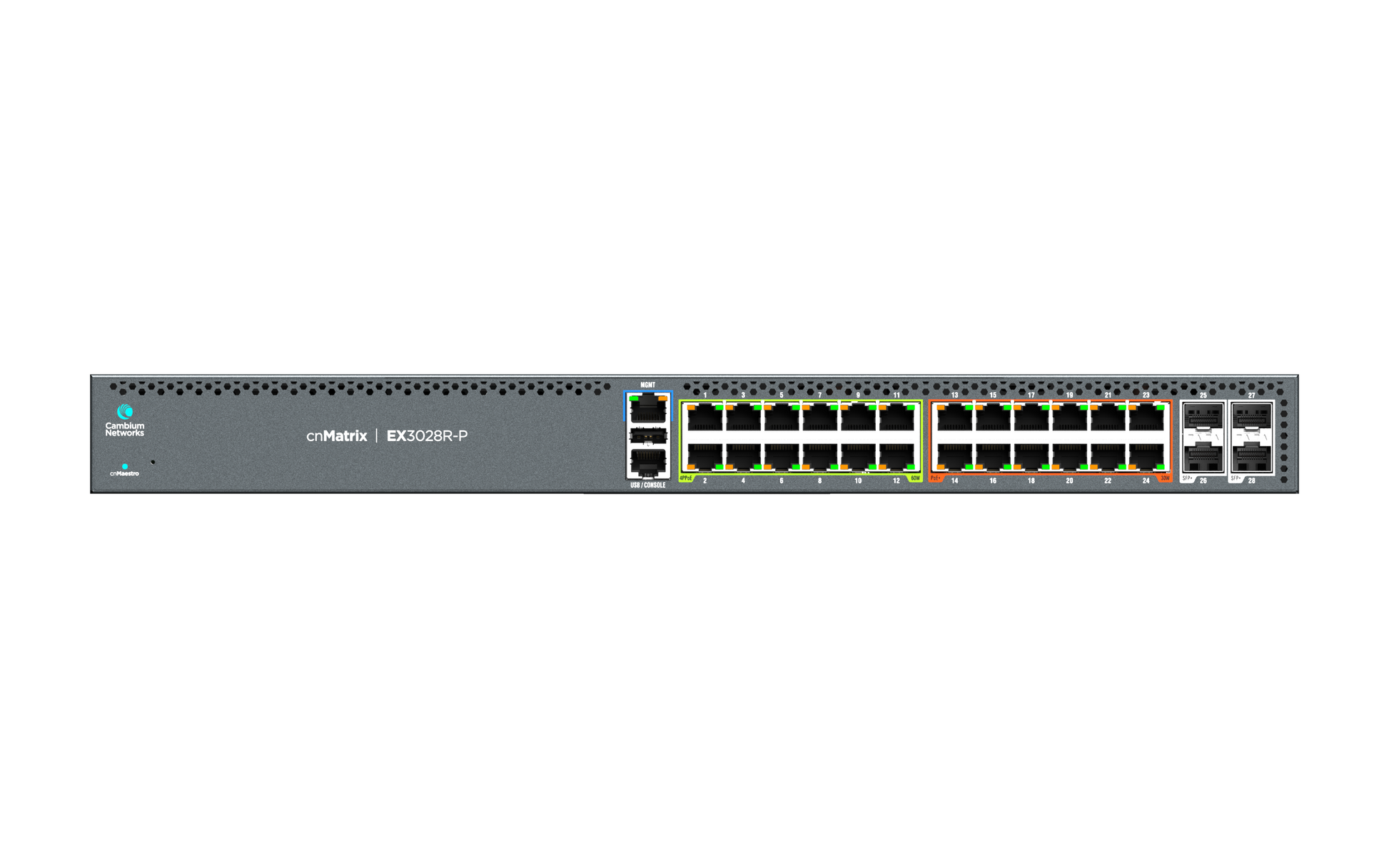

  • Cambium cnMatrix EX3028R-P PoE switch with Ethernet ports and LEDs

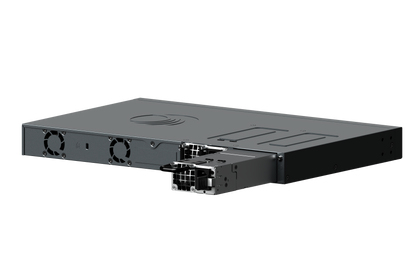

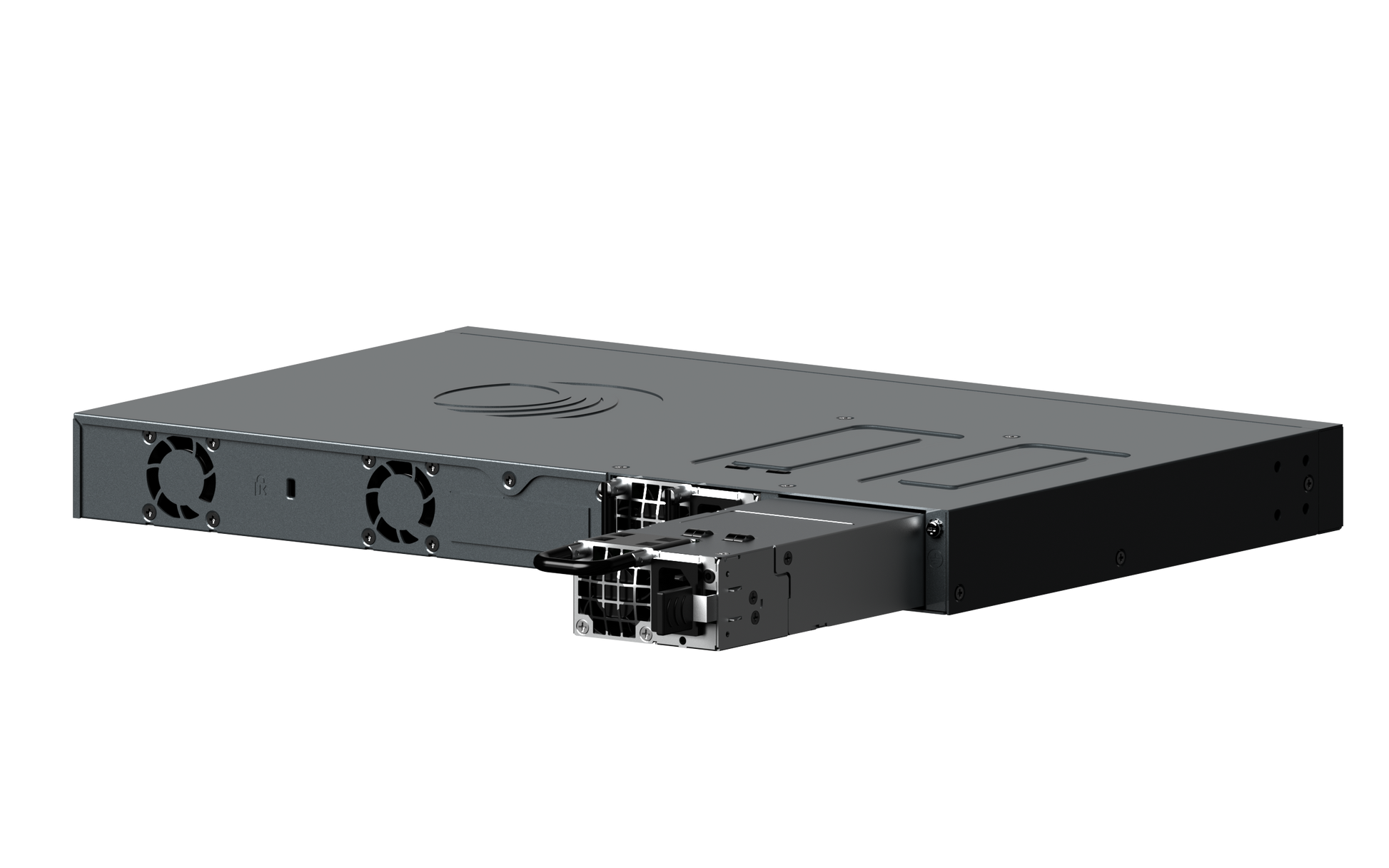

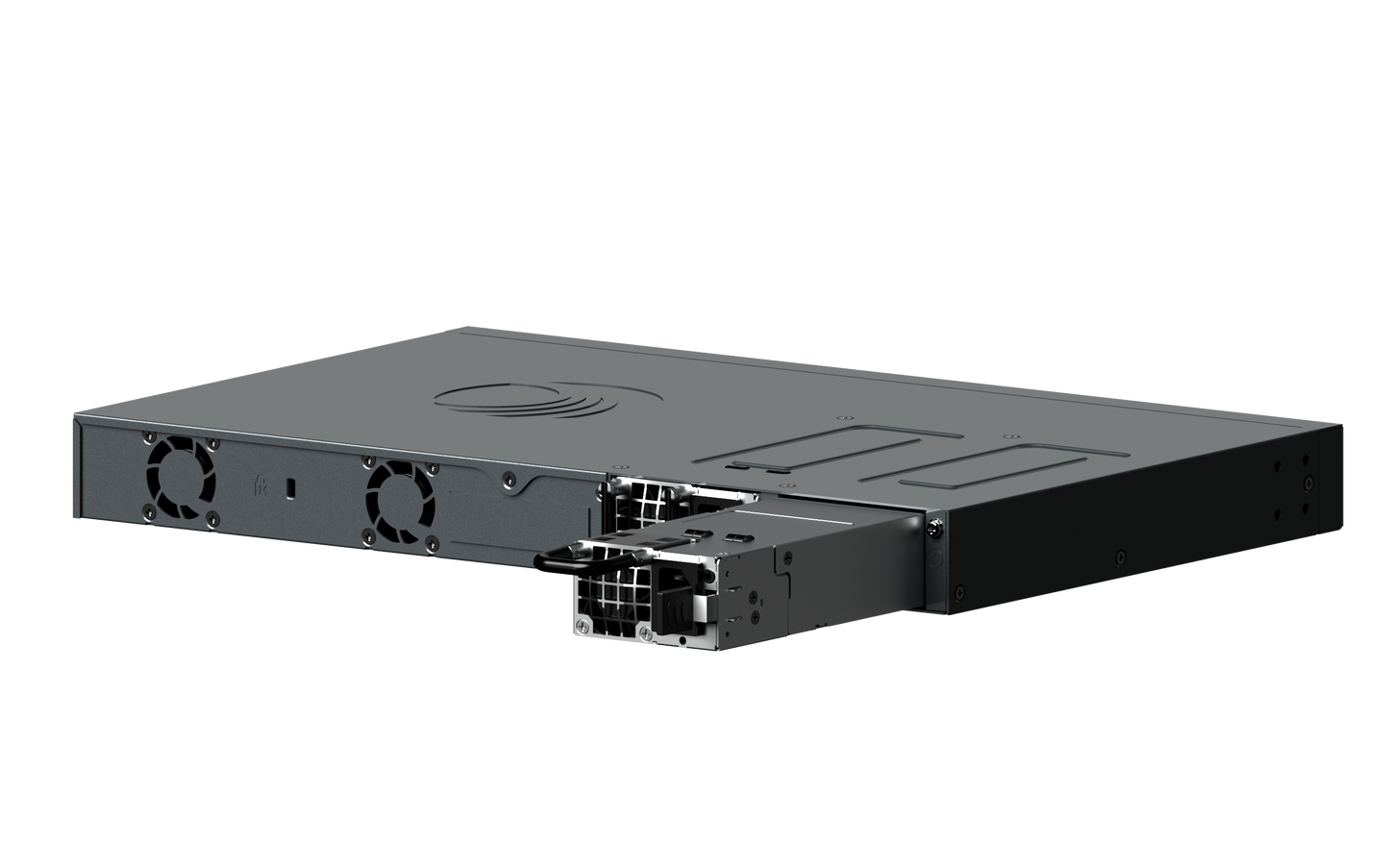

  • Cambium cnMatrix EX3028R-P black metal rack with side fans and ports

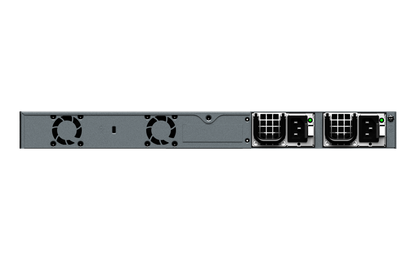

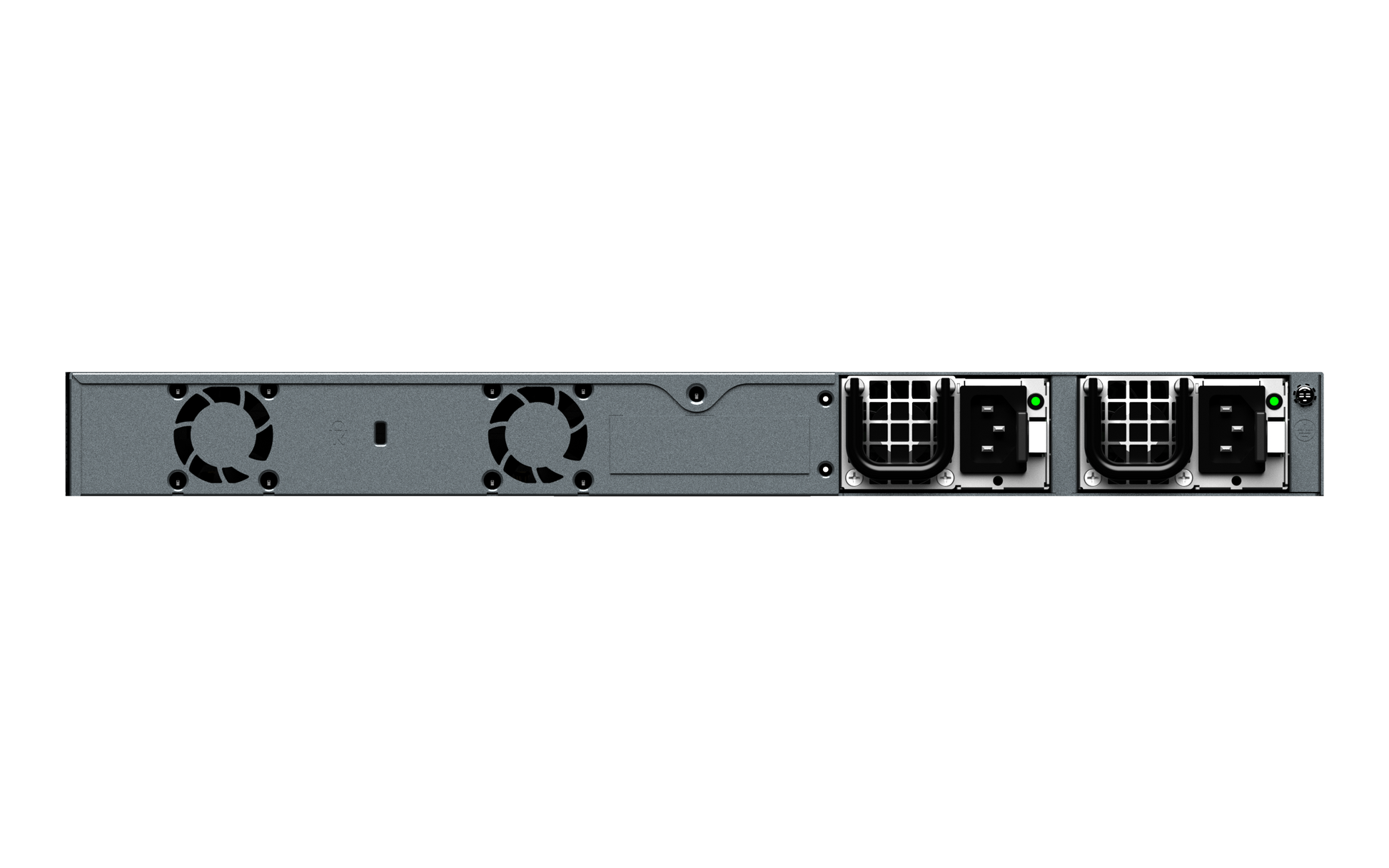

  • Back of Cambium cnMatrix EX3028R-P server rack with fans and power ports

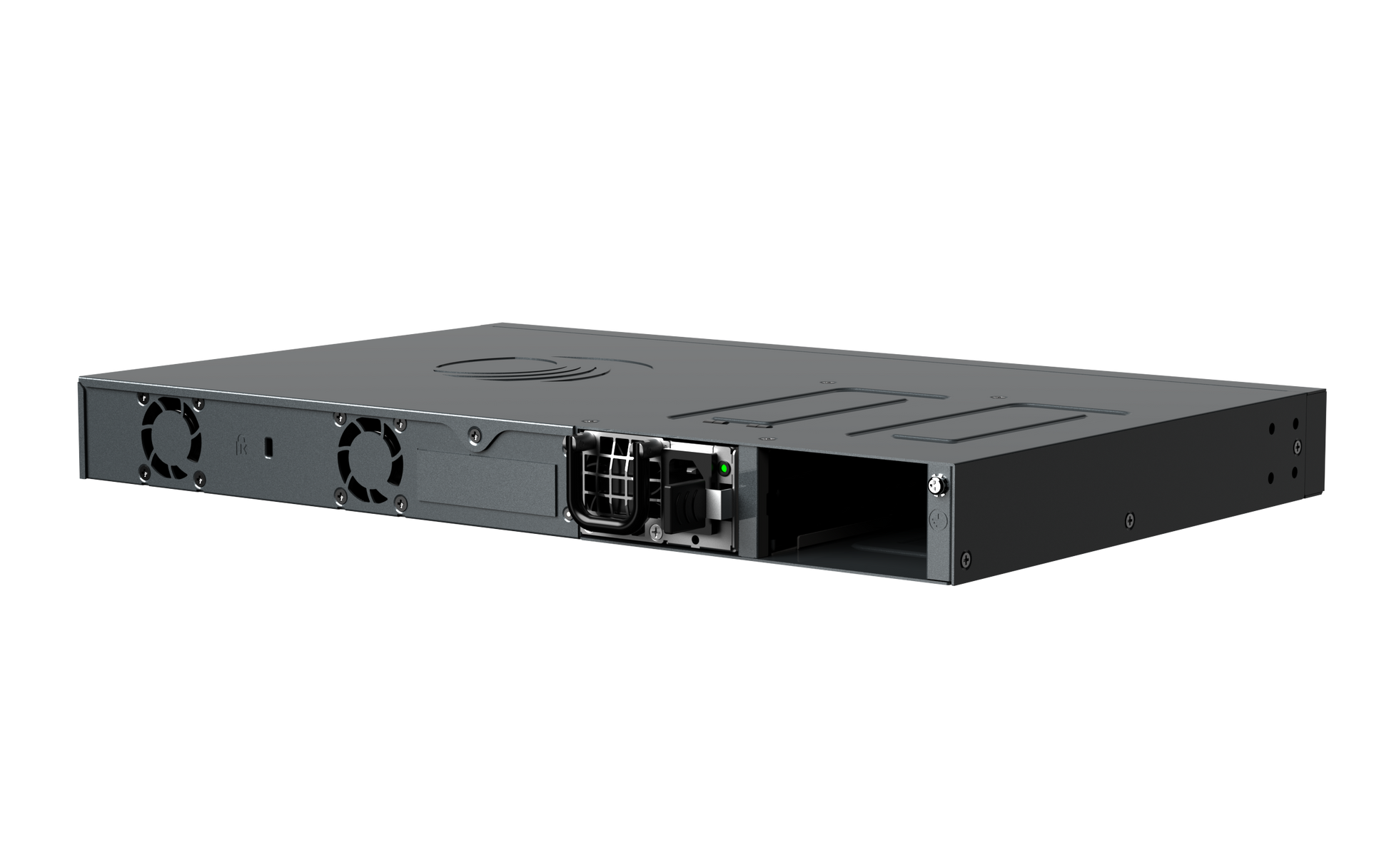

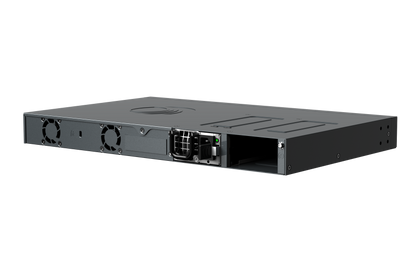

  • Back of Cambium cnMatrix EX3028R-P switch with black metal rack, dual fans, PSU

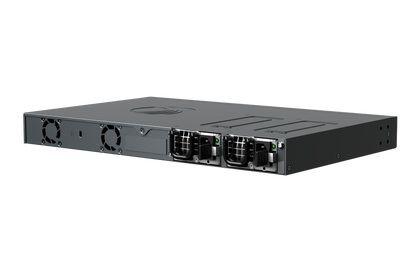

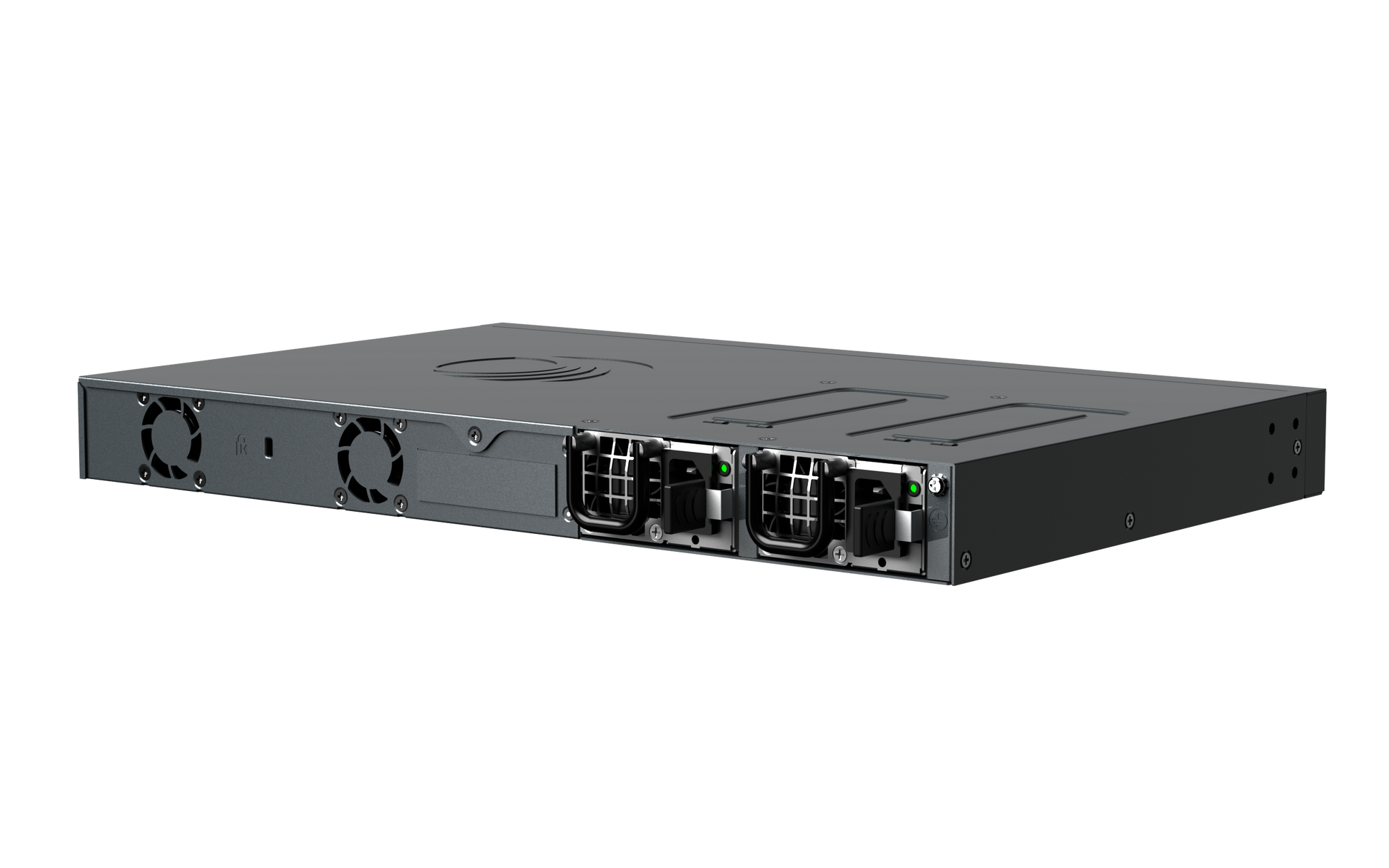

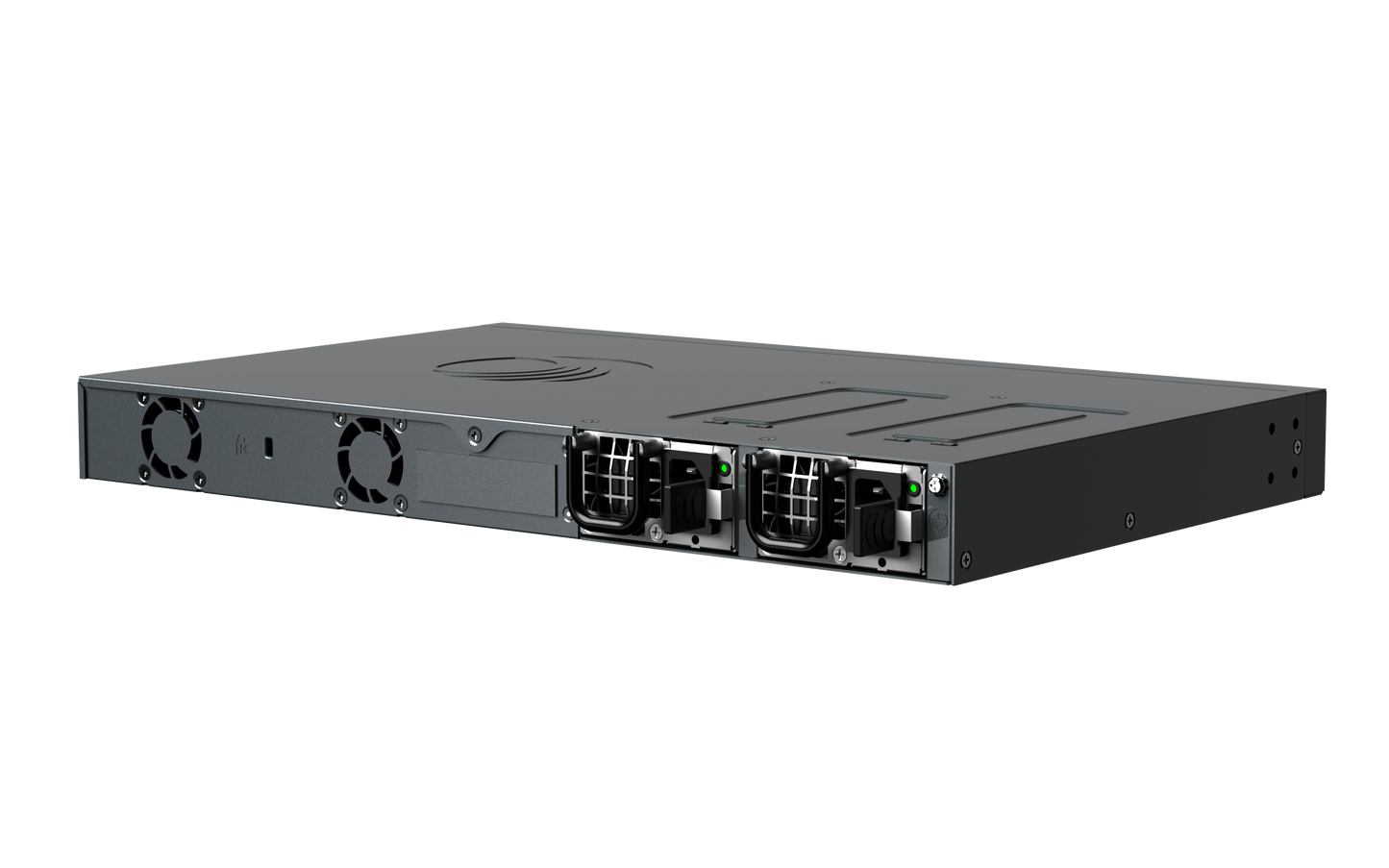

  • Cambium cnMatrix EX3028R-P black metal server rack with front ports and fans
1 7

Cambium Networks

Cambium cnMatrix EX3028R-P | 24 x 1GbE PoE (12x30W + 12x60W) | 4 x 10G SFP+

Cambium cnMatrix EX3028R-P | 24 x 1GbE PoE (12x30W + 12x60W) | 4 x 10G SFP+

MXEX3028GxPA10

In stock:14

$2,780.10 AUD
$2,780.10 AUD
$2,780.10 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Cambium cnMatrix EX3028R-P is a fully managed enterprise access switch built for PoE edge deployments that need a mix of standard PoE+ and higher-power 4PPoE.

  • 24 x 1GbE RJ45 access ports
  • PoE output: 12 ports PoE+ (up to 30W) + 12 ports 4PPoE (up to 60W)
  • Uplinks: 4 x 10Gb SFP+
  • Management: cnMaestro cloud (or on-premise), plus CLI/web/SNMP
  • Layer 2 / Layer 3: enterprise switching with inter-VLAN routing and dynamic routing support

Important: This listing is the non-USA variant (MXEX3028GxPA10). Dual/removable CRPS power supplies are not included and no power cord is included.

Features

• 24 x 1GbE access switch with mixed PoE: 12 x 30W PoE+ + 12 x 60W 4PPoE (802.3bt)
• 4 x 10G SFP+ uplinks for high-speed aggregation to core/distribution
• Enterprise L2/L3 feature set including VLAN/QinQ, LACP, advanced QoS, and inter-VLAN routing
• Security-ready edge: 802.1X, MAC-auth (MAB), ACLs, DHCP snooping, Dynamic ARP inspection, SSH
• Operate via cnMaestro (cloud or on-prem) plus CLI/web/SNMP management options
• Dual removable CRPS power design for serviceability and redundancy (PSUs sold separately)

Warranty

Cambium Networks offers a standard 1-year limited warranty on most hardware products, covering defects in materials and workmanship under normal use conditions.
Extended Warranty Periods for Specific Products:
Certain product families come with extended warranty periods:
cnMatrix - EX Series: 5 years
cnMatrix - TX Series: 3 years
cnPilot Wi-Fi 5 E-Series Indoor Access Points: 5 years
cnPilot Wi-Fi 5 E-Series Outdoor Access Points: 3 years
ePMP, PMP 450 Series, PTP 450 and PTP 550 Series: 3 years
Wi-Fi 6 Indoor Access Points (e.g., XE3-4, XE5-8, XV2-2): Limited Lifetime Warranty (valid through product End of Life)
Wi-Fi 6 Outdoor Access Points (e.g., XV2-2T): 3 years
Wi-Fi 7 Indoor Access Points (e.g., X7-35X): Limited Lifetime Warranty (valid through product End of Life)
Xirrus Series (e.g., XR-1xxx, XR-2xxx): 5 years
Xirrus Series (e.g., X2-120, XR-320): Limited Lifetime Warranty (valid through product End of Life)
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Cambium Networks products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Model: cnMatrix EX3028R-P
Ordering SKU (non-USA): MXEX3028GxPA10
Ports: 24 x 10/100/1000
PoE Ports: 12 x PoE+ (30W) + 12 x 4PPoE/PoE++ (60W)
PoE Standards: IEEE 802.3af / 802.3at / 802.3bt
Uplinks: 4 x 10G SFP+
Switching Throughput: 128 Gbps
Forwarding Rate: 120 Mpps (64-byte packets)
Packet Buffer: 1.5 MB
MAC Address Table: 16K
VLANs: 4K
QoS: 8 priority queues; DiffServ/DSCP support; traffic shaping/metering
Jumbo Frames: 9K
Link Aggregation: Static or LACP (8 LAGs / 8 ports per LAG)
Spanning Tree: 802.1D, RSTP, MSTP, PVRST
Security: 802.1X, MAC-auth/MAB, ACLs, DHCP snooping, Dynamic ARP inspection, SSH
Layer 3: Inter-VLAN routing, static routes, RIP v1/v2, OSPFv2 (plus multicast routing features listed in datasheet)
Management: cnMaestro, CLI, web (HTTP/HTTPS), SNMP v1/v2/v3, syslog, SNTP, out-of-band Ethernet management, USB
Form Factor: 1U rack-mount
Power Supplies: Dual removable CRPS (required for operation; not included). PoE budget is CRPS-dependent.
Max Switch Power (with traffic, excl. PoE): 61W
CPU Speed: 800 MHz
PoE Voltage: 54V
Max PoE per Port: 30W or 60W (by port type)
Dimensions (H x W x L): 4.44 x 44.15 x 28 cm
Weight: 3.679 kg
Operating Temp: 0°C to 50°C
Storage Temp: -40°C to 70°C
Included in box: Switch chassis only (no CRPS PSUs, no power cord)

FAQs

Q1: Does this switch include power supplies or a power cord?
A1: No. The EX3028R-P uses dual removable CRPS power supplies, and the non-USA MXEX3028GxPA10 variant ships with no power supplies and no power cord. You must add compatible CRPS PSUs separately.

Q2: What PoE does the EX3028R-P provide?
A2: It provides 12 ports of PoE+ (up to 30W) and 12 ports of 4PPoE / PoE++ (up to 60W), supporting IEEE 802.3af/at/bt device types.

Q3: What uplink options does it have?
A3: The EX3028R-P includes 4 x 10Gb SFP+ uplink ports for fibre or DAC connections.

Q4: Can it do Layer 3 routing?
A4: Yes. It supports Layer 3 capabilities including inter-VLAN routing, static routing, and dynamic routing features such as RIP v1/v2 and OSPFv2.

Q5: How is the switch managed?
A5: It supports cnMaestro management (cloud or on-premise) and also provides standard options such as CLI and embedded web management, plus SNMP for monitoring.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
