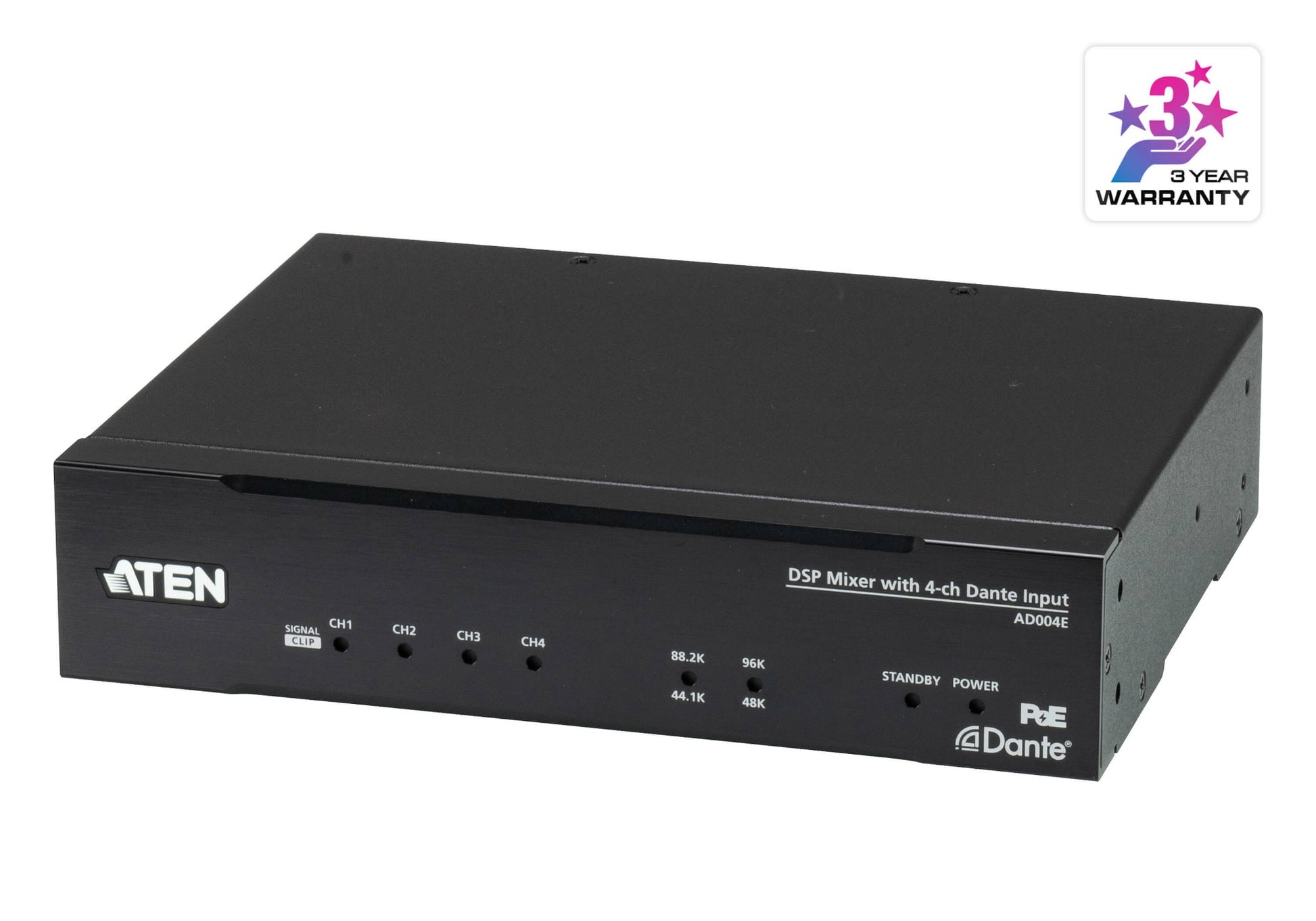

ATEN AD004E-AT | AD004E Dante DSP Mixer, 4-Ch Input, AES67, PoE

Name: ATEN AD004E-AT | AD004E Dante DSP Mixer, 4-Ch Input, AES67, PoE
Brand: ATEN
SKU: AD004E-AT
Price: 1232.11 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:AD004E-AT

Stock Status: Enquire

$1,232.11 inc. GST

$1,120.10 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ATEN AD004E is a Dante DSP mixer with 4-channel Dante input, converting network audio into four analog line outputs. A built-in DSP matrix mixer lets you assign any Dante input to any analog output, and PoE support keeps cabling simple in boardrooms, conference rooms and hospitality venues.

Built on a SHARC ADSP-21489 processor with 24-bit audio and AES67 compliance, the AD004E replaces heavy analog runs with standard Cat cabling. It can be managed through the PC-based Audio Wizard app or the ATEN VK control system over LAN or RS-232, and works with other ATEN Pro Audio models in distributed DSP systems. The compact half-rack enclosure suits tight installations.

Features

- Dante AoIP replaces heavy analog audio cables with Cat cables
- Built-in DSP matrix mixer assigns Dante inputs to any of the four analog outputs
- Speaker management through the PC-based Audio Wizard app or ATEN VK control system
- Selectable automatic Standby Mode (-50/-60/-70 dBu threshold; 10/30/60 minute delay)
- PoE redundancy removes the need for additional power cabling
- Works with ATEN Pro Audio models for distributed DSP systems
- Suited to boardrooms, conference rooms and hospitality venues

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 4-channel Dante input converted to 4-channel analog line outputs
- SHARC ADSP-21489 processor
- 24-bit audio; sampling rates of 44.1k, 48k, 88.2k and 96 kHz
- AES67 compliant
- PoE supported for redundancy operation
- Control via LAN / RS-232 (Audio Wizard app / ATEN VK control system)
- 24 DSP presets
- Maximum output level +24dBu; nominal input level +4dBu
- Impedance 600 ohm
- THD+N less than 0.01% (1kHz, max gain)
- Half-rack size enclosure

FAQs

Q: How many Dante inputs and analog outputs does the AD004E have?
A: It accepts 4 channels of Dante input and converts them to 4 channels of analog line output through its built-in DSP matrix mixer.

Q: Does the AD004E support PoE?
A: Yes. It supports PoE for redundancy operation, which removes the need for additional power cabling.

Q: Is the AD004E compatible with AES67?
A: Yes, it is AES67 compliant, supporting interoperability with other AES67 networked audio equipment.

Q: How is the AD004E controlled and configured?
A: Control is via LAN or RS-232 using the PC-based Audio Wizard app or the ATEN VK control system.

Q: What sampling rates and audio resolution are supported?
A: It supports 24-bit audio at sampling rates of 44.1k, 48k, 88.2k and 96 kHz.

Q: Can the AD004E be used with other ATEN Pro Audio products?
A: Yes, it works with ATEN Pro Audio models to build distributed DSP systems.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
