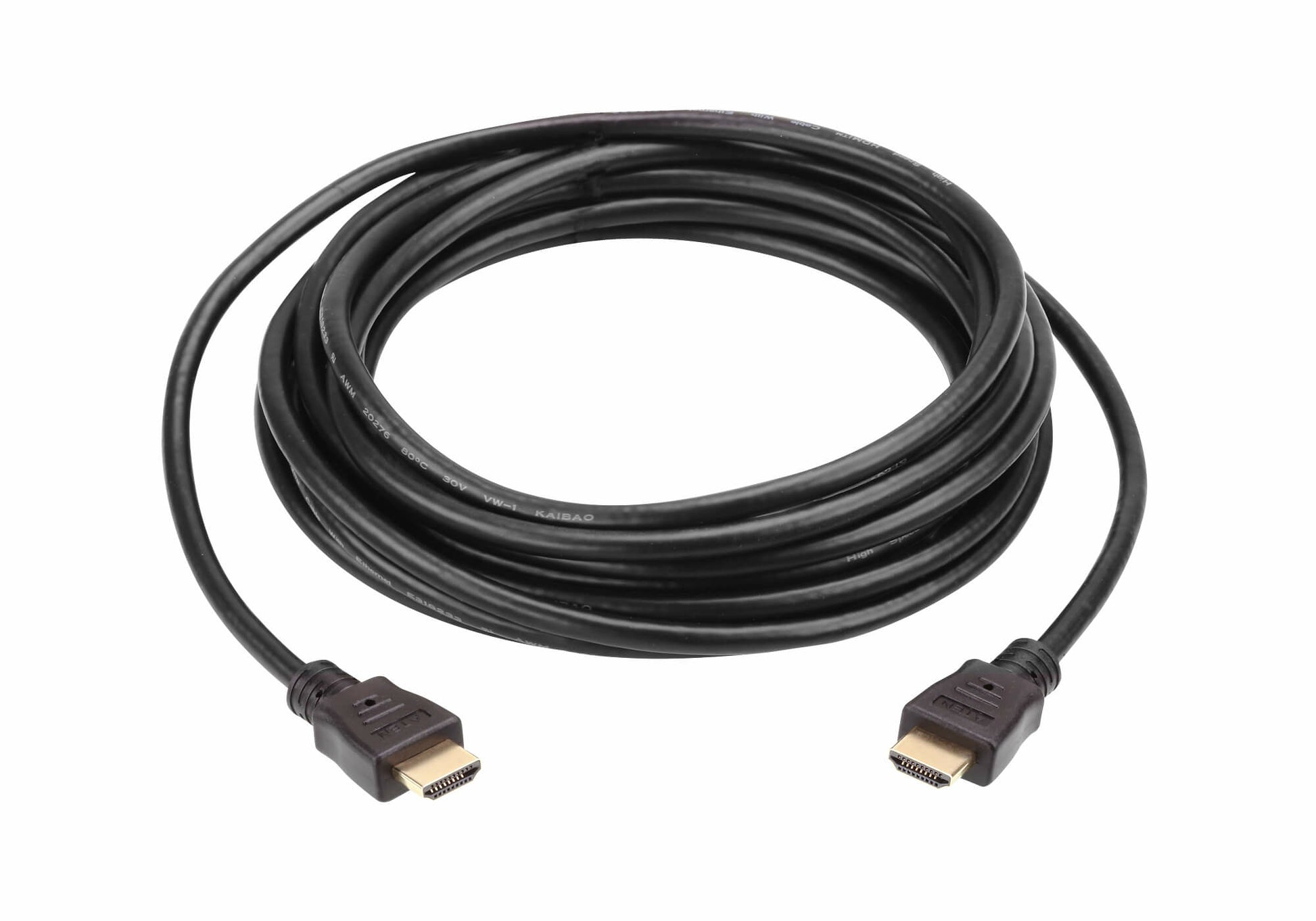

ATEN 2L-7D10H | High Speed HDMI Cable with Ethernet, 10 m, 4K 30Hz

ATEN 2L-7D10H | High Speed HDMI Cable with Ethernet, 10 m, 4K 30Hz

Authorised ATEN Partner

SKU:2L-7D10H

$51.48 inc. GST
$46.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 1

Description

The 10 m High Speed HDMI cable with Ethernet carries uncompressed digital audio and video between source and display devices, supporting resolutions up to 4K (4096 x 2160 at 30Hz). It is a HDMI (19-pin) male to male cable with gold-plated connectors for reliable signal transmission, suited to connecting displays, projectors, set-top boxes and AV equipment over longer runs in meeting rooms, classrooms and commercial installations.

Built with 26AWG tinned copper conductors and aluminium foil shielding to resist interference, the cable also supports the HDMI Ethernet Channel for a dedicated networking data path where the linked devices support it. It is HDCP 1.4 compliant and supports 3D and Deep Color, and the black PVC jacket is rated UL VW-1 and CSA for flame resistance. The cable is RoHS compliant.

Features

- Up to 4K (4096 x 2160 @ 30Hz) video quality
- HDMI Ethernet Channel adds a dedicated data channel for networking when the linked devices support it
- Supports 3D, Deep Color and 4K; HDCP 1.4 compliant
- Gold-plated connectors for reliable signal transmission
- 26AWG tinned copper conductors with aluminium foil shielding to resist interference
- Available in lengths from 5 to 20 m
- RoHS compliant
- Bend radius tested at 90 degrees, swung 100 times between +/-90 degrees at 13 times per minute

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Find the Right Cable

Manual

Technical Specifications

- Cable length: 10 m
- Max video resolution: 4096 x 2160 @ 30Hz
- Connector type: HDMI (19-pin) male to male
- HDMI Ethernet Channel support
- HDCP 1.4 compliant
- Conductor: 26AWG tinned copper
- Connector plating: gold
- Cable shield type: aluminium foil
- Cable jacket type: PVC
- Cable colour: black
- Cable outer dimension: 8.0 ± 0.2 mm
- Rating: UL VW-1 (flame rating), CSA
- RoHS compliant

FAQs

Q: What maximum resolution does this cable support?
A: It supports video up to 4K (4096 x 2160 at 30Hz) over a 10 m length.

Q: Does this cable support HDMI Ethernet?
A: Yes, it supports the HDMI Ethernet Channel, which provides a dedicated data channel for networking. Both linked devices must support HDMI Ethernet for this to be used.

Q: What connectors does it have?
A: Both ends are HDMI (19-pin) male with gold-plated contacts, so it connects HDMI source devices directly to HDMI displays or other HDMI inputs.

Q: Is this cable HDCP compliant?
A: Yes, it is HDCP 1.4 compliant, so it can carry protected content between compatible source and display devices.

Q: What is the cable made from?
A: It uses 26AWG tinned copper conductors with an aluminium foil shield and a black PVC jacket rated UL VW-1 and CSA, with an outer diameter of 8.0 ± 0.2 mm.

Q: Are other lengths available in this range?
A: Yes, this High Speed HDMI cable with Ethernet range is available in lengths from 5 to 20 m. This SKU is the 10 m version.
