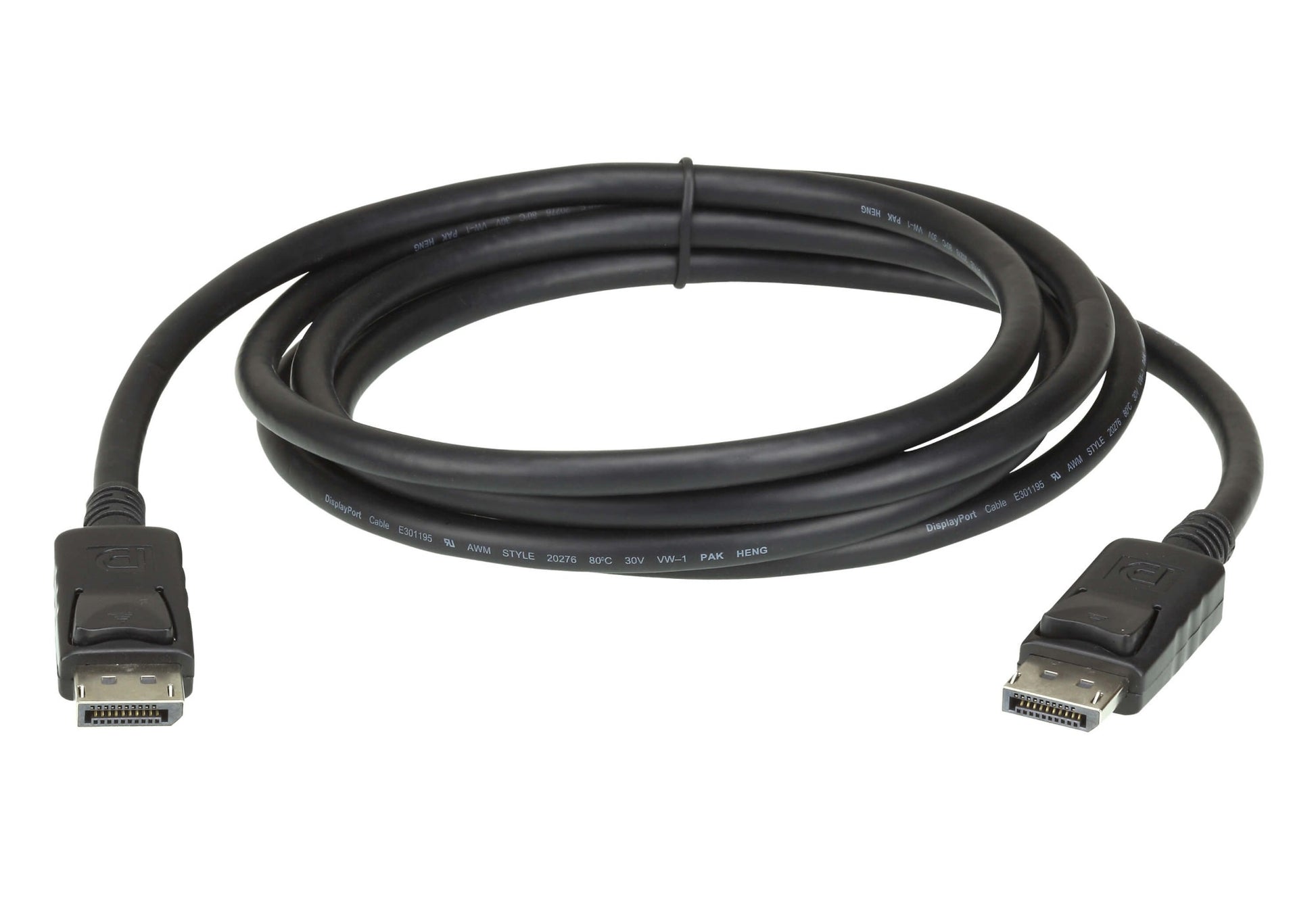

ATEN 2L-7D02DP | 2L Series DisplayPort Cable, 2 m, Black, 4K@60Hz

ATEN 2L-7D02DP | 2L Series DisplayPort Cable, 2 m, Black, 4K@60Hz

Authorised ATEN Partner

SKU:2L-7D02DP

$25.08 inc. GST
$22.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:21

Description

The ATEN 2L Series 2 m black DisplayPort cable is a male-to-male (20 pin) video cable for connecting a DisplayPort PC, laptop or workstation to a high-resolution monitor. It supports 4K video at 60Hz over a DisplayPort rev.1.4 link with 32.4 Gbps HBR3 bandwidth, making it a practical fit for office desks, meeting rooms and multi-monitor setups.

The cable uses tinned copper conductors, nickel-plated connectors and an aluminium magnesium alloy shield for stable signal delivery. Latching connectors with a release button hold the plug securely in the port, and the cable is backward compatible with previous DisplayPort generations, so it works across mixed fleets of displays and source devices.

Features

- High Bit Rate 3 (HBR3) bandwidth of 32.4 Gbps
- Supports 4K video at 60Hz
- Backward compatible with previous DisplayPort generations
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- Forward Error Correction and Display Stream Compression (DSC)
- 32 uncompressed digital audio channels
- Latching connectors with release button for a secure fit
- Tinned copper conductors and nickel-plated connectors
- RoHS compliant

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Find the Right Cable

Manual

Technical Specifications

- Cable length: 2 m
- Connector type: DisplayPort (20 pin) Male to Male
- DisplayPort version: rev.1.4
- Video resolution: 4K (3840 x 2160) @ 60Hz
- Bandwidth: HBR3, 32.4 Gbps
- Colour: Black
- Conductor material: Tinned copper
- Connector plating: Nickel
- Cable shield type: Aluminium magnesium alloy
- Cable jacket type: PVC
- Cable outer dimension: 6.5 +/- 0.2 mm
- Flame rating: UL VW-1, CSA
- Compliance: RoHS

FAQs

Q: What connectors does the ATEN 2L-7D02DP use?
A: It has a DisplayPort (20 pin) male connector on both ends, so it connects a DisplayPort source directly to a DisplayPort monitor or display.

Q: How long is this DisplayPort cable?
A: This SKU is 2 m long and finished in black.

Q: What resolution does the cable support?
A: It supports 4K (3840 x 2160) at 60Hz over a DisplayPort rev.1.4 link with 32.4 Gbps HBR3 bandwidth.

Q: Can I use it to daisy-chain monitors?
A: Yes. The cable supports Multi-Stream Transport (MST), which allows multiple monitors to be daisy-chained from a single DisplayPort output where the source and displays support it.

Q: Is it compatible with older DisplayPort equipment?
A: Yes. The cable is backward compatible with previous DisplayPort generations, though the available resolution and refresh rate depend on the capabilities of the source and display.

Q: Does it carry audio as well as video?
A: Yes. DisplayPort carries up to 32 channels of uncompressed digital audio alongside the video signal.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Find the Right Cable

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
