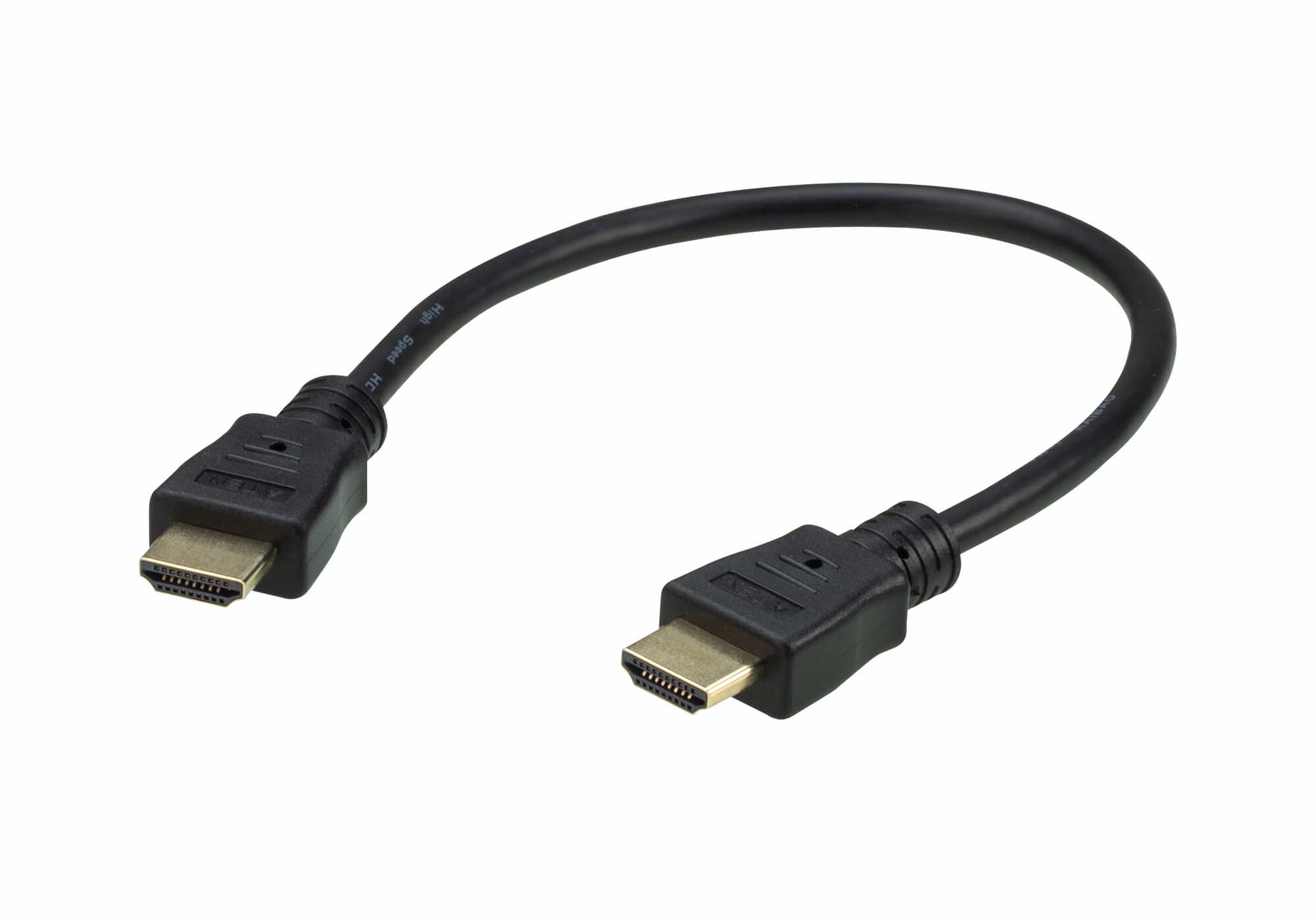

ATEN 2L-7DA3H | True 4K High Speed HDMI Cable with Ethernet, 0.3 m

ATEN 2L-7DA3H | True 4K High Speed HDMI Cable with Ethernet, 0.3 m

Authorised ATEN Partner

SKU:2L-7DA3H

$11.55 inc. GST
$10.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:3

Description

This 0.3 m True 4K High Speed HDMI cable with Ethernet carries uncompressed digital audio and video up to 4096 x 2160 at 60 Hz (4:4:4). Its HDMI Male to Male connectors suit short, tidy links between source devices and displays inside racks, AV cabinets and equipment stacks. The HDMI Ethernet Channel provides an additional dedicated data channel for networking when the linked devices support it.

The cable uses 30AWG tinned copper conductors with an aluminium foil shield to resist interference, helping preserve video and image quality. Gold-plated connectors support reliable signal transmission, and the cable is HDCP 2.2 compliant with support for 3D, Deep Color and 4K. The black PVC jacket measures 6.0 mm in outer diameter and is rated UL VW-1 and CSA.

Features

- Optimum signal transmission up to True 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz 4:4:4)
- HDMI Ethernet Channel provides an additional dedicated data channel for networking, when the linked devices are HDMI Ethernet Channel enabled
- Supports HDMI 3D, Deep Color and 4K, with HDCP 2.2 compliance
- Gold-plated connectors for reliable signal transmission
- Tinned copper wire resists interference for better video and image quality
- Bend radius of 90 degrees, tested by swinging 100 times between +/-90 degrees at 13 times per minute

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Find the Right Cable

Manual

Technical Specifications

- Length: 0.3 m
- Max video resolution: 4096 x 2160 @ 60 Hz (4:4:4)
- Connectors: HDMI (19-pin) Male to Male
- HDMI Ethernet Channel
- HDCP 2.2 compliant
- Conductor: 30AWG tinned copper
- Connector plating: Gold
- Shield: Aluminium foil
- Jacket: PVC, black
- Outer diameter: 6.0 ± 0.15 mm
- Rating: UL VW-1 (flame rating), CSA
- Operating temperature: 80 °C

FAQs

Q: What is the maximum resolution this cable supports?
A: It supports video up to True 4K, 4096 x 2160 at 60 Hz with 4:4:4 colour sampling.

Q: Does this cable support HDCP 2.2?
A: Yes. The cable is HDCP 2.2 compliant, so it can carry protected 4K content between compatible devices.

Q: What does the HDMI Ethernet Channel do?
A: It adds a dedicated data channel that supports networking over the HDMI link. It only works when the devices at both ends are HDMI Ethernet Channel enabled.

Q: What connectors does the cable have?
A: Both ends are HDMI (19-pin) Male connectors with gold plating, so it connects HDMI source devices to HDMI displays or inputs.

Q: How long is this cable and where is it best used?
A: The cable is 0.3 m long, making it well suited to short connections in racks, AV cabinets and equipment stacks. Longer lengths are available in the same range.

Q: What conductor and shielding does the cable use?
A: It uses 30AWG tinned copper conductors with an aluminium foil shield and a PVC jacket to resist interference and maintain signal quality.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Find the Right Cable

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
