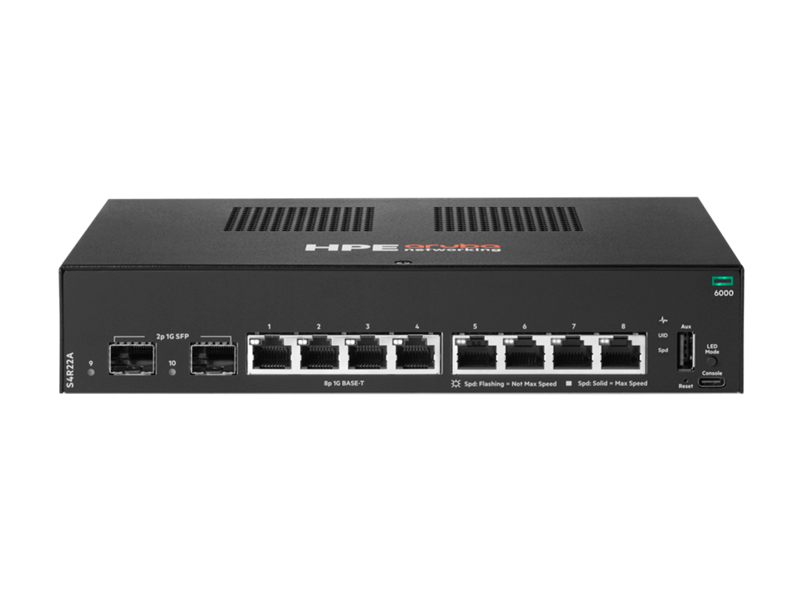

Aruba S4R22A#ABG | CX 6000 8-Port Gigabit Switch, 2x SFP, Fanless, Non-PoE

Name: Aruba S4R22A#ABG | CX 6000 8-Port Gigabit Switch, 2x SFP, Fanless, Non-PoE
Brand: Aruba
SKU: S4R22A#ABG
Price: 760.2 AUD
Availability: InStock

Authorised Aruba Partner

SKU:S4R22A#ABG

In stock:2

$760.20 inc. GST

$691.09 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Aruba CX 6000 is a compact, fanless Layer 2 managed switch built for branch offices, midsize businesses, and quiet, space-constrained environments. This 8-port Non-PoE variant delivers 8 x 10/100/1000BASE-T access ports and 2 x 1GbE SFP uplinks, running the modern AOS-CX operating system with Zero Touch Provisioning, REST APIs, and full management via Aruba Central — all with no licensing fees required.

Designed for energy-efficient, silent operation at just 13.8W, the CX 6000 supports enterprise-grade features including ACLs, QoS, MSTP, LACP, and static routing in a rack- or wall-mountable form factor. Compatible with Aruba Central cloud and on-premises management, it integrates seamlessly into the broader Aruba networking ecosystem.

Features

- Fanless, silent design ideal for open offices, classrooms, and noise-sensitive environments
- AOS-CX cloud-native, database-driven OS enables modern automation and programmability
- Zero Touch Provisioning (ZTP) simplifies mass deployment without manual configuration
- REST API support for software-defined networking and integration with orchestration tools
- Managed via HPE Aruba Networking Central (cloud or on-premises), Web GUI, and CLI
- IEEE 802.1s MSTP with backwards compatibility for 802.1d and 802.1w
- Enterprise ACLs and robust QoS policies for traffic prioritisation
- Packet storm protection against broadcast, multicast, and unknown unicast floods
- Uni-directional Link Detection (UDLD) to prevent forwarding loops
- Unsupported Transceiver Mode (UTM) for third-party transceiver compatibility
- Energy Efficient Ethernet (IEEE 802.3az) reduces power during low-traffic periods
- No software licensing or subscription required — full feature set embedded
- Local MAC Authentication (LMA) and local user roles for port-level access control
- Limited Lifetime Warranty included

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 10/100/1000BASE-T (RJ45) access ports
- 2 x 1GbE SFP uplink ports
- No PoE support
- Maximum power consumption: 13.8W
- Fanless, compact design — silent operation
- Rack-mountable and wall-mountable
- Layer 2 managed with static routing support
- Jumbo frame support up to 9,198 bytes
- IEEE 802.3ad LACP — up to 8 LAGs, up to 8 links per LAG
- 1 x USB-C console port
- 1 x USB Type-A host port
- AOS-CX operating system
- IPv6 support
- sFlow® monitoring support
- Zero Touch Provisioning (ZTP)

FAQs

Q: Does this switch support PoE?
A: No. The S4R22A is the Non-PoE variant of the Aruba CX 6000 family. It does not supply power over Ethernet. If you require PoE, consider the PoE+ variants in the CX 6000 series.

Q: What operating system does the Aruba CX 6000 run?
A: The CX 6000 runs AOS-CX, Aruba's modern, cloud-native, database-driven operating system. It supports REST APIs, Zero Touch Provisioning, and centralised management via Aruba Networking Central.

Q: Is a software licence required to use this switch?
A: No. The Aruba CX 6000 includes its full feature set in embedded switch software with no additional licensing or subscription fees required.

Q: Can this switch be managed via the cloud?
A: Yes. The CX 6000 supports management through HPE Aruba Networking Central (cloud and on-premises), as well as via Web GUI, CLI, and the Switch Multi-Edit Software tool.

Q: Is this switch suitable for a quiet office or classroom environment?
A: Yes. The fanless design means the switch operates in complete silence, making it ideal for open-plan offices, classrooms, retail environments, and any deployment where fan noise is undesirable.
