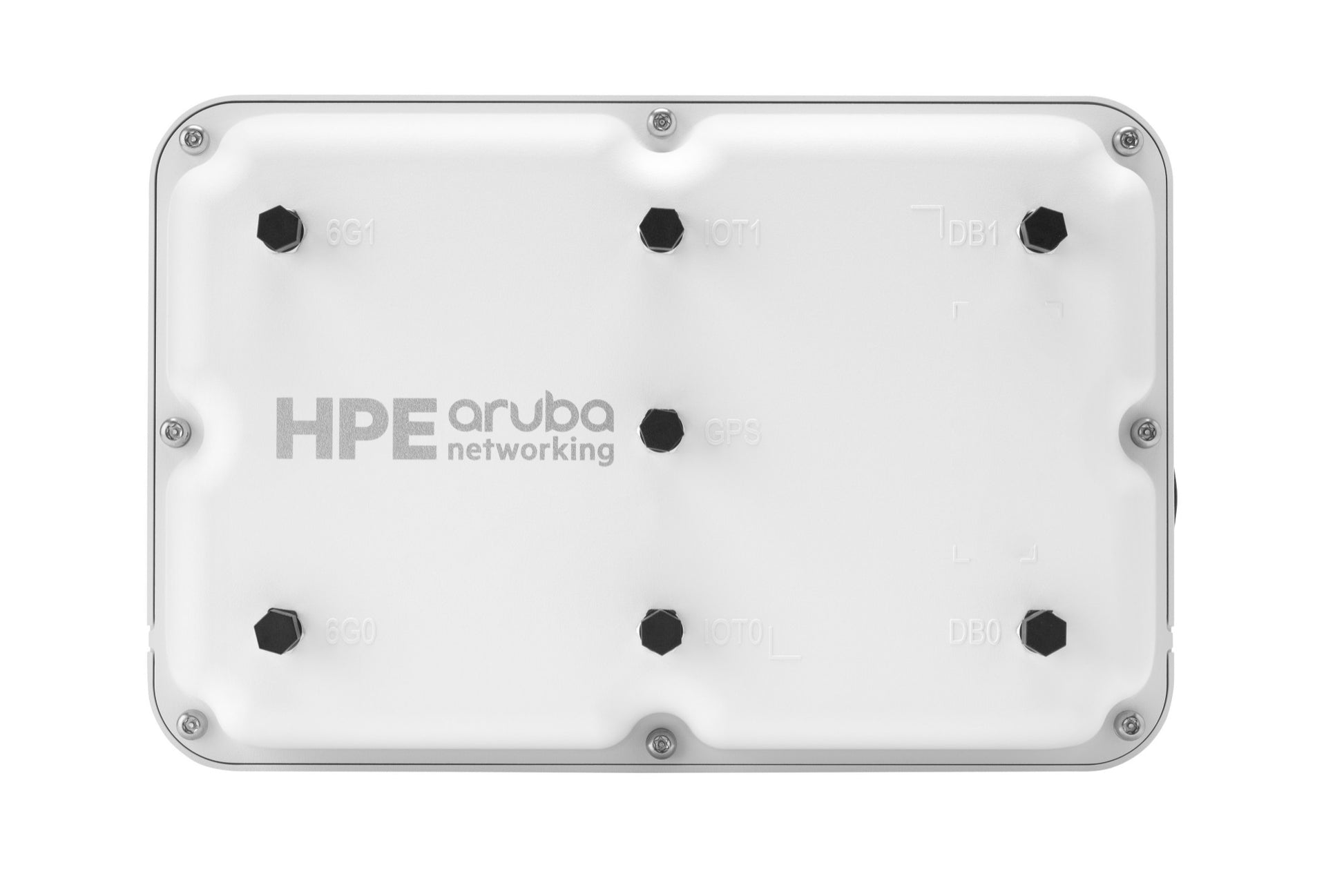

• Aruba S4K35A AP-764 Wi-Fi 7 hardened outdoor access point
1 1

Aruba

Aruba S4K35A | AP-764 Wi-Fi 7 Hardened Access Point, 2x2 Flex Radio, RW

Aruba S4K35A | AP-764 Wi-Fi 7 Hardened Access Point, 2x2 Flex Radio, RW

Authorised Aruba Partner

S4K35A

Stock Status: Enquire

$3,741.19 inc. GST
$3,401.08 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Aruba AP-764 is a Wi-Fi 7 (802.11be) hardened outdoor and industrial access point with a dual-radio, tri-band-capable 2x2 Flex Radio. This connectorized model uses four RP-SMA female connectors for external antennas, so installers can select the antenna coverage to suit the site. It is the RW (Rest of World) regulatory domain variant, with a 5 Gbps Smart Rate PoE port and an IP66/IP67 rating for demanding environments.

The Flex Radio can run two 2x2 radios across the 2.4, 5 and 6 GHz bands, or switch to a single-radio 4x4 mode in 5 GHz or 6 GHz. Integrated Bluetooth 5.4 and 802.15.4/Zigbee IoT radios, a GNSS receiver, a barometric sensor and a USB-C host port support IoT and location use cases. The AP-764 is managed through HPE Aruba Networking Central with AOS 10.

Features

- Wi-Fi 7 with multi-link operation (MLO), 4K-QAM and 6 GHz band support
- Flex Radio: dual-radio tri-band capable 2x2, or single-radio 4x4 in 5 GHz or 6 GHz
- Connectorized design for external antennas, allowing installer-selected antenna coverage
- Smart Rate port configurable to 100M/1/2.5/5 Gbps with PoE and MACsec protection
- IoT-ready with BLE 5.4, 802.15.4/Zigbee and USB-C port
- Built-in GNSS receiver and barometric pressure sensor for self-location
- AI-powered dynamic power save mode and Intelligent Power Monitoring (IPM)
- Managed through HPE Aruba Networking Central with AOS 10
- Hardened for extreme environments: -40C to +65C, IP66/IP67, salt and wind tolerance
- Built-in TPM for security and anti-counterfeiting

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 7 (802.11be) dual-radio tri-band-capable 2x2 MIMO (2.4/5/6 GHz, any two bands)
- Optional single-radio 4x4 mode in 5 GHz or 6 GHz
- Up to 5.76 Gbps (6 GHz 4x4) / 4.32 Gbps (dual 2x2 5 GHz + 6 GHz) aggregate data rate
- 2.4 GHz radio: 2 spatial streams, up to 688 Mbps
- 5 GHz radio: 4 spatial streams, up to 2.88 Gbps
- 6 GHz radio: 4 spatial streams, up to 5.76 Gbps
- Hardware variant: AP-764 Outdoor External Antenna (connectorized), RW (Rest of World) regional SKU
- 4 x RP-SMA female external antenna connectors
- 1 x 100/1000/2500/5000BASE-T Smart Rate port (E0) with 802.3af/at/bt PoE-PD and MACsec
- 1 x USB 2.0 Type-C host port (up to 10W)
- Integrated BLE 5.4 and 802.15.4/Zigbee radios, GNSS receiver, barometric sensor
- Built-in Trusted Platform Module (TPM)
- Max power consumption: 25.5 W (802.3at) / 34.5 W (802.3bt Class 5), including up to 10 W to USB devices
- Dimensions (bare AP, H x W x D): 266.4 x 174 x 83 mm
- Weight (with mount bracket): 2.03 kg
- IP66 / IP67 rated
- Operating temperature: -40C to +65C with solar cover, -40C to +55C without
- Wind rating: 165 mph / 265 km/h
- Minimum OS: AOS 10.8.0.0
- Power adapter/injector and mounting bracket sold separately

FAQs

Q: Does the AP-764 include internal antennas?
A: No. The AP-764 is the connectorized variant with four RP-SMA female connectors, so external antennas must be fitted. Antennas are selected by the installer to suit the coverage requirement.

Q: Which Wi-Fi bands does this access point support?
A: It is a Wi-Fi 7 (802.11be) access point with a tri-band-capable Flex Radio covering 2.4, 5 and 6 GHz. It runs as a dual-radio 2x2 unit on any two bands, or as a single-radio 4x4 unit in 5 GHz or 6 GHz.

Q: How is the AP-764 powered?
A: It is powered over Ethernet through the 5 GHz-capable Smart Rate port using 802.3af, 802.3at or 802.3bt PoE (class 3 or higher). Full operation, including USB device power, requires 802.3bt class 5. A PoE injector or power supply is sold separately.

Q: What does the RW designation mean?
A: RW stands for Rest of World, which is the regulatory domain this SKU is built for. Confirm that the RW domain is permitted for your deployment location before ordering.

Q: What environments is the AP-764 rated for?
A: It is hardened for outdoor and industrial use with IP66/IP67 ingress protection, an operating range of -40C to +65C with the solar cover, salt spray tolerance and a 265 km/h wind rating.

Q: How is the AP-764 managed?
A: It is managed through HPE Aruba Networking Central and requires AOS 10.8.0.0 or later.
