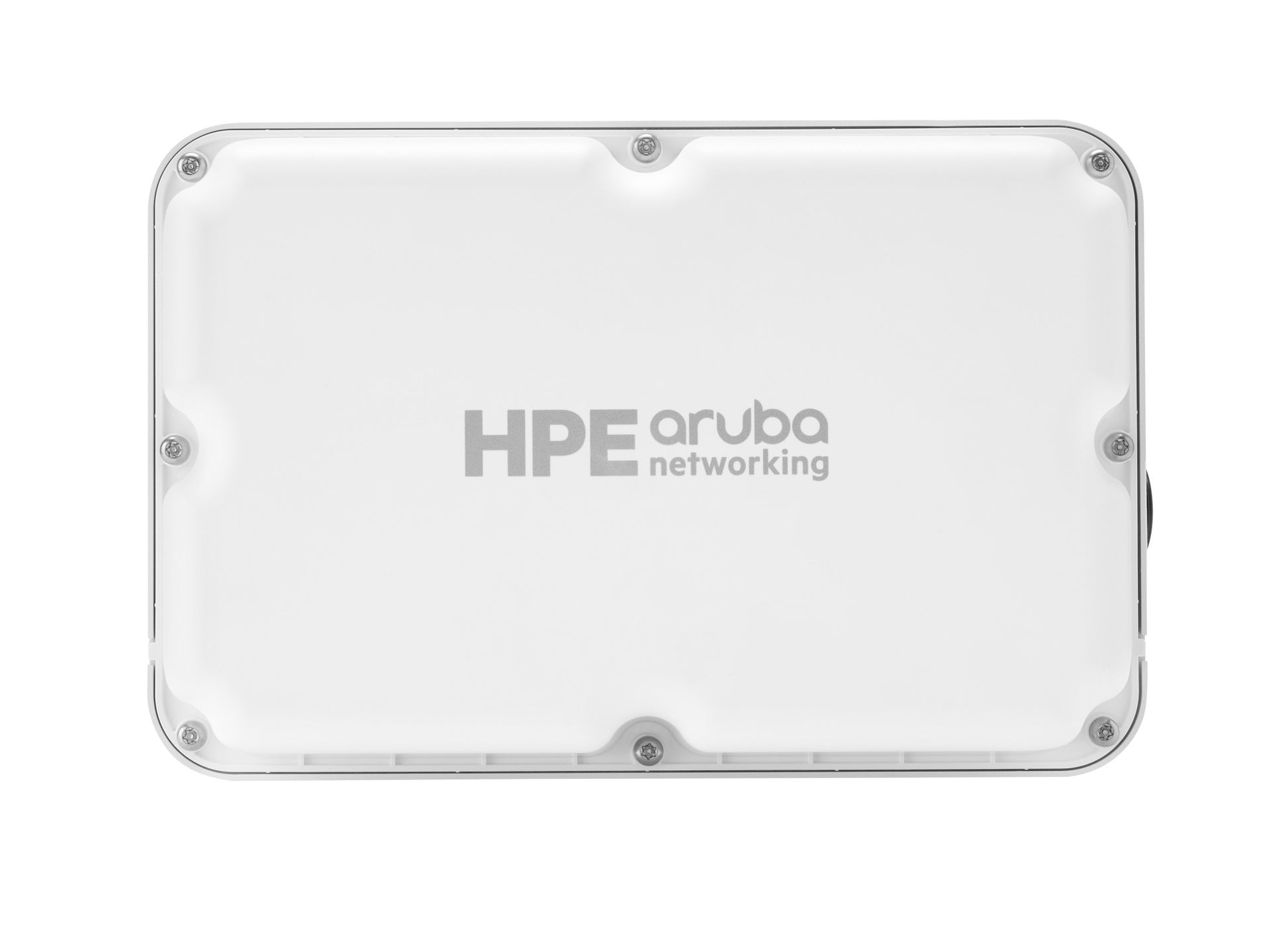

Aruba S4K30A | AP-765EX Wi-Fi 7 HazLoc Access Point, Flex Radio 2x2, RW

Name: Aruba S4K30A | AP-765EX Wi-Fi 7 HazLoc Access Point, Flex Radio 2x2, RW
Brand: Aruba
SKU: S4K30A
Price: 4679.12 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:S4K30A

Stock Status: Enquire

$4,679.12 inc. GST

$4,253.75 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The AP-765EX is a Wi-Fi 7 (802.11be) hazardous-location (HazLoc) outdoor access point for harsh industrial environments such as oil rigs, manufacturing plants and transport sites. This RW regulatory domain model pairs a flexible 2x2 radio with dynamic omni-directional antennas that are provisioned in software, and carries IP66/IP67 ingress protection with an operating range down to -40 C.

A single 100/1000/2500/5000BASE-T port delivers both data and PoE power (802.3at/bt), and the Flex Radio supports dual 2x2 operation across 5 GHz and 6 GHz or a 6 GHz single-radio mode with up to 5.8 Gbps. Integrated Bluetooth 5.4 and Zigbee (802.15.4) radios support IoT deployments, and a built-in TPM adds hardware-level security. The access point is managed through HPE Aruba Networking Central. Power sources are sold separately.

Features

- Wi-Fi 7 with multi-link operation (MLO), 4K-QAM and 6 GHz support
- Flexible radio supports dual 2x2 (5 GHz + 6 GHz) or 6 GHz 4x4 operation
- Dynamic antennas that are software-provisioned as omni or directional
- Industrial IoT-ready, with integrated Bluetooth and 802.15.4/Zigbee radios
- Hazardous location (HazLoc) compliant model for environments such as oil rigs, industrial manufacturing and transport sites
- Managed by HPE Aruba Networking Central with AI-powered insights
- Built-in TPM for security and anti-counterfeiting

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 7 (802.11be) tri-band capable dual-radio AP (2.4, 5 and 6 GHz, any two), 2x2 MIMO
- Flex radio: up to 4.3 Gbps aggregate (5 GHz + 6 GHz dual 2x2), or up to 5.8 Gbps in 6 GHz single-radio mode
- 2.4 GHz radio: 2 spatial streams, up to 688 Mbps (2SS EHT40)
- 5 GHz radio: up to 2.9 Gbps in single-radio mode, up to 1.44 Gbps in dual-radio mode
- 6 GHz radio: up to 5.8 Gbps in single-radio mode, up to 2.9 Gbps in dual-radio mode
- Supports 4096-QAM and EHT20/40/80/160 channel widths
- Up to 400 associated clients per radio
- Wired port E0: auto-sensing 100/1000/2500/5000BASE-T with PoE-PD (802.3at/bt)
- Dynamic antennas, software-selectable omni or directional
- Omni antenna gain: 4.5 dBi (2.4 GHz), 5.5 dBi (5 GHz), 5.5 dBi (6 GHz)
- Directional antenna gain: 7.5 dBi (2.4 GHz), 8.0 dBi (5 GHz), 8.5 dBi (6 GHz)
- Integrated Bluetooth 5.4 and Zigbee (802.15.4) radios, plus GNSS L1 and L5 receiver
- USB 3.0 Type-C and USB 2.0 Type-A host interfaces
- IP66 / IP67 rated, ASTM B117 salt spray tested for 200 hours
- Operating temperature -40 to +65 C with solar cover, -40 to +55 C without
- Built-in TPM, HazLoc (EX) compliant model, RW regulatory domain

FAQs

Q: Is the AP-765EX suitable for hazardous locations?
A: Yes. The AP-765EX is the HazLoc-compliant (EX) model in the 760 Series, designed for environments such as oil rigs, industrial manufacturing and transport sites.

Q: How is the AP-765EX powered?
A: It is powered over its single E0 port using PoE (802.3at/bt, class 4 or higher). 802.3af is not supported except for staging, and power sources are sold separately.

Q: Are there any power restrictions on 802.3at?
A: With 802.3at (class 4) and IPM disabled, the USB-C port is disabled. With 802.3bt (class 5) the access point runs without restrictions.

Q: What wired speeds does the AP-765EX support?
A: The E0 port auto-senses 100/1000/2500/5000BASE-T (NBase-T / 802.3bz), so it can use multi-gigabit cabling to backhaul Wi-Fi 7 traffic.

Q: What is the Flex Radio on this access point?
A: The flexible radio can operate as dual 2x2 radios across 5 GHz and 6 GHz for up to 4.3 Gbps aggregate, or as a single 6 GHz radio for up to 5.8 Gbps.

Q: What operating temperature range does the AP-765EX support?
A: It operates from -40 to +65 C with the solar cover fitted, or -40 to +55 C without it, and is rated IP66/IP67 for outdoor installation.
