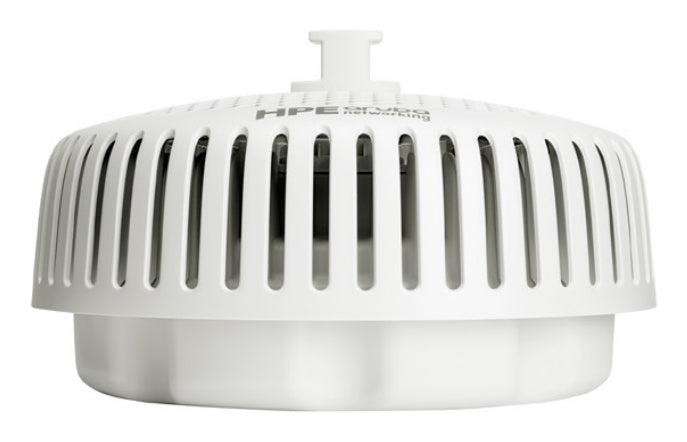

Aruba S0Q61A | AP-679EX Wi-Fi 6E HazLoc Outdoor Access Point, RW

Name: Aruba S0Q61A | AP-679EX Wi-Fi 6E HazLoc Outdoor Access Point, RW
Brand: Aruba
SKU: S0Q61A
Price: 6408.62 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:S0Q61A

Stock Status: Enquire

$6,408.62 inc. GST

$5,826.02 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The AP-679EX is a tri-radio 2x2 Wi-Fi 6E outdoor access point built for hazardous locations, certified to Class 1 Division 2 and ATEX Zone 2. This S0Q61A model uses the RW (Rest of World) regulatory domain and integrates tri-band dynamic directional antennas with wide and narrow modes, delivering up to 3.9 Gbps aggregate peak data rate across the 2.4 GHz, 5 GHz and 6 GHz bands.

Built for oil and gas sites, industrial manufacturing and transportation environments, the access point has an IP66/IP67 rated, weatherproof and temperature-hardened enclosure. Dual 2.5 Gigabit Ethernet PoE-PD ports, Bluetooth 5 and Zigbee support, a USB 2.0 port and pole or ceiling mounting make it suited to demanding outdoor and industrial wireless deployments.

Features

- Wi-Fi 6E with up to seven 160 MHz channels in the 6 GHz band
- Tri-radio design with 2x2:2 MIMO on all three bands
- HazLoc certified for oil rigs, industrial manufacturing and transportation sites
- Integrated dynamic directional antennas with wide and narrow modes
- Intelligent Power Monitoring (IPM) reports energy use and can enable or disable capabilities based on available PoE power
- Integrated BLE and Zigbee radio for IoT use cases
- Weatherproof and temperature hardened for harsh outdoor deployments

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Tri-radio 2.4 GHz / 5 GHz / 6 GHz concurrent 802.11ax 2x2 MIMO
- Wireless standard: IEEE 802.11 a/b/g/n/ac/ax
- Peak data rate 6 GHz: 2.4 Gbps (160 MHz channel)
- Peak data rate 5 GHz: 1.2 Gbps (80 MHz channel)
- Peak data rate 2.4 GHz: 287 Mbps (20 MHz channel)
- Total peak data rate: 3.9 Gbps
- Integrated tri-band directional antennas with wide and narrow modes
- 5 GHz antenna gain: 9 dBi wide, 12 dBi narrow
- 6 GHz antenna gain: 9 dBi wide, 13 dBi narrow
- Integrated omnidirectional BLE/Zigbee antenna, 6 dBi peak gain
- Interfaces: 2 x 2.5 Gigabit Ethernet RJ-45 (PoE-PD), USB 2.0, management port
- Bluetooth 5 and Zigbee radio
- Ingress protection: IP66/IP67
- Hazardous location certification: Class 1 Division 2, ATEX Zone 2
- Power consumption (max): 27.5 W
- Encryption: WPA3 / WPA2
- Mounting: pole-mount or ceiling-mount
- Regulatory domain: RW (Rest of World)

FAQs

Q: Is the AP-679EX certified for hazardous locations?
A: Yes. It is a 670EX series model certified for Class 1 Division 2 and ATEX Zone 2 hazardous locations.

Q: Which wireless bands does this access point support?
A: It runs three concurrent radios on the 2.4 GHz, 5 GHz and 6 GHz bands, each with 2x2 MIMO, for a combined peak data rate of 3.9 Gbps.

Q: What type of antenna does the S0Q61A use?
A: It has integrated tri-band dynamic directional antennas that operate in wide and narrow modes. It does not use external antennas.

Q: How is the AP-679EX powered?
A: It is powered over Ethernet through its 2.5 Gigabit PoE-PD ports, with a maximum power consumption of 27.5 W. Intelligent Power Monitoring can adjust capabilities based on the available PoE power.

Q: What does the RW designation mean?
A: RW stands for Rest of World. It is the regulatory domain this SKU is configured for.

Q: What mounting options are available?
A: The access point can be pole-mounted or ceiling-mounted, and its IP66/IP67 enclosure is designed for outdoor deployments.
