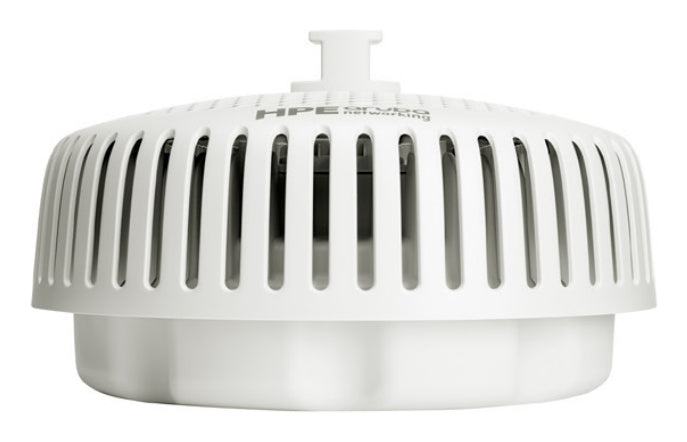

Aruba S0Q56A | AP-677EX Wi-Fi 6E Tri-Radio HazLoc Access Point, RW

Name: Aruba S0Q56A | AP-677EX Wi-Fi 6E Tri-Radio HazLoc Access Point, RW
Brand: Aruba
SKU: S0Q56A
Price: 6087.62 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:S0Q56A

Stock Status: Enquire

$6,087.62 inc. GST

$5,534.20 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The AP-677EX is a tri-radio, 2x2 Wi-Fi 6E outdoor access point with integrated directional antennas, certified for hazardous locations. This RW regulatory domain model suits industrial sites, ports, mines and other harsh environments where dependable high-speed wireless coverage is required, delivering up to 3.9 Gbps aggregate data rate across 2.4 GHz, 5 GHz and 6 GHz radios.

Bluetooth and Zigbee radios support Industrial IoT deployments, while an embedded GPS receiver simplifies location awareness. Wired connectivity is provided by a 2.5 GbE PoE-in port and a 1 GbE SFP port, and the fully sealed enclosure protects against airborne contaminants, moisture and precipitation.

Features

- High-performance outdoor Wi-Fi 6E for harsh and environmentally challenging locations
- 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as HD video and AR/VR
- High-power Bluetooth and Zigbee radios for Industrial IoT use cases
- Fast wired connectivity via a 2.5 GbE port and a 1 GbE SFP port
- Self-locating via embedded GPS
- Intelligent Power Monitoring (IPM) reports hardware energy usage
- Fully sealed enclosure protects against airborne contaminants, moisture and precipitation

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number S0Q56A (RW regulatory domain)
- Tri-radio 2x2:2 MIMO Wi-Fi 6E (802.11ax) with 2.4 GHz, 5 GHz and 6 GHz radios
- Up to 3.9 Gbps maximum aggregate data rate
- 160 MHz channels supported in the 6 GHz band
- Integrated tri-band directional antennas
- 2.5 GbE (E0) PoE-in port plus 1 GbE SFP port
- Power: IEEE 802.3bt PoE (PoE PD Class 6), or direct DC via optional power supply
- Bluetooth and Zigbee radios; USB-A port
- Embedded GPS receiver
- Dimensions (unit only): 290 x 288 x 171 mm
- Weight (unit only): 3.6 kg
- Hazardous location (HazLoc) certified EX model

FAQs

Q: Does the AP-677EX S0Q56A have built-in antennas?
A: Yes. It has integrated tri-band directional antennas, so no external antennas are required.

Q: Is this access point certified for hazardous locations?
A: Yes. The AP-677EX is a hazardous location (HazLoc) certified EX model, designed for environments where explosive atmospheres may be present.

Q: How is the AP-677EX powered?
A: It is powered by IEEE 802.3bt PoE (PoE PD Class 6) through the 2.5 GbE port, or by direct DC using an optional power supply.

Q: What wireless bands does it support?
A: It has three 2x2:2 radios covering 2.4 GHz, 5 GHz and 6 GHz, with 160 MHz channel support in the 6 GHz band and up to 3.9 Gbps maximum aggregate data rate.

Q: What wired uplink options are available?
A: The unit provides a 2.5 GbE PoE-in port and a 1 GbE SFP port for fibre or copper uplink flexibility.

Q: Can it support Industrial IoT devices?
A: Yes. It includes Bluetooth and Zigbee radios and a USB-A port to support Industrial IoT use cases.
