Aruba R7T30A | 580EX Series Wi-Fi 6 HazLoc Access Point, 4x4, Internal Omni

Name: Aruba R7T30A | 580EX Series Wi-Fi 6 HazLoc Access Point, 4x4, Internal Omni
Brand: Aruba
SKU: R7T30A
Price: 7580.22 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:R7T30A

Stock Status: Enquire

$7,580.22 inc. GST

$6,891.11 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

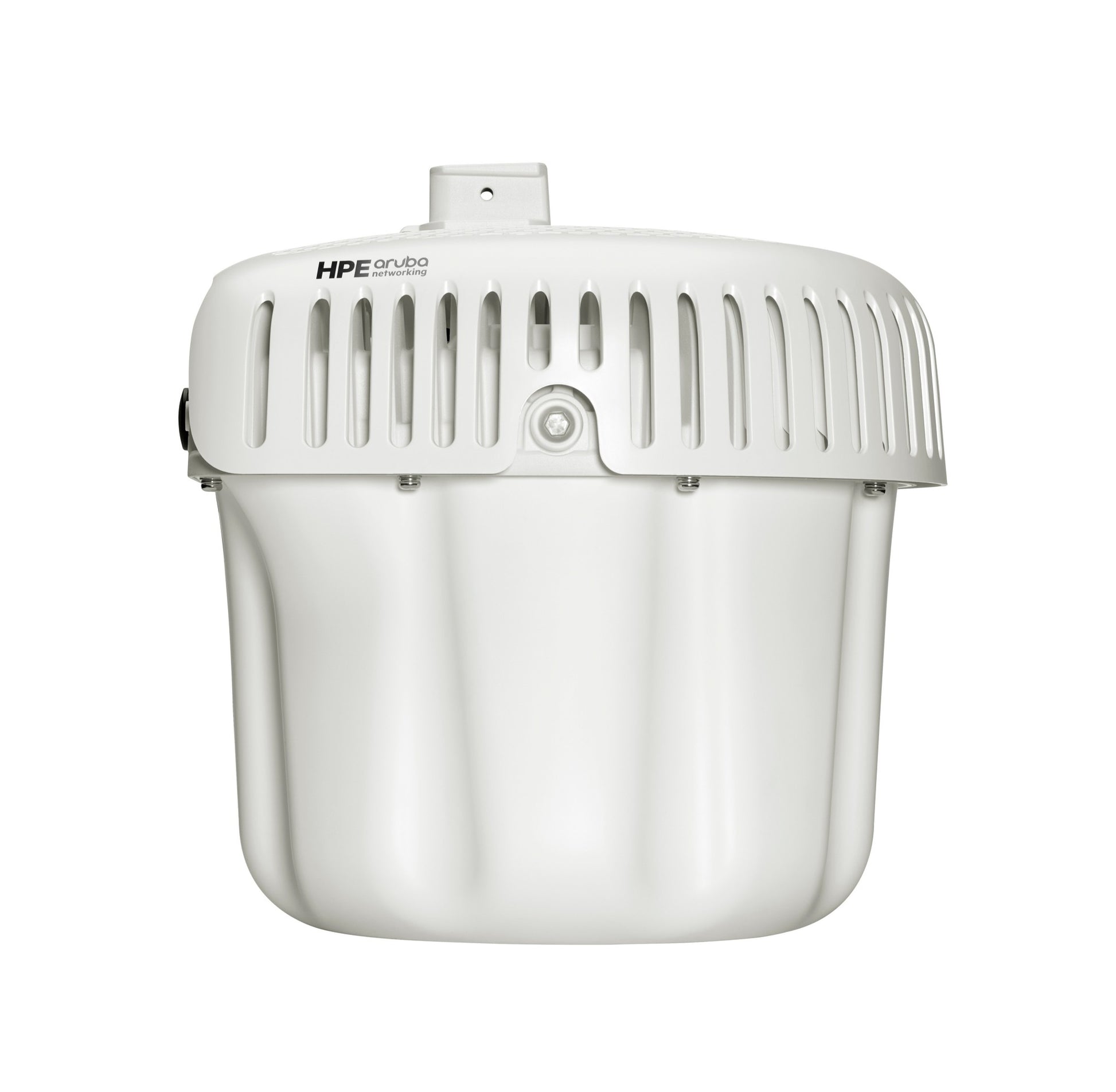

The AP-585EX is a Wi-Fi 6 (802.11ax) dual-radio 4x4 hazardous-location outdoor access point from the Aruba 580EX Series, built for industrial sites, oil rigs and other environments where standard wireless gear cannot be deployed. This Rest of World (RW) unified model uses internal omni-directional antennas and delivers a peak aggregate data rate of 2.97 Gbps across the 2.4 GHz and 5 GHz bands. It is sealed to IP66 and certified for Class 1 Div 2, ATEX Zone 2 and IECEx, with an operating range of -40 to 65 C.

Connectivity includes two RJ-45 Ethernet ports (1G/5G), one SFP+ port and a USB-C console interface. It can be powered by 802.3bt Class 6 PoE or by AC (110-240 V), with no add-on AC adapter needed. Built-in Bluetooth 5.0 and 802.15.4/Zigbee support Industrial IoT use cases, and the unit is managed on-premises, via cloud or as a service with Aruba OS 8, Instant OS 8 or Aruba OS 10.

Features

- Hazardous location rated: Class 1 Division 2, ATEX Zone 2 and IECEx, with IP66 sealing
- Wi-Fi 6 with a peak aggregate data rate of 2.97 Gbps
- High-power Bluetooth and 802.15.4/Zigbee support for Industrial IoT
- Multi-gigabit Ethernet with 802.3bt Class 6 PoE or AC power, no add-on AC adapter needed
- RF automation (AirMatch), client optimisation (ClientMatch) and AIOps insights
- Fully sealed with industrial surge protection, works with existing mounts
- Flexible management: on-premises, cloud or as a service

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Dual radio 4x4 802.11ax (Wi-Fi 6), 2.4 GHz and 5 GHz
- Peak aggregate data rate 2.97 Gbps
- Channel widths: 20/40 MHz (2.4 GHz), 20/40/80/(80+80) MHz (5 GHz)
- Multi-User MIMO, DSSS, OFDM and OFDMA
- Internal omni-directional antennas, 4 antennas, 5.8 dBi maximum gain
- 2 x RJ-45 Ethernet (1G/5G), 1 x SFP+, 1 x USB-C console
- 802.3bt Class 6 PoE or AC power (110-240 V)
- Typical power consumption 71 W
- IP66 sealed enclosure
- Class 1 Div 2, ATEX Zone 2, IECEx certified
- Operating temperature -40 to 65 C, humidity 5-93%
- Bluetooth 5.0 and 802.15.4/Zigbee
- WPA2 and WPA3 security
- Supports up to 1024 users
- Dimensions 320 x 324 x 313 mm, weight 5.24 kg
- Ceiling, pole or wall mounting

FAQs

Q: What hazardous location certifications does the AP-585EX hold?
A: It is certified for Class 1 Div 2, ATEX Zone 2 and IECEx, and is sealed to IP66, making it suitable for oil rigs and other industrial hazardous environments.

Q: How is the AP-585EX powered?
A: It can run from 802.3bt Class 6 PoE or from AC power (110-240 V). No add-on AC adapter is needed.

Q: Does this model include internal or external antennas?
A: This R7T30A model has internal omni-directional antennas (4 antennas, 5.8 dBi maximum gain), so no external antennas are required.

Q: Which Wi-Fi standard and bands does it support?
A: It supports Wi-Fi 6 (802.11ax) on dual 4x4 radios in the 2.4 GHz and 5 GHz bands, with a peak aggregate data rate of 2.97 Gbps. It does not support 6 GHz.

Q: What uplink and console ports are available?
A: It has two RJ-45 Ethernet ports (1G/5G), one SFP+ port and a USB-C console interface.

Q: Does it support IoT connectivity?
A: Yes. It includes Bluetooth 5.0 and 802.15.4/Zigbee radios for Industrial IoT deployments.
