Aruba R4W66A | AP-567EX Wi-Fi 6 HazLoc Access Point, 2x2, Directional, RW

Name: Aruba R4W66A | AP-567EX Wi-Fi 6 HazLoc Access Point, 2x2, Directional, RW
Brand: Aruba
SKU: R4W66A
Price: 3688.64 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:R4W66A

Stock Status: Enquire

$3,688.64 inc. GST

$3,353.31 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

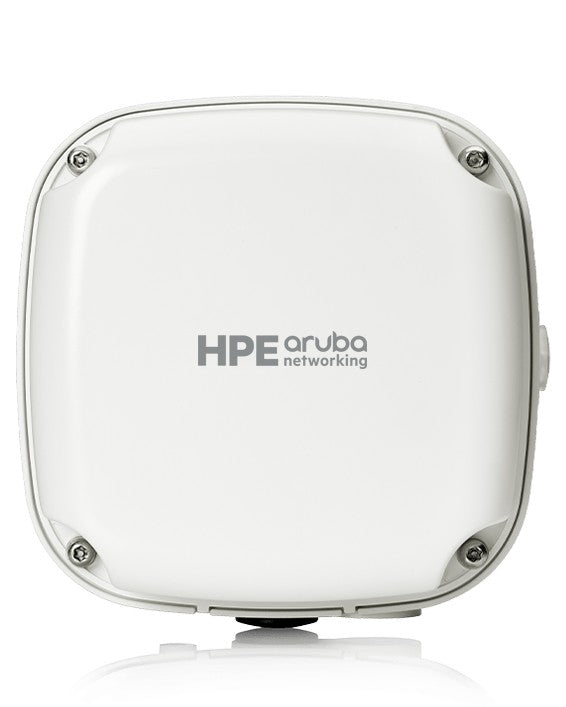

The AP-567EX is a Wi-Fi 6 (802.11ax) HazLoc access point built for outdoor and hazardous-location deployments. This RW model features a dual radio 2x2 MU-MIMO design with internal directional antennas, delivering up to 1.73 Gbit/s wireless transmission speed across the 2.4 GHz and 5 GHz bands.

The unit is weatherproof, temperature hardened and fully sealed against airborne contaminants, with industrial-strength surge protection on all electrical interfaces. A single Gigabit Ethernet port supports PoE powered device operation, and an integrated Bluetooth 5 radio acts as a beacon to enable Aruba location services. Aruba ClientMatch technology helps steer clients to the best available radio.

Features

- Weatherproof and temperature hardened for outdoor and hazardous locations
- Fully sealed against airborne contaminants
- Industrial-strength surge protection on all electrical interfaces
- Aruba ClientMatch technology for optimised client steering
- Integrated Bluetooth beacon to enable Aruba location services
- Internal directional antennas for focused coverage
- Beamforming and MU-MIMO for efficient multi-client performance
- WPA3 and WPA2-MPSK data encryption

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 6 (802.11ax), dual radio 2x2 MU-MIMO
- Up to 1.73 Gbit/s wireless transmission speed
- 2.4 GHz and 5 GHz frequency bands
- Maximum aggregate on-air data rate of 1.49 Gbps (HE80/HE20)
- Internal directional antennas
- 1 x Gigabit Ethernet (RJ-45) port with PoE PD
- Bluetooth 5
- Beamforming supported
- Encryption: WPA, WPA2-MPSK, WPA3
- Power consumption: 15.6 W
- Dimensions: 4.3 in (H) x 6.5 in (W) x 6.5 in (D)
- Weight: approximately 2.4 lb
- Hazardous location (HazLoc) rated, outdoor
- Regulatory domain: RW (rest of world)

FAQs

Q: What type of environment is the AP-567EX designed for?
A: It is designed for outdoor and hazardous-location environments. The unit is weatherproof, temperature hardened and fully sealed against airborne contaminants.

Q: How is the AP-567EX powered?
A: It has a single Gigabit Ethernet RJ-45 port that supports PoE as a powered device, with a power consumption of 15.6 W.

Q: Does this access point use internal or external antennas?
A: This model uses internal directional antennas, so no external antennas are required.

Q: Which Wi-Fi standard and bands does it support?
A: It supports Wi-Fi 6 (802.11ax) on both the 2.4 GHz and 5 GHz bands, using a dual radio 2x2 MU-MIMO design.

Q: Does the AP-567EX support Bluetooth?
A: Yes. It includes Bluetooth 5 and an integrated beacon to enable Aruba location services.

Q: What does the RW designation mean?
A: RW indicates the rest-of-world regulatory domain version of the AP-567EX. Confirm that this domain suits your country of deployment before ordering.
