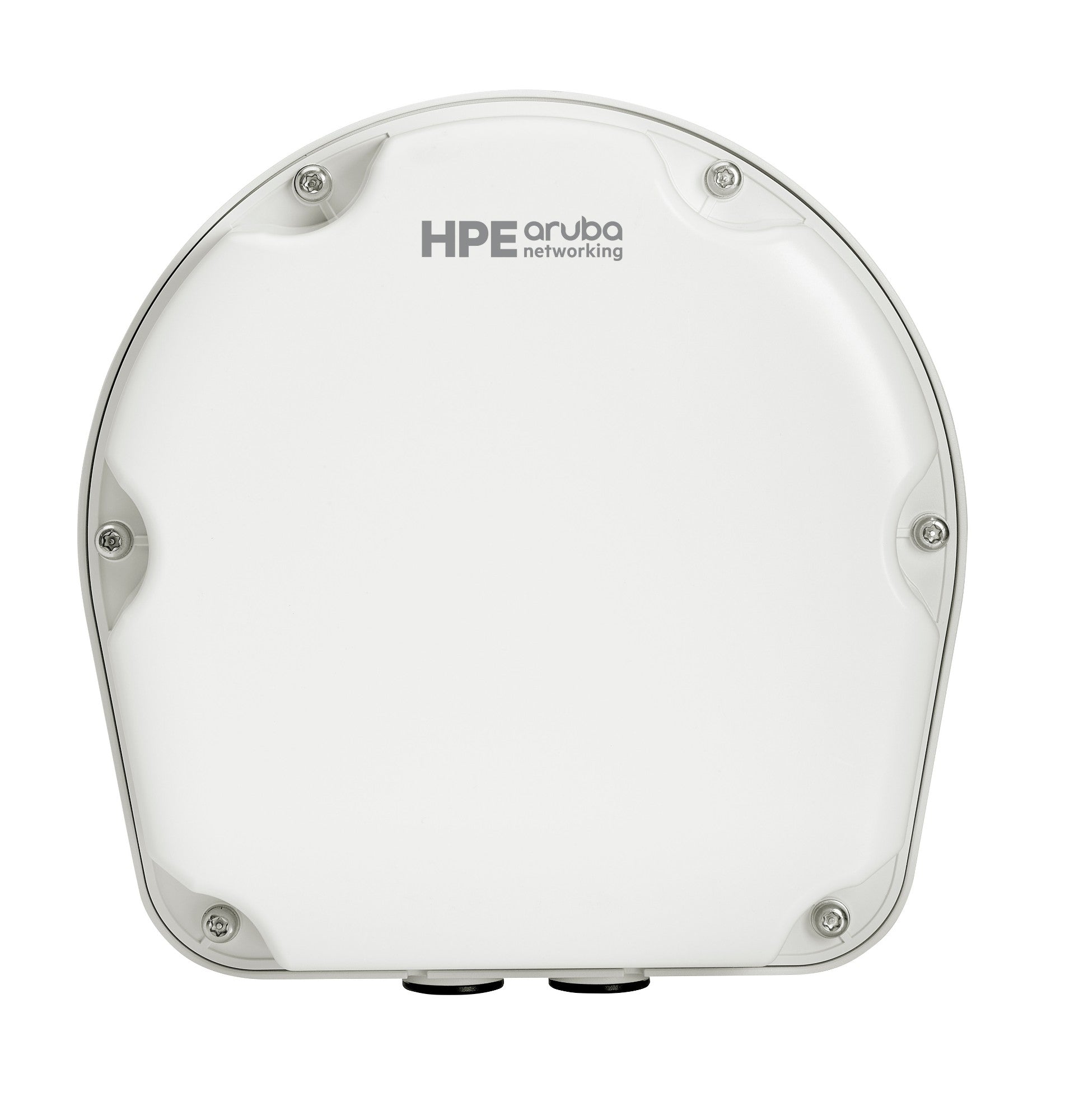

Aruba R4W38A | 570EX Series AP-577EX Wi-Fi 6 Outdoor Hazloc Access Point

Aruba R4W38A | 570EX Series AP-577EX Wi-Fi 6 Outdoor Hazloc Access Point

Authorised Aruba Partner

R4W38A

Stock Status: Enquire

$5,644.53 inc. GST
$5,131.39 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The AP-577EX is a Wi-Fi 6 (802.11ax) outdoor access point built for hazardous locations, certified for Class 1 Division 2 and ATEX Zone 2 environments. It pairs a 5 GHz 4x4:4 MU-MIMO radio with a 2.4 GHz 2x2:2 radio and built-in 90°H x 90°V internal directional antennas, delivering up to 4.8 Gbps on 5 GHz. This Rest of World (RW) regulatory domain model suits mines, refineries, ports, warehouses and other industrial sites that need high-density wireless coverage in tough conditions.

The IP66/IP67 enclosure operates from -40 to +65 °C, and the access point includes an HPE SmartRate 2.5G port plus a 100/1000BASE-T port, both PoE-PD capable. An integrated Bluetooth 5 and 802.15.4 (Zigbee) radio supports IoT and asset-tracking deployments. It can run controller-less in Instant mode or under a Mobility Controller, and is managed through Aruba Central or AirWave with Zero Touch Provisioning.

Features

- Class 1 Division 2 and ATEX Zone 2 certified for hazardous locations
- OFDMA and MU-MIMO for efficient multi-client performance
- Aruba ClientMatch AI-powered client optimisation
- Advanced Cellular Coexistence (ACC) to reduce cellular interference
- Intelligent Power Monitoring (IPM) adapts to the available PoE budget
- Target Wake Time (TWT) for battery-powered IoT devices
- WPA3 and Enhanced Open security
- Integrated TPM for secure storage of credentials and keys
- Policy Enforcement Firewall (PEF) and Dynamic Segmentation support
- Controller-less (Instant) or Mobility Controller operation
- Managed via Aruba Central or AirWave with Zero Touch Provisioning
- Industrial surge protection on all electrical interfaces
- LACP link aggregation between both network ports

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 6 (802.11ax) dual radio: 5 GHz 4x4:4 MU-MIMO and 2.4 GHz 2x2:2 MIMO
- Maximum data rates: up to 4.8 Gbps (5 GHz HE160) and 575 Mbps (2.4 GHz HE40)
- Built-in 90°H x 90°V directional antennas: 5.6 dBi (5 GHz), 6.8 dBi (2.4 GHz)
- Integrated Bluetooth 5 and 802.15.4 (Zigbee) radio
- Network ports: 1 x HPE SmartRate RJ-45 (100/1000/2500BASE-T) and 1 x 100/1000BASE-T RJ-45, both 802.3at/bt PoE-PD
- USB-C console port, reset button and multi-colour status LED
- Max power consumption: 32.0 W (dual PoE), 26.1 W (single PoE, full function)
- Supported channel widths: HE20/40/80/160
- Up to 512 associated clients per radio, 16 BSSIDs per radio
- Ingress protection: IP66/IP67
- Operating temperature: -40 to +65 °C with full solar loading
- Operating humidity: 5% to 93% non-condensing
- Dimensions (W x D x H): 23 x 22 x 14 cm, weight 2.1 kg
- Regulatory domain: RW (Rest of World), regulatory model APEX0577
- Minimum software: ArubaOS and Aruba InstantOS 8.7.0.0

FAQs

Q: What hazardous location ratings does the AP-577EX hold?
A: The AP-577EX is suitable for Class 1 Division 2 and ATEX Zone 2 hazardous locations, and its enclosure is rated IP66/IP67 for dust and water protection.

Q: What antennas does the AP-577EX use?
A: It has built-in 90°H x 90°V directional antennas, with 5.6 dBi gain at 5 GHz and 6.8 dBi gain at 2.4 GHz. This SKU uses the internal directional antennas, so no external antennas are required.

Q: How is the AP-577EX powered?
A: Both network ports accept 802.3at/bt PoE-PD. Maximum consumption is 32.0 W with dual PoE and 26.1 W with single PoE at full function, and Intelligent Power Monitoring adapts the AP to the available PoE budget.

Q: Can the AP-577EX run without a wireless controller?
A: Yes. It can run controller-less in Aruba Instant mode or be managed by an Aruba Mobility Controller. It can also be managed through Aruba Central or AirWave with Zero Touch Provisioning. Minimum software is ArubaOS and InstantOS 8.7.0.0.

Q: What does the RW suffix mean on this model?
A: RW denotes the Rest of World regulatory domain. Confirm that RW is approved for your country of deployment before ordering, as the regulatory domain is fixed on the hardware.

Q: Does the AP-577EX support IoT devices?
A: Yes. It includes an integrated Bluetooth 5 and 802.15.4 (Zigbee) radio, and Target Wake Time (TWT) support helps conserve battery life on compatible IoT clients.
