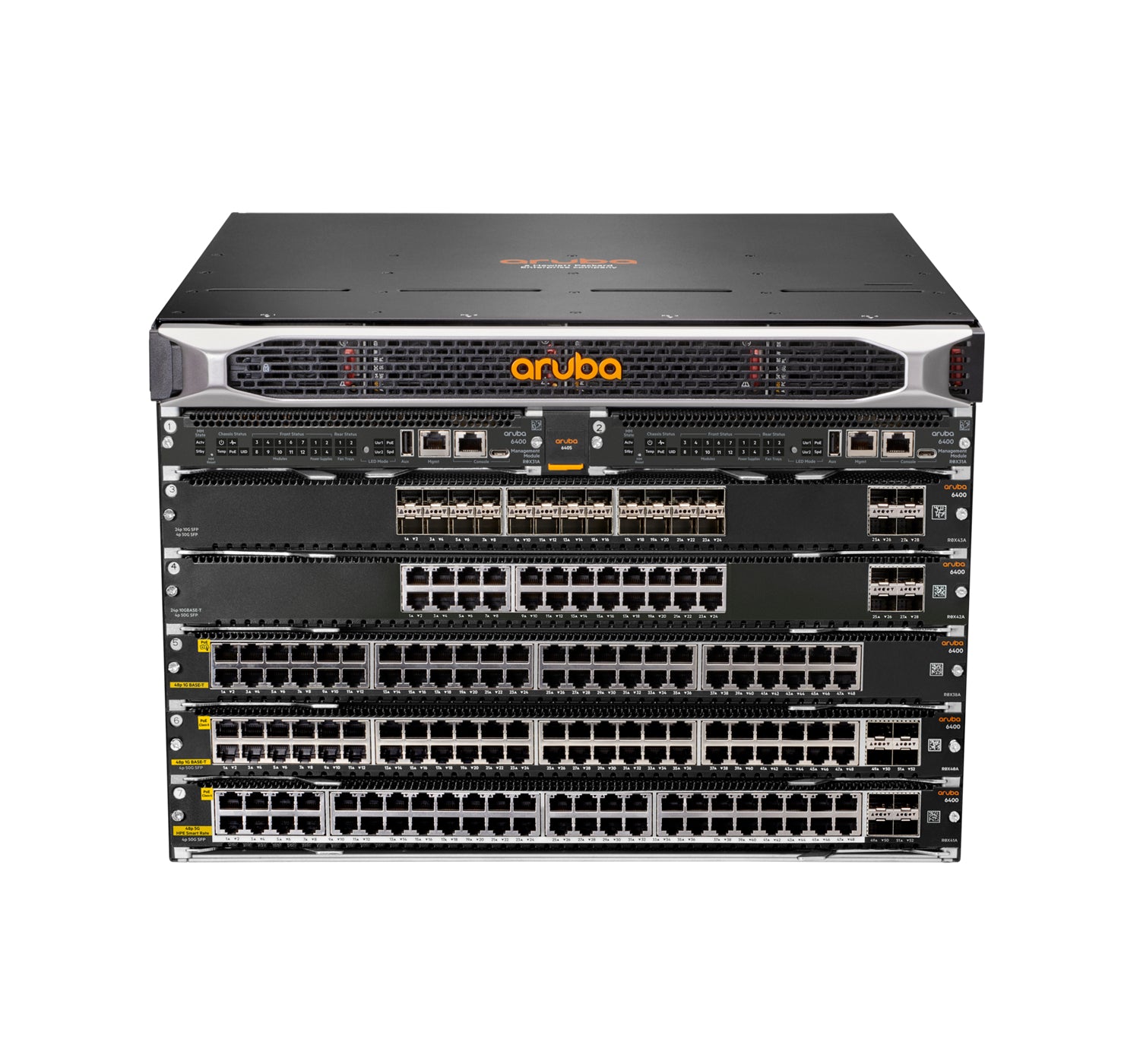

Aruba R0X26A | 6405 Switch

Additional Ports and Slots

1x RJ‑45 console port

1x USB‑C console port

1x OOBM

1x USB Type A host port

1x Bluetooth dongle to be used with CX Mobile App

Power Supplies

Supports four modular front‑serviceable power supplies with removable rear‑serviceable power cord inlet adapters.

Supported power supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.

Fan Tray

Two field replaceable system fan trays

Physical Characteristics

Dimensions

17.5 (w) x 17.7 (d) x 12.1 (h) in

(44.26 x 44.85 cm x 30.66 cm)

Weight

64.7 lbs (29.3 kg)

Mounting and Enclosure

Cable management kit included. 2‑post rack mounting kit included.

4‑post rack mounting kit available separately

CPU

Management Module: Quad Core ARM Cortex™ A72 @ 1.8GHz

Line Card: Dual Core ARM Cortex™ A72 @ 1.8GHz

Memory and Flash

Management Module: 16GB DDR4 ECC memory; 32GB eMMC Flash memory

Line Card: 4GB DDR4 memory

Packet Buffer

R0X38B‑R0X43A Line Cards: 8MB packet buffer memory per line card

R0X44A‑R0X45A Line Cards: 32MB packet buffer memory per line card

Performance

System switching capacity

14 Tbps

System throughput capacity

5.7 Bpps

Average latency (LIFO-64-bytes packets)

1G: 5.32 μSec

10G: 1.48 μSec

25G: 2.78 μSec

40G: 1.31 μSec

100G: 1.42 μSec

Switched virtual interfaces (dual stack)

2,048

IPv4 host table (ARP)

49,152; Up to 163,840 for R0X44C and R0X45C 2

IPv6 host table (ND)

49,152; Up to 163,840 R0X44C and R0X45C 2

IPv4 unicast routes

61,000; Up to 630,780 R0X44C and R0X45C 2

IPv6 unicast routes

61,000; Up to 598014 R0X44C and R0X45C 2

Notes: 2 R0X44C and R0X45C increased scale requires all line cards to be R0X44C/R0X45C – any inclusion of other line cards will reduce scale to original values.

Ipv4 multicast routes

8,192

Ipv6 multicast routes

8,192

MAC table capacity

32,768

IGMP groups

8,192

MLD groups

8,192

Performance

Ipv4/Ipv6/MAC ACL entries (ingress)

64,000 / 16,384 / 64,000 per line card for R0X44A/R0X44C and R0X45A/R0X45C;

20,480/5,120/20,480 per line card for all other line cards

Ipv4/Ipv6/MAC ACL entries (Egress)

64,000 / 16,384 / 64,000 per line card for R0X44A/R0X44C and R0X45A/R0X45C;

8,192/2,048/8,192 per line card for all other line cards

VRF

256

Environment

Operating temperature

32° to 113°F (0° to 45°C), up to 5,000 feet

32° to 104°F (0° to 40°C), 5,001 to 10,000 feet

1°C de‑rating per 1,000 feet above 5,000 feet

Operating humidity

15% to 95% relative humidity at 113°F (45°C), non‑condensing

Non-operating temperature

‑40° to 158°F (‑40° to 70°C)

Non-operating humidity

15% to 95% relative humidity at 149°F(65°C), non‑condensing

Max operating altitude

Up to 10,000ft (3.048 Km)

Max non-operating altitude

Up to 10,000ft (3.048 Km)

Acoustics

Sound power (LWAd): 6.6 Bel

Sound pressure (LpAm, bystander): 46.6 dB when tested with 2 x 1800W PSU (R0X35A), 2 x fan trays, 370W of PoE and traffic on all ports

Sound power (LWAd): 6.5 Bel

Sound pressure (LpAm, bystander): 46.3 dB when tested with 2 x 3000W PSU (R0X36A), 2 x fan trays, 370W of PoE and traffic on all ports

Primary airflow

Front-to-back

Electrical Characteristics

Frequency

50-60 Hz

AC voltage

R0X35A and R0X36A PSUs: 110‑127 / 200‑240VAC

Current

R0X35A PSU: 12A @ 110‑127VAC, 10A @ 200‑240VAC

R0X36A PSU: 16A @ 110‑240VAC

Power output

R0X35A PSU: 1800W @ 200‑240VAC, 1100W @ 110‑127VAC R0X36A PSU: 3000W @ 200‑240VAC, 1500W @

110‑127VAC

Safety

EN 60950‑1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013; EN62368‑1:2014; IEC 60950‑1:2005 Ed.2; AM 1:2009+A2:2013; IEC 62368‑1 Ed. 2; IEC 60825:2007 (Applies to products with lasers); UL 60950‑1, CSA 22.2 No 60950‑1; UL 62368‑1 Ed. 2

Emissions

VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000‑3‑2; IEC/EN 61000‑3‑3; ICES‑003 Class A; AS/NZS CISPR 22 Class A; FCC (CFR 47, Part 15) Class A; GB9254; EN55032:2012 Class A; CISPR32:2012 Class A

Immunity

Generic

Directive 2014/35/EU

EN

EN 55024:2010 +A1:2001 +A2:2003; ETSI EN 300 386 V1.3.3

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power Frequency Magnetic Field

IEC 61000-4-8

Voltage Dips and Interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3
