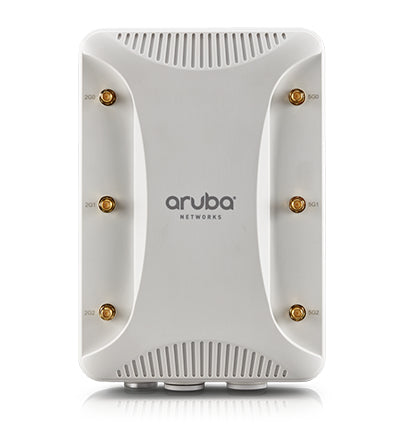

Aruba JW245A | Instant IAP-228 Hardened Dual-Radio 802.11ac Access Point, RW, 6x RP-SMA

Authorised Aruba Partner

SKU:JW245A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

End of life

This product is end of life. Contact us for alternatives.

Description

The Aruba JW245A Instant IAP-228 is a hardened, dual-radio 802.11ac access point built for harsh, weather-protected indoor environments such as warehouses, industrial freezers and stadiums. This RW regulatory domain model provides six RP-SMA connectors for external antennas, 3x3:3 MIMO on both radios, and a wider operating temperature range for spaces without heating or cooling.

It delivers up to 600 Mbps on 2.4 GHz and 1.3 Gbps on 5 GHz, with two 10/100/1000BASE-T Ethernet ports and PoE+ (802.3at) power. ClientMatch, transmit beamforming and maximum ratio combining help maintain consistent client performance in demanding RF environments. A power source is sold separately.

Features

- ClientMatch technology to eliminate sticky clients
- 802.11ac transmit beamforming
- Maximum ratio combining (MRC) for improved receive performance
- Cyclic delay diversity (CDD) for improved downlink RF performance
- 802.11ac VHT 20/40/80 support
- A-MPDU and A-MSDU packet aggregation
- Load balancing support for platform throughput above 1 Gbps
- Supports TurboQAM-enabled devices up to 600 Mbps on 2.4 GHz
- Wider operating temperature range for environments without heating and cooling

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Dual radio: 2.4 GHz 802.11n (600 Mbps max) and 5 GHz 802.11ac (1.3 Gbps max)
- 3x3:3 MIMO on each radio
- Six RP-SMA connectors for external antennas (three combined, diplexed per radio)
- 2 x 10/100/1000BASE-T Ethernet ports (RJ-45)
- Power over Ethernet PoE+ (802.3at) powered device
- Worst-case power consumption: 23W
- Serial console interface (Micro USB)
- Dimensions: 222 x 150 x 75 mm
- Weight: 1.225 kg
- Regulatory domain: RW (rest of world)
- Power source sold separately

FAQs

Q: Does the JW245A include antennas?
A: No. It provides six RP-SMA connectors for external antennas, so antennas are selected to suit the deployment.

Q: How is the IAP-228 powered?
A: It is powered via PoE+ (802.3at). A power source is sold separately, and worst-case power consumption is 23W.

Q: What environments is this access point designed for?
A: It is a hardened indoor model for harsh, weather-protected environments such as warehouses, industrial freezers and stadiums, with a wider operating temperature range.

Q: What wireless speeds does it support?
A: The 2.4 GHz radio supports up to 600 Mbps and the 5 GHz 802.11ac radio supports up to 1.3 Gbps, both with 3x3:3 MIMO.

Q: What regulatory domain is the JW245A?
A: This SKU is the RW (rest of world) regulatory domain model.

Q: How many network ports does it have?
A: It has two 10/100/1000BASE-T Ethernet ports (RJ-45), plus a Micro USB serial console interface.
