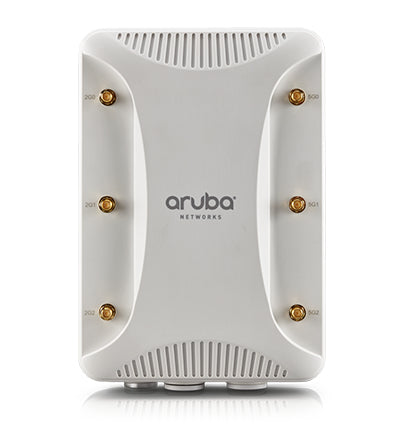

Aruba JW182A | AP-228 Indoor Hardened Wi-Fi Access Point, 3x3:3, 6x RP-SMA

Authorised Aruba Partner

SKU:JW182A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Aruba AP-228 JW182A is an indoor hardened 802.11ac dual-radio access point built for demanding environments such as warehouses, stadiums and other sites without climate control. It features dual 3x3:3 MIMO radios delivering up to 1.3 Gbps on 5 GHz and 600 Mbps on 2.4 GHz, with six RP-SMA connectors for external high-gain antennas.

The AP-228 can be managed by an Aruba Mobility Controller or deployed in controller-less Instant mode. It provides two 10/100/1000Base-T RJ-45 ports with PoE+ support and a micro-USB console port, and runs ArubaOS with ClientMatch and AppRF technologies for improved roaming and application performance.

Features

- ClientMatch technology improves roaming and reduces sticky-client behaviour
- AppRF technology prioritises and enforces policy for business-critical applications
- Managed by an Aruba Mobility Controller or deployed in controller-less Instant mode
- Hardened industrial design supports a wider operating temperature range for environments without heating or cooling
- Six RP-SMA connectors allow external high-gain antennas for tailored coverage

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Dual 3x3:3 MIMO radios (802.11n/ac)
- Up to 1.3 Gbps on 5 GHz and 600 Mbps on 2.4 GHz
- Dual-band 2.4 GHz and 5 GHz operation
- 2 x 10/100/1000Base-T RJ-45 ports with PoE+
- 1 x micro-USB console port
- 6 x RP-SMA external antenna connectors
- Typical power consumption: 23W
- Dimensions: 3in H x 5.9in W x 8.7in D
- Weight: approx. 1.2 kg (2.7 lbs)
- Runs ArubaOS

FAQs

Q: Does the Aruba AP-228 JW182A include antennas?
A: The AP-228 provides six RP-SMA connectors for external antennas. Compatible external antennas are used with these connectors to suit the coverage area.

Q: Can the AP-228 run without a controller?
A: Yes. It can be managed by an Aruba Mobility Controller or deployed in controller-less Instant mode.

Q: How is the AP-228 powered?
A: It supports PoE+ over its 10/100/1000Base-T RJ-45 ports, with a typical power consumption of 23W.

Q: What wireless speeds does the AP-228 support?
A: It has dual 3x3:3 radios delivering up to 1.3 Gbps on 5 GHz and up to 600 Mbps on 2.4 GHz using 802.11n/ac.

Q: What environments is the AP-228 designed for?
A: It is an indoor hardened access point suited to harsh environments such as warehouses and stadiums, with a wide operating temperature range for spaces without heating or cooling.
