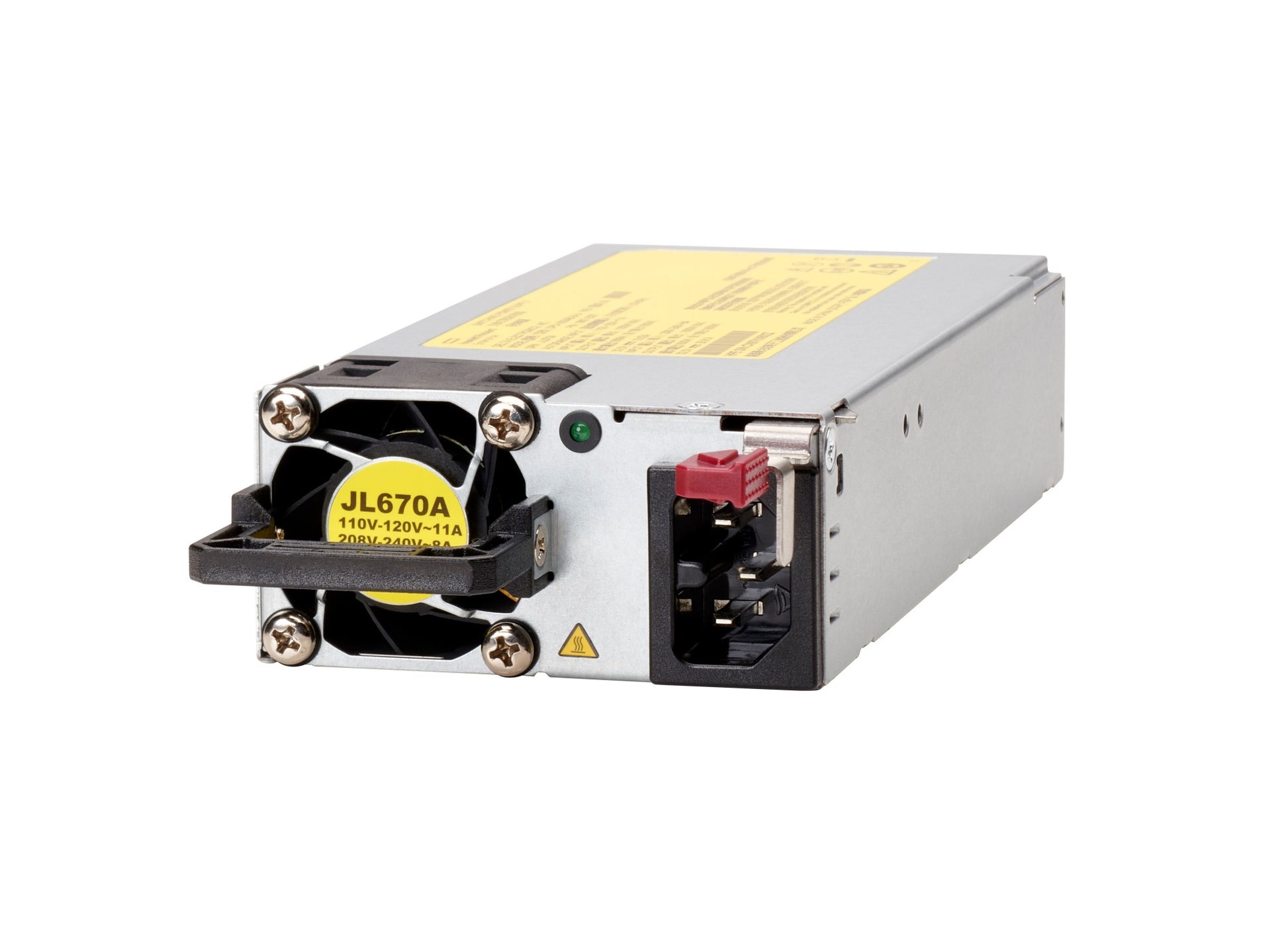

• Aruba JL670A 1600W silver PSU with black fan, red connector, yellow label
1 1

Aruba

Aruba JL670A | CX 6300 PoE Power Supply, 1600W, 54VDC

Aruba JL670A | CX 6300 PoE Power Supply, 1600W, 54VDC

Authorised Aruba Partner

JL670A

Stock Status: Enquire

$2,812.96 inc. GST
$2,557.24 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The JL670A is a 1600W, 54VDC PoE power supply for Aruba CX 6300 series switches. It accepts 110-240VAC input (high-line only) and delivers up to 1440W of PoE power, making it suited to deployments powering access points, IP phones and cameras from the switch.

This hot-swappable, field-replaceable module is keyed so it fits only the PoE-capable power supply slots on CX 6300 switches and will not seat in non-PoE slots. Each switch has two PSU slots, so a second unit can be fitted for redundancy and a higher combined PoE budget.

Features

- Hot-swappable and field-replaceable for redundant power
- Supports PoE budgeting on CX 6300M switches
- Keyed to prevent installation in non-PoE switch power supply slots
- Supports 110-240VAC high-line input
- Delivers up to 1440W of PoE power per supply

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated power: 1600W (high-line AC input only)
- Output voltage: 54VDC
- AC input voltage: 110-120V / 200V / 208-240V AC
- Input current: 11A / 9A / 8A
- Frequency: 50/60 Hz
- PoE power available: up to 1440W
- Dimensions (H x W x D): approx. 41 x 84 x 226 mm
- Form factor: hot-swappable, field-replaceable PSU module
- Compatibility: PoE-capable Aruba CX 6300 series switches only
- Safety: EN 62368-1, UL 62368-1, CSA-C22.2 No. 62368-1-14

FAQs

Q: Which switches is the JL670A compatible with?
A: It is designed for PoE-capable Aruba CX 6300 series switches, including the CX 6300M. It is keyed and will not fit non-PoE switch power supply slots.

Q: How much PoE power does the JL670A provide?
A: A single JL670A delivers up to 1440W of PoE power. With two supplies installed in a CX 6300M 48-port switch, the maximum PoE power across both is 2640W.

Q: Is the JL670A hot-swappable?
A: Yes. It is a hot-swappable, field-replaceable module, so it can be installed or replaced without powering down the switch.

Q: What AC input does this power supply require?
A: It accepts 110-240VAC input (110-120V, 200V and 208-240V ranges at 50/60 Hz) and is a high-line input supply for its full 1600W rating.

Q: Can I fit two JL670A units in one switch?
A: Yes. CX 6300 switches have two PSU slots, so you can fit a second supply for power redundancy and a higher combined PoE budget.
