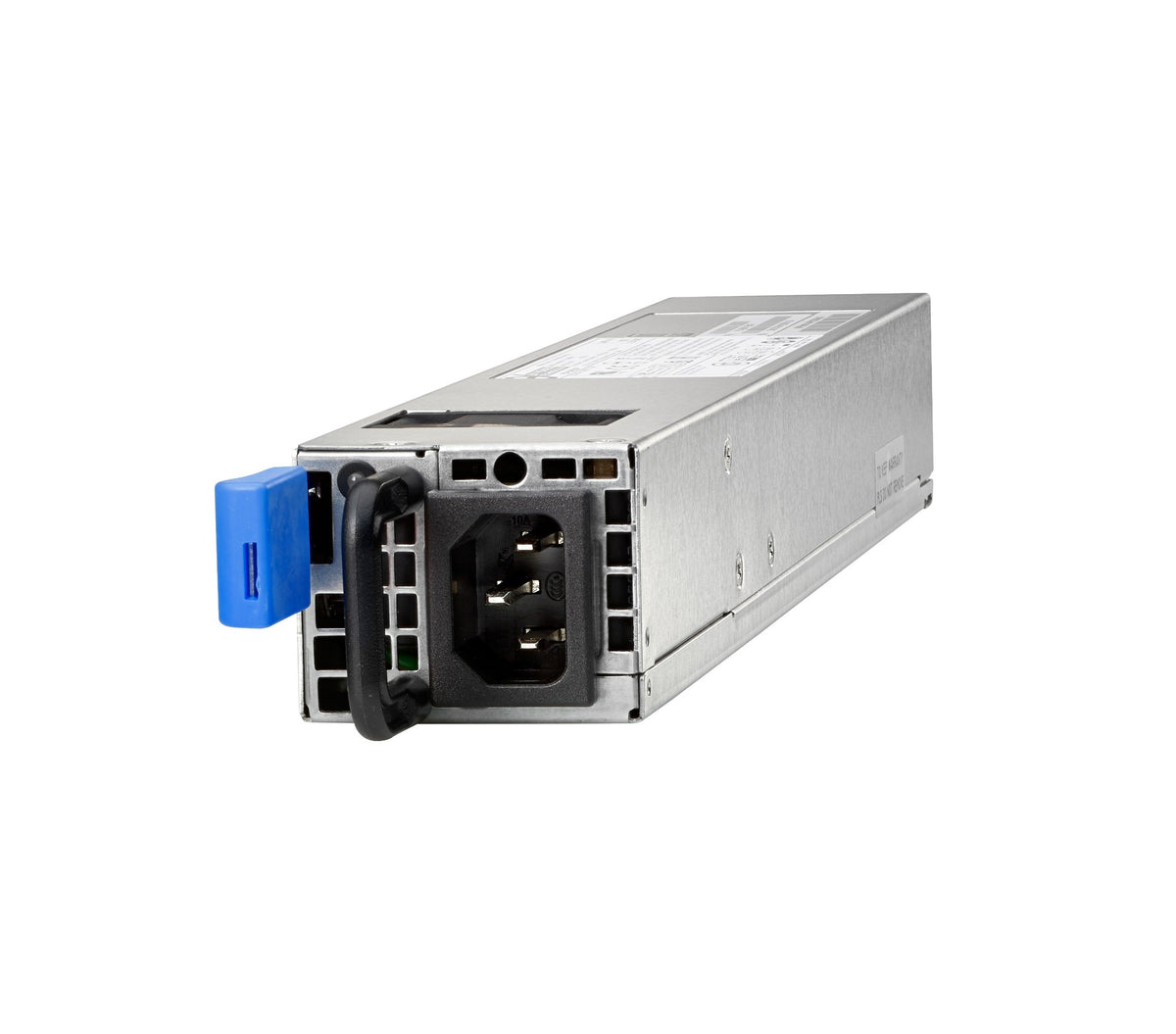

Aruba JL633A | CX 8325 650W AC Power Supply, Back-to-Front Airflow

Authorised Aruba Partner

SKU:JL633A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The 650W 100-240VAC power supply for the Aruba CX 8325 switch series delivers hot-swappable, redundant power with Back-to-Front airflow. It is designed for CX 8325 data centre switches (8325-48Y8C and 8325-32C), and the auto-ranging AC input suits both low-line and high-line rack power feeds.

The CX 8325 chassis provides two PSU slots, so fitting a second supply enables load sharing and redundancy. This Back-to-Front airflow unit must be paired with matching Back-to-Front fan trays so the cooling direction stays consistent across the chassis. It can be replaced in the field without taking the switch offline when a second supply is installed.

Features

- Wide-range 100-240 VAC input with automatic voltage adjustment
- Hot-swappable and field-replaceable
- Two PSU slots support load sharing, redundancy and fault tolerance
- Back-to-Front airflow to match the switch cooling direction
- Included in the JL625A and JL627A Back-to-Front switch bundles

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Power supply (internal plug-in module)
- Output power: 650 W
- AC input voltage: 100-240 VAC, auto-ranging
- Frequency: 50-60 Hz
- Airflow direction: Back-to-Front
- Hot-swappable: Yes
- Redundancy: Load sharing and redundancy with two PSUs installed (2 PSU slots)
- Compatibility: Aruba CX 8325 switch series (8325-48Y8C, 8325-32C)
- Matching fan trays: Back-to-Front (JL629A, JL631A)

FAQs

Q: Which switches is the JL633A power supply compatible with?
A: It is designed for the Aruba CX 8325 switch series, including the 8325-48Y8C and 8325-32C models.

Q: What airflow direction does this power supply use?
A: It has Back-to-Front airflow. It should be installed with matching Back-to-Front fan trays (JL629A or JL631A) so the chassis cooling direction is consistent.

Q: Is there a front-to-back version of this power supply?
A: Yes, the Front-to-Back equivalent is JL632A. Do not mix airflow directions within the same switch.

Q: Can I run the switch with two power supplies for redundancy?
A: Yes. The CX 8325 chassis has two PSU slots, and installing two supplies provides load sharing and redundancy.

Q: Is the power supply hot-swappable?
A: Yes, it is hot-swappable and field-replaceable. With a second supply installed, a unit can be replaced without taking the switch offline.

Q: What input voltage does the JL633A accept?
A: It accepts 100-240 VAC at 50-60 Hz with automatic voltage ranging, and provides 650 W output.
