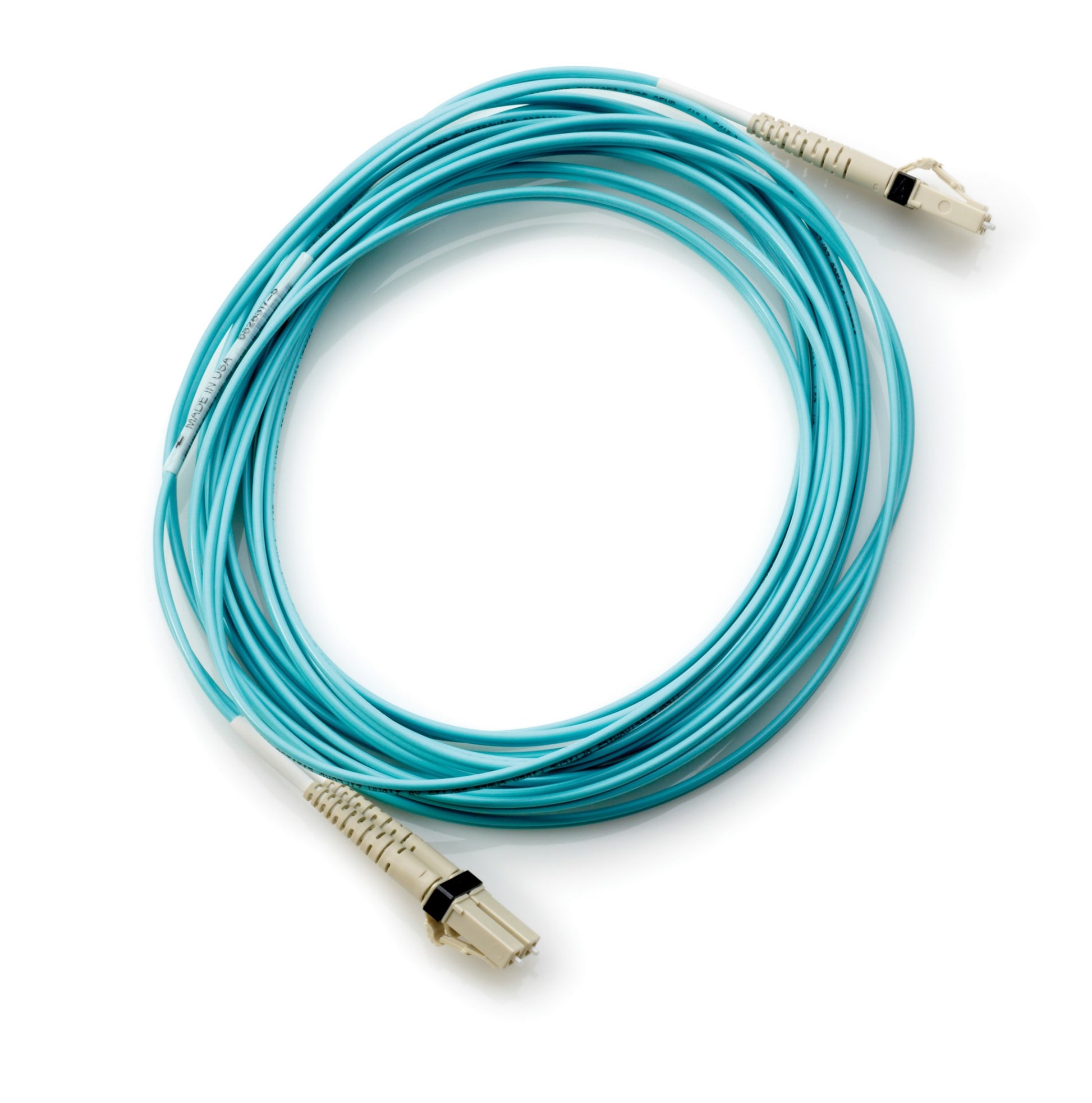

HPE AJ834A | 1m LC to LC OM3 Multimode Fibre Optic Cable, 1-Pack

HPE AJ834A | 1m LC to LC OM3 Multimode Fibre Optic Cable, 1-Pack

Authorised HPE Partner

SKU:AJ834A

$16.49 inc. GST
$14.99 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The HPE 1m LC to LC OM3 multimode fibre optic cable is a 2-fibre duplex 50/125 µm patch lead for short-run connections in datacentre, SAN and LAN environments. This 1.0 m, 1-pack version supports 10Gbps Ethernet over distances up to 300 m, and is tested and qualified for HPE Fibre Channel and 10GbE switches, directors, routers, blade server switches and SAN products.

Built with LC duplex connectors on both ends and a tight buffered, low smoke zero halogen aqua jacket, the cable uses laser-optimised OM3 fibre with an effective modal bandwidth of 2000 MHz/km. It suits rack-to-rack and in-rack links where maximum bandwidth, reach and compatibility with HPE infrastructure are required.

Features

- Suited to datacentre, SAN and LAN Fibre Channel and 10GbE deployments
- Laser-optimised OM3 fibre for maximum bandwidth and reach
- Tested and qualified across HPE FC and 10GbE switches, directors, routers, blade server switches and SAN product families
- Duplex LC connectors on both ends for easy installation and flexible connectivity
- Low smoke zero halogen jacket with aqua colour coding for OM3 identification

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Length: 1.0 m
- Pack: 1-Pack
- Fibre type: Multimode OM3 50/125 µm, 2-fibre duplex
- Connectors: LC duplex to LC duplex
- Effective modal bandwidth: 2000 MHz/km
- Maximum distance: 300 m at 10Gbps Ethernet
- Core diameter: 50 ± 3.0 µm
- Cladding diameter: 125 ± 2.0 µm
- Coating diameter: 245 ± 10 µm
- Bandwidth (LED sources): 1500/500 MHz-km @ 850/1300 nm
- Bandwidth (laser sources): 2000/500 MHz-km @ 850/1300 nm
- Jacket material: Riser grade, low smoke zero halogen thermoplastic
- Jacket colour: Aqua
- Boot colour: White
- Insertion loss: less than 0.5 dB @ 850 nm with LED source
- Maximum cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1310 nm

FAQs

Q: What distance does this cable support at 10Gbps?
A: It supports 10Gbps Ethernet up to 300 m over OM3 50/125 µm multimode fibre, although at 1 m it is intended for short in-rack and rack-to-rack patching.

Q: What connectors does the AJ834A use?
A: It has LC duplex connectors on both ends, so it connects LC-based optical ports such as SFP and SFP+ transceivers on both sides.

Q: Is this cable multimode or single-mode?
A: It is multimode OM3 50/125 µm fibre and should be paired with multimode (SR-type) optics, not single-mode optics.

Q: Is it suitable for Fibre Channel as well as Ethernet?
A: Yes. It is tested and qualified for HPE Fibre Channel and 10GbE switches, directors, routers, blade server switches and SAN products.

Q: How many cables are included?
A: This SKU is a 1-pack containing a single 1.0 m duplex LC to LC cable.

Q: What is the jacket colour and material?
A: The jacket is aqua, the standard colour for OM3 multimode fibre, and is made from riser grade low smoke zero halogen thermoplastic.
