Arista PWR-1011-AC-RED | 7280R3 1000W AC Power Supply, Forward Airflow, 73.5mm
Arista PWR-1011-AC-RED | 7280R3 1000W AC Power Supply, Forward Airflow, 73.5mm
Authorised Arista Partner
SKU:PWR-1011-AC-RED
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

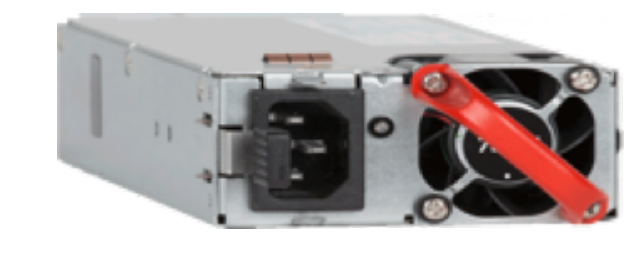

The PWR-1011-AC-RED is a 1000W AC power supply for Arista 7280R3 series switches, with forward (front-to-rear) airflow in a 73.5mm form factor. It is a hot-swappable module that provides 1+1 redundant power in two-PSU systems, and the RED colour coding identifies the front-to-rear airflow variant so it matches the fan trays in the chassis.
It accepts a universal 100-240V AC input through a standard IEC 60320 C14 connector at 50/60 Hz, and delivers typical efficiency of 93% (80 PLUS Platinum) to help reduce operating costs. Make sure the airflow direction matches the rest of your switch and fan configuration, as the rear-to-front variant is colour-coded BLUE.
Features
Features
- Hot-swappable power supply module for 1+1 redundant power
- 93% Platinum-rated efficiency for lower operating cost
- RED colour coding for forward (front-to-rear) airflow to match fan trays
- Universal 100-240V AC input with standard IEC C14 connector
- Compatible with Arista 7280R3 series switches
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output power: 1000W
- Input voltage: 100-240V AC
- Input frequency: 50/60 Hz
- Typical input current: 12.0 - 6.0 A
- Input connector: IEC 60320 C14
- Efficiency (typical): 93% (80 PLUS Platinum)
- Airflow: forward (front-to-rear), RED colour-coded
- Form factor: 1RU, 73.5mm
- Hot-swappable, 1+1 redundant
FAQs
Q: What airflow direction does the PWR-1011-AC-RED support?
A: It is the forward (front-to-rear) airflow variant, identified by RED colour coding. The rear-to-front equivalent is colour-coded BLUE.
Q: Is this power supply hot-swappable?
A: Yes. It is hot-swappable and provides 1+1 redundancy in systems fitted with two power supplies.
Q: What input voltage and connector does it use?
A: It accepts 100-240V AC at 50/60 Hz through a standard IEC 60320 C14 inlet.
Q: What is the power output and efficiency?
A: It delivers 1000W of output power with typical efficiency of 93%, meeting 80 PLUS Platinum.
Q: Can I mix RED and BLUE power supplies in one switch?
A: No. Power supplies and fan trays should share the same airflow direction, so use matching RED modules in a front-to-rear airflow configuration.
Q: Which Arista switches is this compatible with?
A: It is intended for Arista 7280R3 series switches and is also used in 7050X3 series models such as the 7050SX3-96YC8. Check your chassis model for the supported PSU list before ordering.
