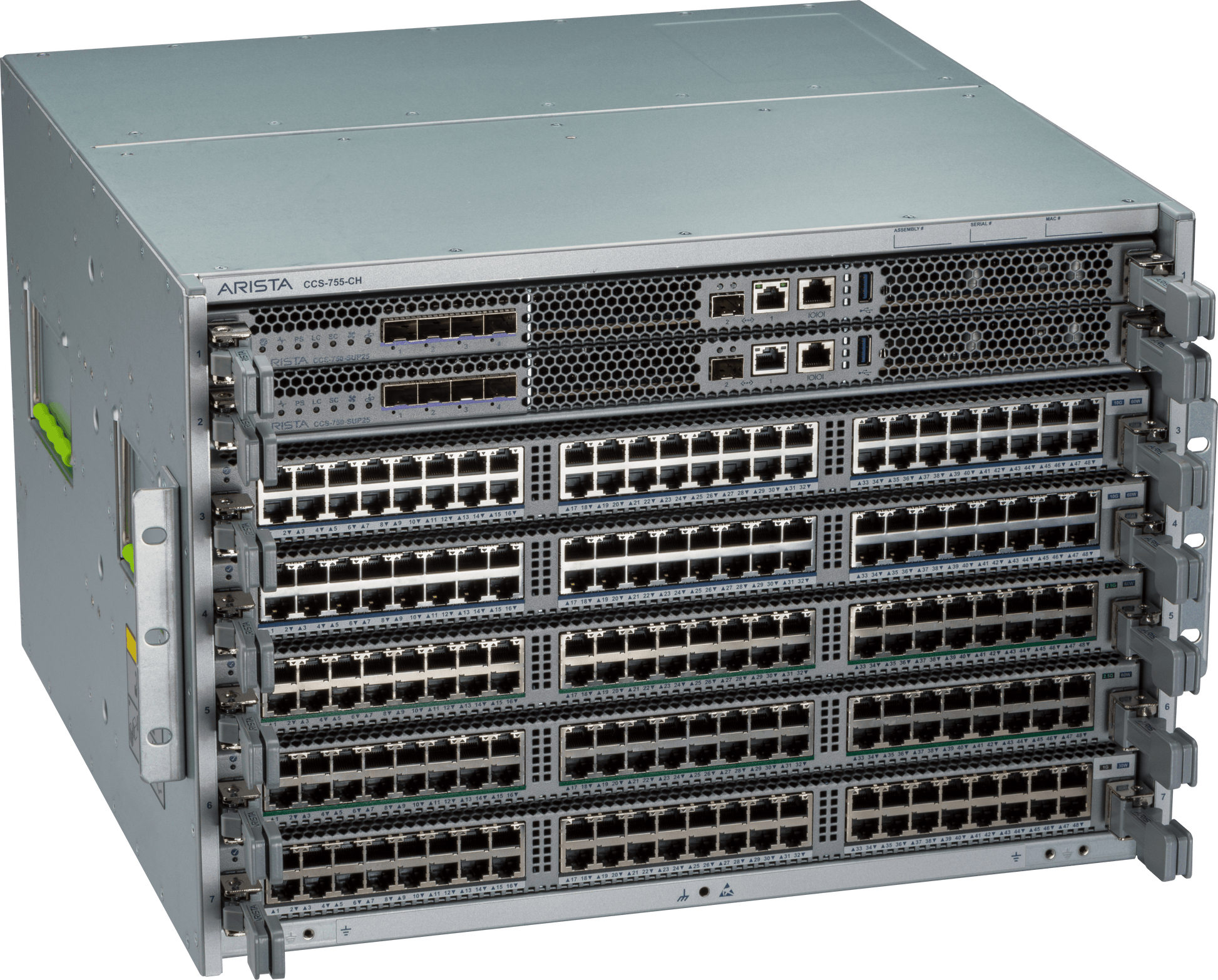

Arista CCS-758-25-BND-2 | 750X 8-Slot Modular Switch Chassis, 2x Sup25 25G SFP

Arista CCS-758-25-BND-2 | 750X 8-Slot Modular Switch Chassis, 2x Sup25 25G SFP

Authorised Arista Partner

SKU:CCS-758-25-BND-2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista CCS-758-25-BND-2 is a 750X 8-slot modular campus switch chassis bundle supplied with two Sup25 supervisor modules, each providing 4 x 25G SFP uplinks. Built for high-density campus networks, the 10RU CCS-758 chassis offers 2 supervisor slots and 8 linecard slots, scaling to up to 384 x 10G/2.5G/1G PoE ports with 60W and 90W capable options.

The bundle delivers active/standby redundancy for both supervisors and switch cards, with a fully independent control plane and data plane. Each Sup25 supervisor includes a quad-core x86 processor, 16GB RAM and 120GB storage, and the 750X platform requires EOS 4.25.0FX-750X or later. This makes it a compact, scalable foundation for campus spine and distribution deployments.

Features

- High-performance modular PoE system for campus networks
- Fully independent control plane and data plane with SSO between redundant supervisors and switch cards
- Hitless active/standby switch card communication toward campus spines and splines
- Compact form factor saving space and power while maximising port density
- Supervisor options with 10/25G or 40/100G uplinks for future-proofing

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8-slot chassis (CCS-758), 10RU
- 2 supervisor slots, 8 linecard slots
- Includes 2 x Sup25 supervisor modules
- Sup25: 4 x SFP 25G uplinks, quad-core x86, 16GB RAM, 120GB storage
- Up to 384 x 10G/2.5G/1G PoE ports (60W/90W capable) per chassis
- Switch card CCS-758-X3-SC: 1.6Tbps throughput, 850Mpps
- 1+1 active/standby redundancy
- Minimum EOS 4.25.0FX-750X
- Switch card typical power 101W, maximum 174W
- Input power circuits: 10, AC branch circuit protection 20A

FAQs

Q: What does the CCS-758-25-BND-2 bundle include?
A: The bundle pairs the 8-slot CCS-758 750X chassis with two Sup25 supervisor modules, each offering 4 x 25G SFP uplinks.

Q: How many PoE ports does the chassis support?
A: The chassis scales to up to 384 x 10G/2.5G/1G PoE ports, with 60W and 90W capable ports, depending on the linecards installed.

Q: Does it support supervisor redundancy?
A: Yes. The platform runs 1+1 active/standby redundancy with SSO between supervisors and switch cards, using a fully independent control plane and data plane.

Q: What uplink speeds does the Sup25 supervisor provide?
A: Each Sup25 supervisor provides 4 x SFP uplinks at 25G. Supervisor options with 10/25G or 40/100G uplinks are available across the 750X range.

Q: What EOS version is required?
A: The 750X platform requires a minimum of EOS 4.25.0FX-750X.

Q: How large is the chassis for rack planning?
A: The CCS-758 chassis is 10RU in height.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
