Arista CCS-755-25-BND-2 | 750X 5-Slot Modular Chassis Switch, 2x Sup25, 4x 10/25G SFP

Arista CCS-755-25-BND-2 | 750X 5-Slot Modular Chassis Switch, 2x Sup25, 4x 10/25G SFP

Authorised Arista Partner

SKU:CCS-755-25-BND-2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

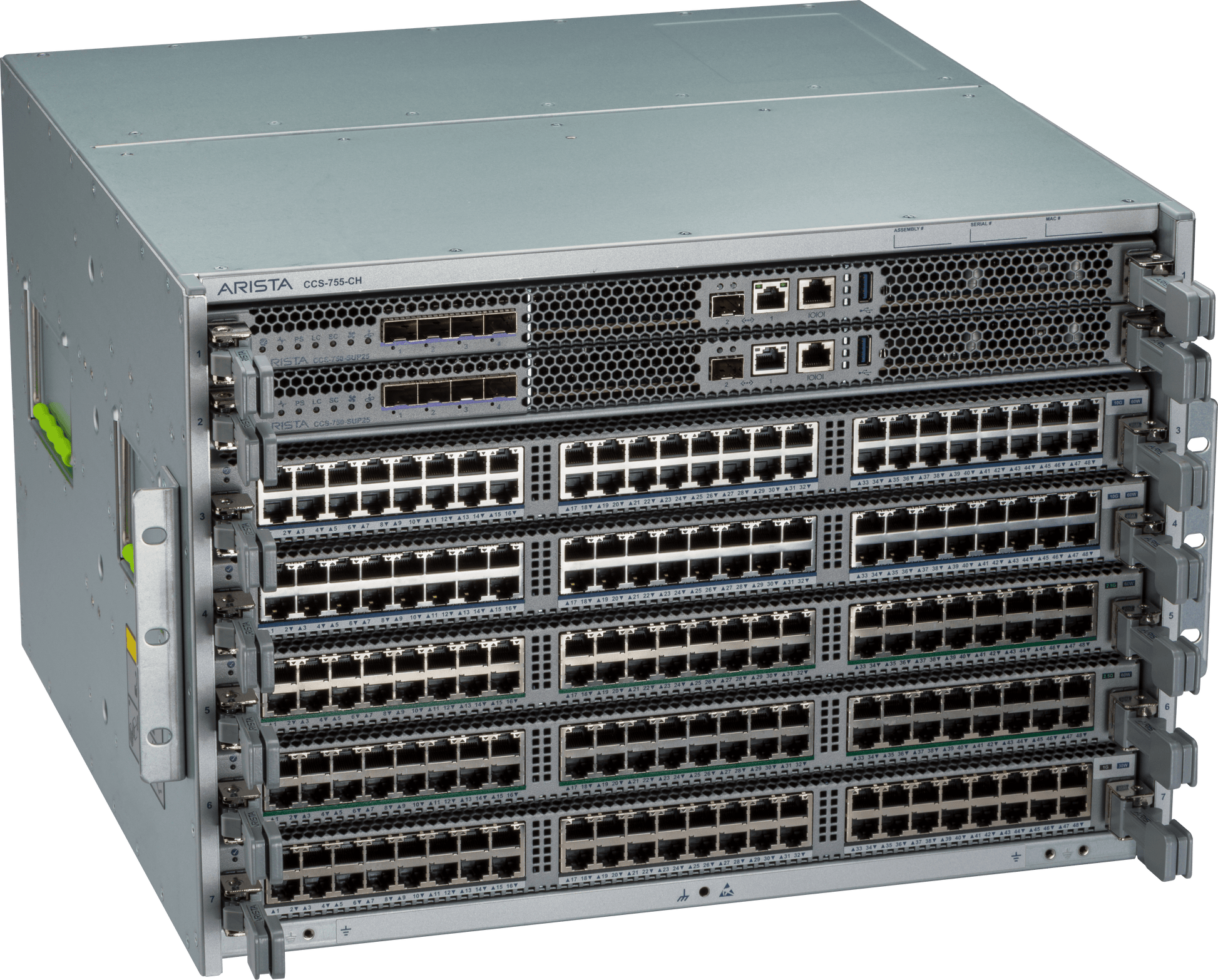

The Arista CCS-755-25-BND-2 is a 5-slot, 7RU modular PoE campus switch chassis bundle from the Arista 750X Series. It ships as a 5-slot chassis with 1 CCS-755-X3-SC switch card and 2 CCS-750-SUP25 supervisor modules, each providing 4 x 10/25G SFP uplinks, giving a dual-supervisor design for resilient campus core and aggregation deployments.

The chassis accepts up to 5 line cards and supports up to 240 PoE ports, including 1G 30W, 2.5G 60W, 10G 60W and 1-10G 90W options. It provides 6 hot-swap power supply slots and 6 hot-swappable fans. The switch card delivers 1.15Tbps of throughput and 850Mpps, and the platform requires a minimum of EOS 4.25.1. Line cards, power supplies and licences are ordered separately.

Features

- Centralised switch card with separate supervisor modules for the control and management plane
- Dual supervisors with all uplinks active and Smart System Upgrade (SSU)
- 802.1AE MACsec encryption on all line card ports and supervisor uplinks
- Up to 90W 802.3bt PoE with cognitive power management
- Line cards support 10Mbps to 10G interfaces
- CloudVision management, secure Zero Touch Provisioning and LANZ microburst detection
- L2/L3 routing, VRF, VXLAN and EVPN support (licence dependent)

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 7RU 5-slot modular chassis (CCS-755-CH)
- 2 supervisor slots, 5 line card slots
- 2 x CCS-750-SUP25 supervisor modules, 4 x SFP 25G uplinks each (1G, 10G, 25G speeds supported)
- Supervisor: quad-core x86 processor, 16GB system memory, 120GB storage, 100Gbps uplink bandwidth
- CCS-755-X3-SC switch card: 1.15Tbps throughput, 850Mpps, 1+1 Active/Standby redundancy
- Up to 240 PoE ports per chassis: 1G 30W, 2.5G 60W, 10G 60W or 1/2.5/5/10G 90W
- 6 hot-swap power supply slots and 6 hot-swappable fans
- Dimensions (HxWxD): 30.5 x 44.2 x 41.2 cm, empty weight 24.8 kg
- Operating temperature 0 to 40 C, operating altitude up to 3,000 m
- Minimum EOS 4.25.1, EOS licence group LIC-MOD-G, CloudVision licence group MOD-G

FAQs

Q: What is included in the CCS-755-25-BND-2 bundle?
A: The bundle includes the 5-slot 750X chassis, a CCS-755-X3-SC switch card and two CCS-750-SUP25 supervisor modules. Line cards, power supplies and licences are ordered separately.

Q: How many PoE ports can this chassis support?
A: With line cards fitted in all 5 slots, the chassis supports up to 240 PoE ports. Port options include 1G 30W, 2.5G 60W, 10G 60W and 1/2.5/5/10G 90W.

Q: What uplinks do the Sup25 supervisor modules provide?
A: Each CCS-750-SUP25 provides 4 x SFP 25G uplink ports supporting 1G, 10G and 25G speeds, for 100Gbps of uplink bandwidth per supervisor.

Q: Does this chassis support supervisor redundancy?
A: Yes. It has two supervisor slots, and with dual supervisors all uplinks remain active. Smart System Upgrade (SSU) is supported.

Q: What EOS version is required?
A: The platform requires a minimum of EOS 4.25.1. The EOS licence group is LIC-MOD-G and the CloudVision licence group is MOD-G.

Q: How many power supplies and fans does the chassis have?
A: The chassis provides 6 hot-swap power supply slots and 6 hot-swappable fans. Power supplies are ordered separately.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
